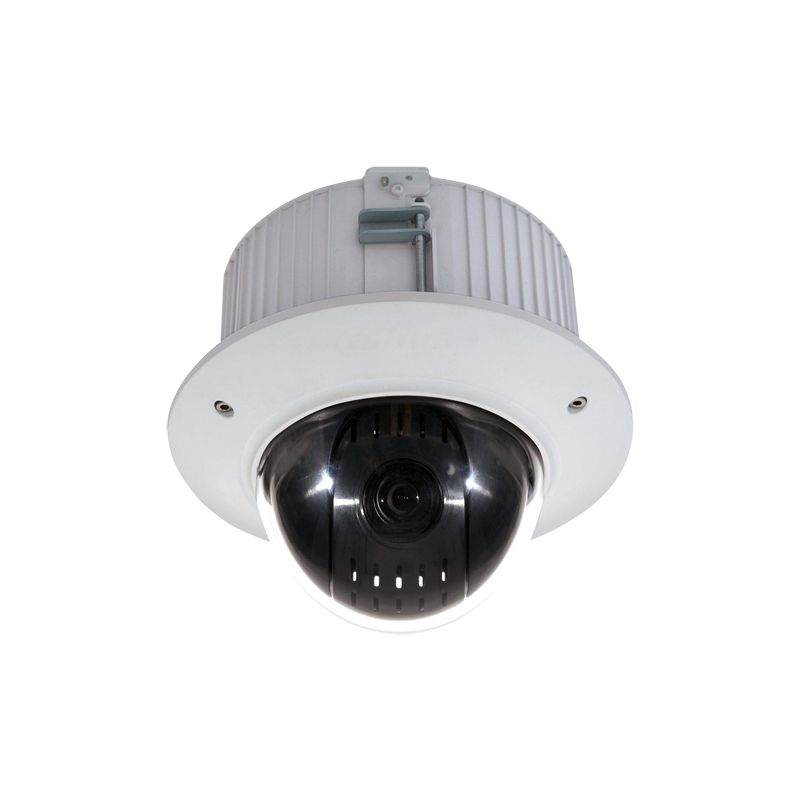

X-Security XS-IPSD72C12-2 - X-Security PTZ 2 Megapixel IP Camera, 1/2.7”…
search
  • X-Security XS-IPSD72C12-2 - X-Security PTZ 2 Megapixel IP Camera, 1/2.7”…

X-Security XS-IPSD72C12-2 - 2 MP X-Security PTZ IP Camera, 1/2.7” Progressive…

2 MP X-Security PTZ IP Camera - 1/2.7” Progressive Scan CMOS - Compression H.264+ / H.264 / MJPEG - 5.1~61.2mm (12X) Vari-focal lens - WDR | PoE+ 802.3at - Audio / Alarms / SmartDetection
Reference XS-IPSD72C12-2
Brand X-Security
Quantity

Free shipping

You might also like

  • X-Security
  • PTZ IP Camera
  • High speed 300º/segundo
  • 12X Optical zoom
  • 1/2.7” Progressive Scan CMOS
  • 2 Megapixel (1920x1080)
  • 5.1~61.2 mm Varifocal lens
  • 0.05 Lux/F1.6 (Colour), 0.005 Lux/F1.6 (B&W)
  • Compression H.264+/H.264/MJPEG
  • RJ-45 10/100 BaseT
  • PoE+ 802.3at
  • Audio
  • IR Cut
  • WDR
  • Alarms
  • SD card recording
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible
  • Ceiling installation (recessed)

Features

  • 2 MP X-Security PTZ IP Camera
  • 1/2.7” Progressive Scan CMOS
  • Compression H.264+ / H.264 / MJPEG
  • 5.1~61.2mm (12X) Vari-focal lens
  • WDR | PoE+ 802.3at
  • Audio / Alarms / SmartDetection

Specs

Brand X-Security
Image sensor 1/2.7” Progressive Scan CMOS
Resolution

1080p(1920x1080), 720p(1280x720), D1(704x576), CIF(352x288)
Compression H.264+ / H.264 / MJPEG
Main Stream rate 1080p (1~25FPS) / 720p(1~50FPS)
Extra Stream rate 2º: D1/CIF (1 ~ 25 FPS), 3º: 720p/D1/CIF (1 ~ 25 FPS)
Bitrate 448 Kbps ~ 8192 Kbps
Lens 5.1 ~ 61.2 mm (Optical Zoom 12X) Auto Focus
Digital zoom 16 X
Image improvements WDR (120dB), 3DNR, HLC, BLC, AGC, Privacy Mask, Motion Detection
Intelligent detection Tripwire, Perimeter, Lost/Abandoned object
Minimum illumination 0.05 Lux (colour) / 0.005 Lux (B/N)
Day / Night Removable mechanical ICR filter
Network interface Ethernet 10/100 BaseT
Remote access WEB interface, CMS software, mobile application and NVR
Memory Slot for Micro SD card (Max 128 GB)
Pan/Tilt Range Horizontal: 0°~360°, Vertical: -2°~90°, Auto flip 180°
Manual speed Horizontal: 0.1°~300° /s, Vertical: 0.1°~1200° /s
Speed between Presets Horizontal: 300° /s, Vertical: 200° /s
Preset positions 300, 5 auto pattern, 8 auto tour, auto pan, 5 auto scan
Communication DH-SD, ONVIF Compatible
Alarms 2 inputs / 1 relay NO/NC
Audio 1 input (Line In) / 1 output (Line Out)
Power AC 24 V / 1.5 A , PoE+ IEEE802.3at
Degree of protection Interior, Anti-vandalism IK10
Temp. operation -20º C ~ +60º C
Dimensions 158 mm (H) x 198 (Ø) mm
Weight 2300 g

Package content

  • IP motorised dome camera
  • Adapter AC/DC 24 V / 1.5 A
  • CD with software
  • User instructions
  • Installation template
  • Seal to RJ45

Data sheet

Weight
2300 g
2300 g
Power
AC 24 V / 1.5 A, PoE+ IEEE802.3at
Resolution
1080P(1920x1080), 720P(1280x720), D1(704x576), CIF(352x288)
Temp. operation
-20º C ~ +60º C
Degree of protection
Interior, Anti-vandalism IK10
Dimensions
158 mm (H) x 198 (Ø) mm
Transfer Rate
448 Kbps ~ 8192 Kbps
Power supply
AC 24 V / 1.5 A, PoE+ IEEE802.3at
Communication
DH-SD, ONVIF Compatible
Audio
1 input (Line In) / 1 output (Line Out)
Memory
Slot for Micro SD card (Max 128 GB)
Image sensor
1/2.7” Progressive Scan CMOS
Minimum illumination
0.05 Lux (colour) / 0.005 Lux (B/N)
Lens
5.1 ~ 61.2 mm (Optical Zoom 12X) Auto Focus
Image improvements
WDR (120dB), 3DNR, HLC, BLC, AGC, Privacy Mask, Motion Detection
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~360°, Vertical: -2°~90°, Auto flip 180°
Manual speed
Horizontal: 0.1°~300° /s, Vertical: 0.1°~1200° /s
Preset positions
300, 5 auto pattern, 8 auto tour, auto pan, 5 auto scan
Alarms
2 inputs / 1 relay NO/NC
Remote access
WEB interface, CMS software, mobile application and NVR
Main Stream rate
1080p (1~25FPS) / 720p(1~50FPS)
Extra Stream rate
2º: D1/CIF (1 ~ 25 FPS), 3º: 720p/D1/CIF (1 ~ 25 FPS)
Compression
H.264+ / H.264 / MJPEG
Network interface
Ethernet 10/100 BaseT
Digital zoom
16 X
Speed between Presets
Horizontal: 300° /s, Vertical: 200° /s
Intelligent detection
Tripwire, Perimeter, Lost/Abandoned object
