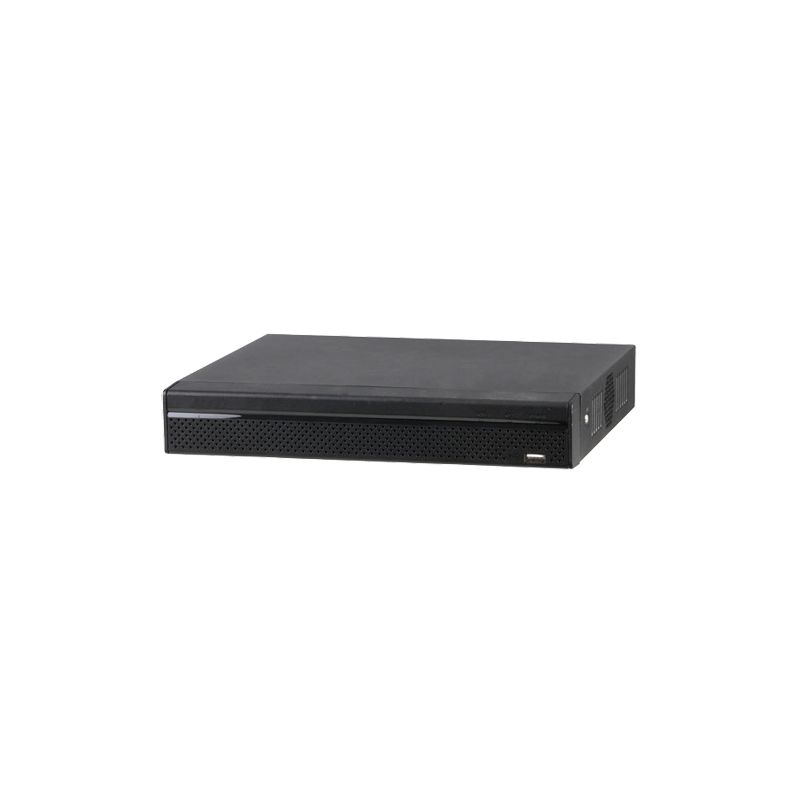

X-Security XS-NVR3216-4K - X-Security NVR for IP cameras, Maximum resolution 8…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

X-Security NVR for IP cameras - Maximum resolution 8 Megapixel - Compression H.265 / H.264 - 16 CH IP - Outputs 4K HDMI & VGA - WEB, DSS/PSS, Smartphone and NVR

Reference XS-NVR3216-4K

Brand X-Security

Description
Product Details

X-Security
NVR for IP cameras
16 CH
200 Mbps bandwidth supported
Maximum resolution 8 Megapixel
Compression H.265 / H.264
Alarms
VGA and HDMI 4K output
IP Dual Stream Access
Mouse
Space for 2 HDD
WEB, CMS (DSS/PSS), Smartphone and NVR interface
ONVIF Compatible

Features

X-Security NVR for IP cameras
Maximum resolution 8 Megapixel
Compression H.265 / H.264
16 CH IP
Outputs 4K HDMI & VGA
WEB, DSS/PSS, Smartphone and NVR

Specs

Brand	X-SECURITY
Inputs for IP cameras	LAN port up to 16 channels
PoE	No
IP compatible cameras	X-SECURITY (proprietary protocol), HIKVISION, SAFIRE, ONVIF
Video outputs	1 HDMI 4K, 1 VGA
Bidirectional audio	1 input, 1 output, RCA
Video compression format	H.265 / H.264
Display resolution	3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Total bandwidth	200 Mbps
Recording resolution	8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ...
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms	4 Inputs / 2 Relay NO/NC
Recording method	Manual, programmed, motion detection, alarm
Backup	USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA
Internal memory	2 SATA HDD 3.5" of up to 6 TB (not included)
Communication	2xUSB (Mouse & backup) / 1 RJ45 10/100/1000M (Ethernet)
Remote access	Web browser (ActiveX), mobile phone application or PSS software
Power	DC 12 V / 4.0 A
Dimensions	56 (H) x 282 (W) x 375 (D) mm / 1.6 Kg (without HDD)

Package content

X-SECURITY NVR
Mouse
Ethernet Cable
Power supply cable
User instructions
CD with manual and software

Data sheet

Power: DC 12 V / 4.0 A
Dimensions: 56 (H) x 282 (W) x 375 (D) mm / 1.6 Kg (without HDD)
Power supply: DC 12 V / 4.0 A
Communication: 2xUSB (Mouse & backup) / 1 RJ45 10/100/1000M (Ethernet)
Inputs for IP cameras: LAN port up to 16 channels
PoE: No
IP compatible cameras: X-SECURITY (proprietary protocol), HIKVISION, SAFIRE, ONVIF
Bidirectional audio: 1 input, 1 output, RCA
Video compression format: H.265 / H.264
Display resolution: 3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Total bandwidth: 200 Mbps
Simultaneous multifunction: Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms: 4 Inputs / 2 Relay NO/NC
Recording method: Manual, programmed, motion detection, alarm
Internal memory: 2 SATA HDD 3.5\" of up to 6 TB (not included)
Remote access: Web browser (ActiveX), mobile phone application or PSS software
Video outputs: 1 HDMI 4K, 1 VGA
Recording resolution: 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ...
Backup: USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA
