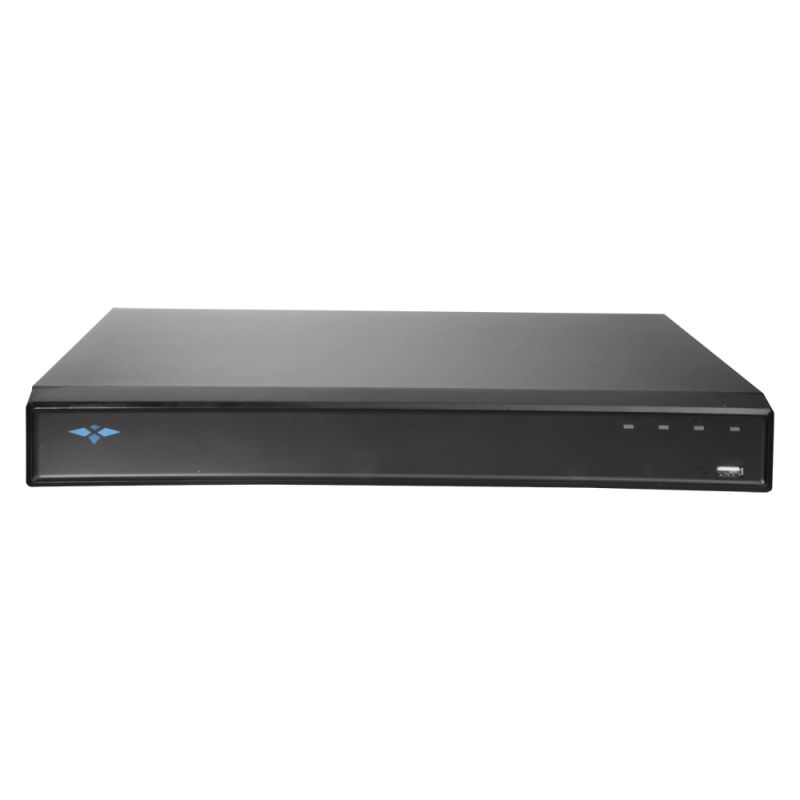

X-Security XS-NVR6216-4K - X-Security NVR for IP cameras, Max. recording…
search
  • X-Security XS-NVR6216-4K - X-Security NVR for IP cameras, Max. recording…

X-Security XS-NVR6216-4K - X-Security NVR for IP cameras, Max. recording…

X-Security NVR for IP cameras - Max. recording resolution 12 Megapixel (4K) - Compression H.265+/H.265/H.264+/H.264/MJPEG - 16 CH IP - Bandwidth 320 Mbps - Space for 2 hard disks
Reference XS-NVR6216-4K
Brand X-Security
Quantity

Free shipping

You might also like

  • X-Security
  • NVR for IP cameras
  • 16 CH
  • 320 Mbps bandwidth supported
  • Maximum resolution 12 Megapixel
  • Compression H.265+/H.265/H.264+/H.264/MJPEG
  • Alarms
  • 1 HDMI output 4K and 1 VGA output
  • IP Dual Stream Access
  • Mouse
  • Space for 2 HDD
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible

Features

  • X-Security NVR for IP cameras
  • Max. recording resolution 12 Megapixel (4K)
  • Compression H.265+/H.265/H.264+/H.264/MJPEG
  • 16 CH IP
  • Bandwidth 320 Mbps
  • Space for 2 hard disks

Specs

BrandX-SECURITY
Inputs for IP camerasLAN port up to 16 channels
PoENo
IP compatible camerasX-SECURITY (proprietary protocol), HIKVISION, SAFIRE, ONVIF
Video outputs1 HDMI 4K, 1 VGA
Bidirectional audio1 input, 1 output, RCA
Video compression formatH.265+ / H.265 / H.264+ / H.264 / MJPEG
Display resolution3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Total bandwidth320 Mbps
Recording resolution12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ...
Simultaneous multifunctionPentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms4 Inputs / 2 Relay NO/NC
Recording methodManual, programmed, motion detection, alarm
BackupUSB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA
Internal memory2 SATA HDD 3.5" of up to 8 TB (not included)
CommunicationRS485 (PTZ) / RS232 / 1xUSB 3.0 / 1xUSB 2.0 / 1 RJ45 10/100/1000M (Ethernet)
Remote accessWeb browser (ActiveX), mobile phone application or PSS software
Power12VDC / 9.5W
Dimensions53 (H) x 375 (W) x 328 (D) mm / 2.6 Kg (without HDD)

Package content

  • X-SECURITY NVR
  • Mouse
  • Power supply cable
  • User instructions
  • CD with manual and software

Data sheet

Power
12VDC / 9.5W
Dimensions
53 (H) x 375 (W) x 328 (D) mm / 2.6 Kg (without HDD)
Power supply
12VDC / 9.5W
Communication
RS485 (PTZ) / RS232 / 1xUSB 3.0 / 1xUSB 2.0 / 1 RJ45 10/100/1000M (Ethernet)
Inputs for IP cameras
LAN port up to 16 channels
PoE
No
IP compatible cameras
X-SECURITY (proprietary protocol), HIKVISION, SAFIRE, ONVIF
Bidirectional audio
1 input, 1 output, RCA
Video compression format
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Display resolution
3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Total bandwidth
320 Mbps
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
4 Inputs / 2 Relay NO/NC
Recording method
Manual, programmed, motion detection, alarm
Internal memory
2 SATA HDD 3.5\" of up to 8 TB (not included)
Remote access
Web browser (ActiveX), mobile phone application or PSS software
Video outputs
1 HDMI 4K, 1 VGA
Recording resolution
12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ...
Backup
USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA
