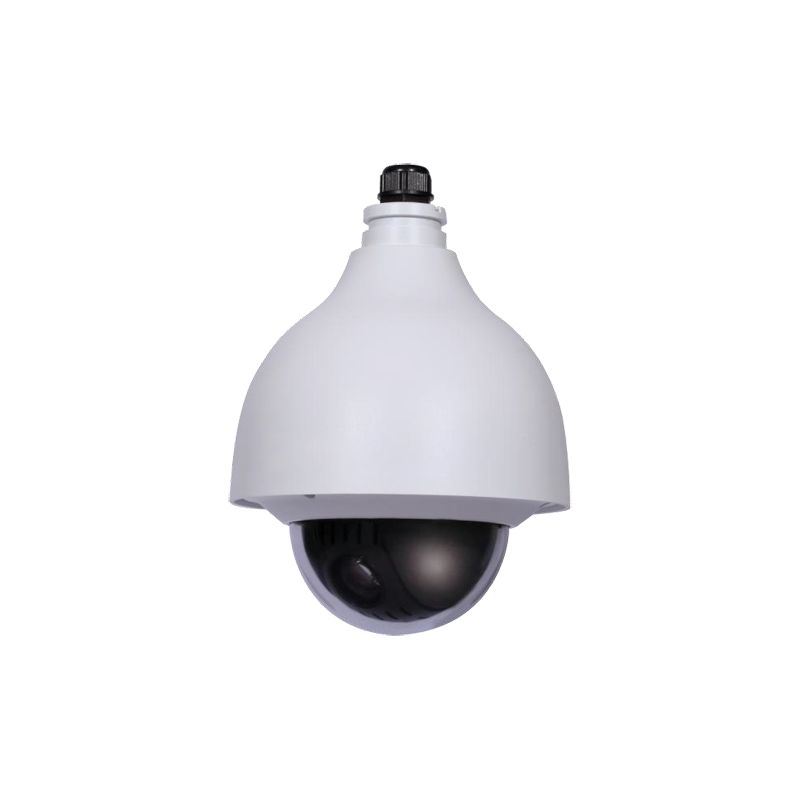

X-Security XS-IPSD7212SAW-2 - X-Security, 2 Megapixel PTZ IP Camera, 1/2.8”…
search
  • X-Security XS-IPSD7212SAW-2 - X-Security, 2 Megapixel PTZ IP Camera, 1/2.8”…

X-Security XS-IPSD7212SAW-2 - , X-Security PTZ IP Camera, 2 MP Sony© Starlight ,…

- X-Security PTZ IP Camera - 2 MP Sony© Starlight - Compression H.265+ - Intelligent IVS functions - PoE+ / Audio / Alarms / - High speed 300º/segundo
Reference XS-IPSD7212SAW-2
Brand X-Security
Quantity

Free shipping

You might also like

  • X-Security
  • PTZ IP Camera
  • High speed 300º/segundo
  • 12X Optical zoom
  • 1/2.8” STARVIS CMOS
  • 2 Megapixel (1920x1080)
  • High sensitivity Starlight
  • 5.1~61.2 mm Varifocal lens
  • 0.005 Lux/F1.6 (Colour), 0.0005 Lux/F1.6 (B&W)
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • Weatherproof IP66, Anti-vandal IK10
  • IR Cut
  • Alarms and audio
  • WDR
  • SD card recording
  • Intelligent IVS functions: Line crossing, intrusion, abandoned object, facial detection
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible
  • Wall bracket PFB300S and thread PFA110 included

Features

  • X-Security PTZ IP Camera
  • 2 MP Sony© Starlight
  • Compression H.265+
  • Intelligent IVS functions
  • PoE+ / Audio / Alarms /
  • High speed 300º/segundo

Specs

Brand X-Security
Image sensor 1/2.8” STARVIS CMOS
Resolution 1080P(1920x1080), 720P(1280x720), D1(704x576), CIF(352x288)
Compression H.265+/H.265/H.264+/H.264 (video), G711a / G771u / PCM (audio)
Main Stream rate 1080P (1~25 FPS) / 720P (1~50 FPS)
Extra Stream rate D1 / CIF (1~25 FPS)
Bitrate 448 Kbps ~ 8 Mbps
Lens Varifocal 5.1 ~ 61.2 mm (Optical Zoom 12X) Auto Iris
Digital zoom 16 X
Image improvements WDR (120dB), Ultra DNR, HLC, BLC, ATW, AGC, Privacy Mask, Motion detection
Intelligent detection Line crossing, intrusion, abandoned object, face detection
Minimum illumination 0.005 Lux (colour) / 0.0005 Lux (B/N)
Day / Night Removable mechanical ICR filter
Network interface Ethernet 10/100 BaseT
Remote access WEB interface, CMS software, mobile application and NVR
Memory Slot for Micro SD card (Max 128 GB)
Pan/Tilt Range Horizontal: 0°~360°, Vertical: -2°~90° auto flip 180°
Manual speed Horizontal: 0.1°~300° /s, Vertical: 0.1°~120° /s
Speed between Presets Horizontal: 300° /s, Vertical: 200° /s
Preset positions 300, 5 auto pattern, 8 auto tour, 5 auto scan
Communication DH-SD, ONVIF Compatible
Alarms 2 inputs / 1 relay NO/NC
Audio 1 input (Line In) / 1 output (Line Out)
Power AC 24 V / 1.5 A , PoE IEEE802.3at
Degree of protection Weatherproof IP66, Anti-vandal IK10
Temp. operation -40º C ~ +60º C
Dimensions 234 mm (H) x 186 (Ø) mm
Weight 2300 g

Package content

  • IP motorised dome camera
  • Wall bracket PFB300S
  • Mount adapter PFA110
  • Adapter AC/DC 24 V / 1.5 A
  • Torx wrench
  • CD with software and instructions
  • User instructions
  • Installation gloves

Data sheet

Weight
2300 g
2300 g
Power
AC 24 V / 1.5 A, PoE IEEE802.3at
Resolution
1080P(1920x1080), 720P(1280x720), D1(704x576), CIF(352x288)
Temp. operation
-40º C ~ +60º C
Degree of protection
Weatherproof IP66, Anti-vandal IK10
Dimensions
234 mm (H) x 186 (Ø) mm
Transfer Rate
448 Kbps ~ 8 Mbps
Power supply
AC 24 V / 1.5 A, PoE IEEE802.3at
Communication
DH-SD, ONVIF Compatible
Audio
1 input (Line In) / 1 output (Line Out)
Memory
Slot for Micro SD card (Max 128 GB)
Image sensor
1/2.8” STARVIS CMOS
Minimum illumination
0.005 Lux (colour) / 0.0005 Lux (B/N)
Lens
Varifocal 5.1 ~ 61.2 mm (Optical Zoom 12X) Auto Iris
Image improvements
WDR (120dB), 3DNR, HLC, BLC, ATW, AGC, Privacy Mask
WDR (120dB), Ultra DNR, HLC, BLC, ATW, AGC, Privacy Mask, Motion detection
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~360°, Vertical: -2°~90° auto flip 180°
Manual speed
Horizontal: 0.1°~300° /s, Vertical: 0.1°~120° /s
Preset positions
300, 5 auto pattern, 8 auto tour, 5 auto scan
Alarms
2 inputs / 1 relay NO/NC
Remote access
WEB interface, CMS software, mobile application and NVR
Main Stream rate
1080P (1~25 FPS) / 720P (1~50 FPS)
Extra Stream rate
D1 / CIF (1~25 FPS)
Compression
H.265+/H.265/H.264+/H.264 (video), G711a / G771u / PCM (audio)
Network interface
Ethernet 10/100 BaseT
Digital zoom
16 X
Speed between Presets
Horizontal: 300° /s, Vertical: 200° /s
Intelligent detection
Line crossing, intrusion, abandoned object, face detection
