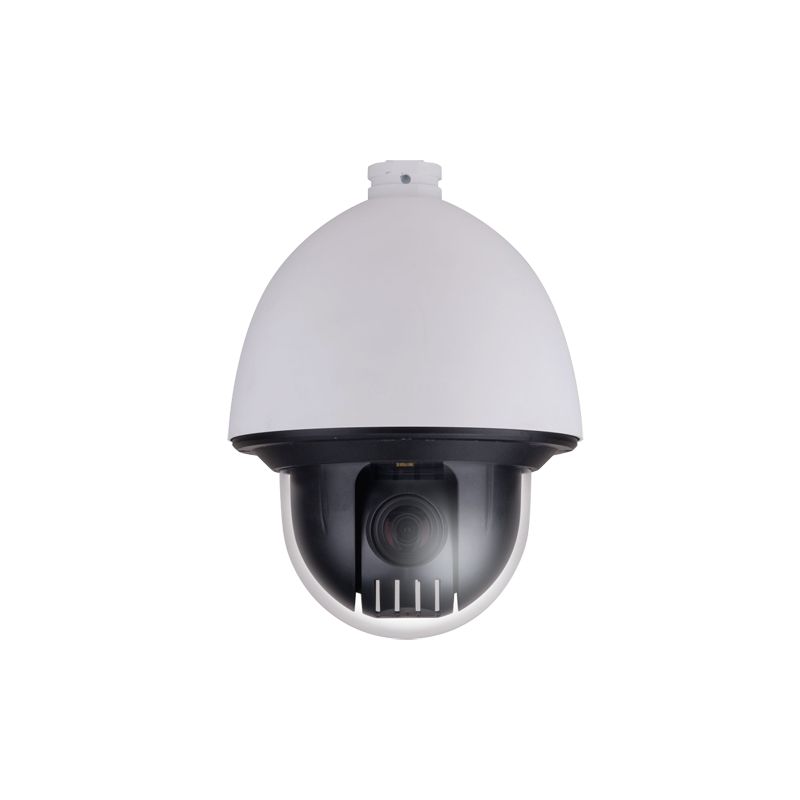

X-Security - 2 Megapixel PTZ IP Camera - 1/2.8” Progressive Scan CMOS - Compression H.265 / H.264 / MJPEG - 4.8-120 mm Varifocal lens - Audio/Alarms/Auto-tracking/SmartDetection
Reference XS-IPSD7325SATW-2
Brand X-Security
Quantity

Free shipping

You might also like

  • X-Security
  • IP camera
  • High speed 500º/segundo
  • 25X Optical zoom
  • 1/2.8” CMOS Progressive Scan Starlight
  • 2 Megapixel (1920x1080)
  • 4.8~120 mm Varifocal lens
  • 0.005 Lux/F1.6 (Colour), 0.0005 Lux/F1.6 (B&W)
  • Compression H.265/H.264/MJPEG
  • RJ-45 10/100 BaseT
  • PoE+ 802.3at
  • Weatherproof IP67
  • Audio
  • IR Cut
  • Alarms
  • SD card recording
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible
  • Bracket PFB300S for wall and thread PFA110 included

Features

  • X-Security
  • 2 Megapixel PTZ IP Camera
  • 1/2.8” Progressive Scan CMOS
  • Compression H.265 / H.264 / MJPEG
  • 4.8-120 mm Varifocal lens
  • Audio/Alarms/Auto-tracking/SmartDetection

Specs

Brand X-Security
Image sensor 1/2.8” Sony Starvis CMOS Starlight
Resolution 1080p(1920x1080), 720p(1280x720), 1,3Mpx (1280x960), D1(704x576), CIF(352x288)
Compression H.265 / H264 / MJPEG (video), G711a / G771u / AAC (audio)
Main Stream rate 1080p / 720p / 1,3 Mpx (1~50fps)
Extra Stream rate 2º:D1/CIF, 3º:1080p/720p/1,3Mpx/D1/CIF (1 ~ 25 FPS)
Bitrate 448 Kbps ~ 8 Mbps
Lens Varifocal 4.8 ~ 120 mm (Optical zoom 25X) Auto Iris, Auto Focus
Digital zoom 16 X
Image improvements WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask
Minimum illumination 0.005 Lux (colour) / 0.0005 Lux (B/N)
Day / Night Removable mechanical ICR filter
Network interface Ethernet 10/100 BaseT
Remote access WEB interface, CMS software, mobile application and NVR
Memory Slot for Micro SD card (Max 128 GB)
Pan/Tilt Range Horizontal: 0°~360°, Vertical: 0°~90° auto flip 180°
Manual speed Horizontal: 0.1°~350° /s, Vertical: 0.1°~250° /s
Speed between Presets Horizontal: 500° /s, Vertical: 500° /s
Preset positions 300, 5 auto pattern, 8 auto tour, 5 auto scan
Auto Tracking Simple, multiple and panoramic scene
IVS functions Tripwire, area intrusion, perimeter protection, abandoned/lost object detection, illegal stopping, rapid movements, etc..
Communication DH-SD, ONVIF Compatible
Alarms 2 inputs / 1 relay NO/NC
Audio 1 input (Line In) / 1 output (Line Out)
Power 24VAC / 1,5A, PoE+(802.3at)
Degree of protection Weatherproof IP67, Anti-vandal IK10
Temp. operation -40º C ~ +60º C
Dimensions 253 mm (H) x 186 (Ø) mm
Weight 2500 g

Package content

  • IP motorised dome camera
  • AC24V / 1.5A power adapter
  • CD with software and instructions
  • User instructions
  • Wall mount bracket PFB300S
  • Bracket thread PFA110

Data sheet

Weight
2500 g
2500 g
Power
24VAC / 1,5A, PoE+(802.3at)
Resolution
1080p(1920x1080), 720p(1280x720), 1,3Mpx (1280x960), D1(704x576), CIF(352x288)
Temp. operation
-40º C ~ +60º C
Degree of protection
Weatherproof IP67, Anti-vandal IK10
Dimensions
253 mm (H) x 186 (Ø) mm
Transfer Rate
448 Kbps ~ 8 Mbps
Power supply
24VAC / 1,5A, PoE+(802.3at)
Communication
DH-SD, ONVIF Compatible
Audio
1 input (Line In) / 1 output (Line Out)
Memory
Slot for Micro SD card (Max 128 GB)
Image sensor
1/2.8” Sony Starvis CMOS Starlight
Minimum illumination
0.005 Lux (colour) / 0.0005 Lux (B/N)
Lens
Varifocal 4.8 ~ 120 mm (Optical zoom 25X) Auto Iris, Auto Focus
Image improvements
WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~360°, Vertical: 0°~90° auto flip 180°
Manual speed
Horizontal: 0.1°~350° /s, Vertical: 0.1°~250° /s
Preset positions
300, 5 auto pattern, 8 auto tour, 5 auto scan
Alarms
2 inputs / 1 relay NO/NC
Remote access
WEB interface, CMS software, mobile application and NVR
Main Stream rate
1080p / 720p / 1,3 Mpx (1~50fps)
Extra Stream rate
2º:D1/CIF, 3º:1080p/720p/1,3Mpx/D1/CIF (1 ~ 25 FPS)
Compression
H.265 / H264 / MJPEG (video), G711a / G771u / AAC (audio)
Network interface
Ethernet 10/100 BaseT
Digital zoom
16 X
Speed between Presets
Horizontal: 500° /s, Vertical: 500° /s
Auto Tracking
Simple, multiple and panoramic scene
IVS functions
Tripwire, area intrusion, perimeter protection, abandoned/lost object detection, illegal stopping, rapid movements, etc..
