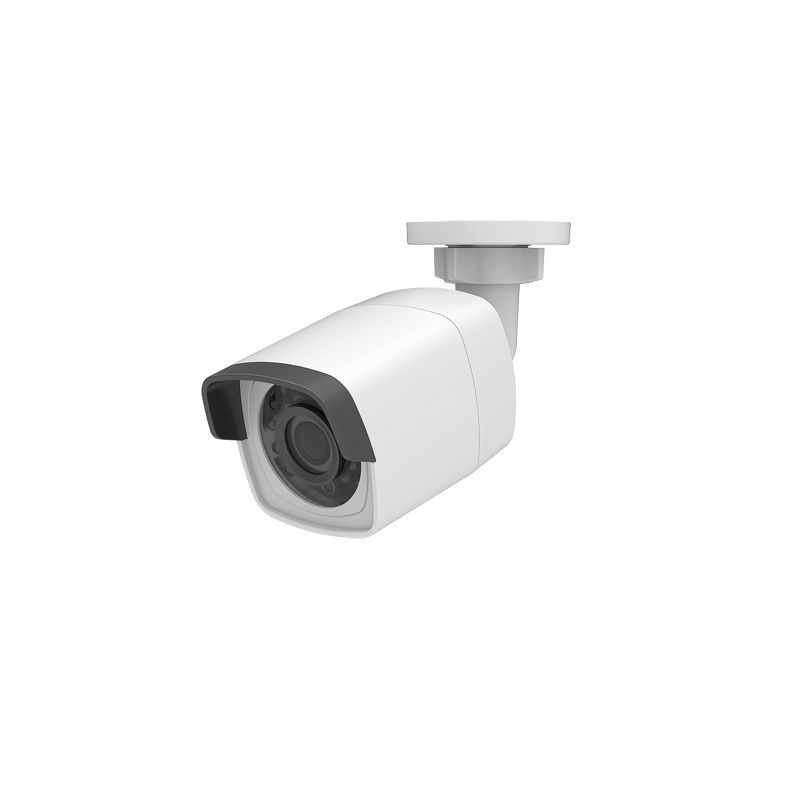

Safire SF-IPCV220-2WI -

Data sheet

Weight

500 g

Temp. operation

-30º C ~ +60º C

Degree of protection

Weatherproof IP66

Dimensions

140 mm (D) x 61 (Ø) mm

Transfer Rate

32 Kbps ~ 16 Mbps

Power supply

DC 12 V / 580 mA, PoE IEEE802.3af

Memory

MicroSD slot (up to 64GB)

Image sensor

1/2.8\" Progressive Scan CMOS

Minimum illumination

0.028 Lux @F2.0, AGC ON, 0 Lux with IR

Lens

4 mm (85º)

Maximum resolution

2.0 Megapixel (1920x1080)

Infrared lighting

0 Lux / 30 LED\'s (30 m)

Image improvements

ROI, BLC, HLC, DWDR, AGC, 3D-NR, Privacy Masking

Day / Night

Removable mechanical ICR filter

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Main Stream rate

2.0M/1.3M/1.0M (1 ~ 25 FPS)

Extra Stream rate

D1/CIF (1 ~ 25 FPS)

Compression

H264/ MJPEG

Network interface

Ethernet 10/100 BaseT, Wi-Fi (802.11b/g/n)

Interoperability

ONVIF, PSIA, CGI
