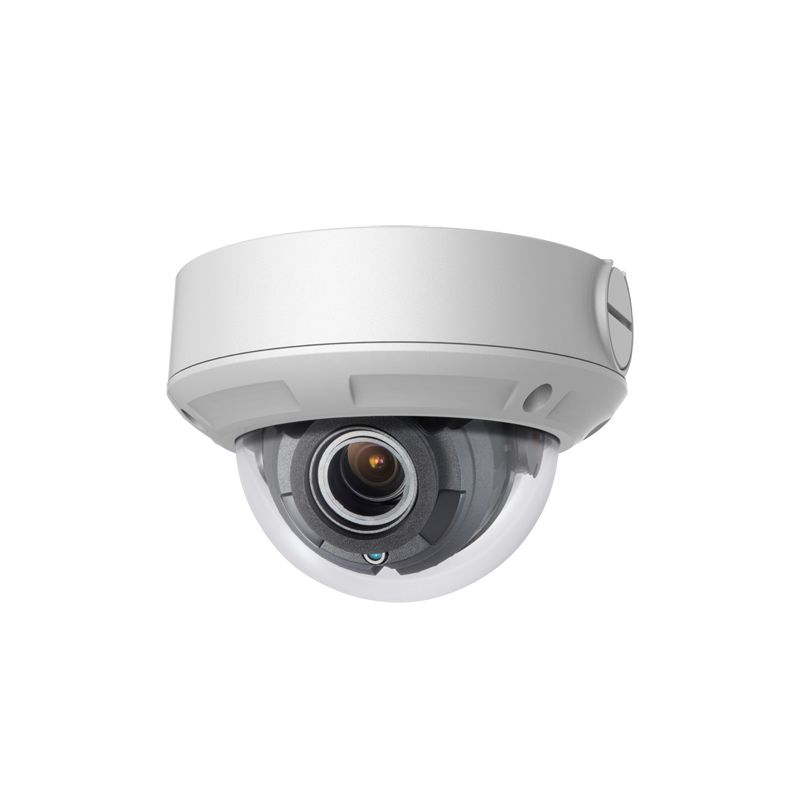

Safire SF-IPDM834ZWAH-4 - 4 Megapixel IP Dome Camera, 1/3\" Progressive Scan…

4 Megapixel IP Dome Camera - 1/3" Progressive Scan CMOS - Compression H.265+ / H.265 - 2.8~12mm motorised auto-focus lens - IR Matrix range 30 m - IP67/IK10 | WDR | Audio | Alarms
Reference SF-IPDM834ZWAH-4
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • IP Dome Camera
  • 1/3" Progressive Scan CMOS
  • 4 Megapixel (2560x1440)
  • 2.8~12mm motorised auto-focus lens
  • WDR
  • Compression H.265+/H.265/H.264+/H.264
  • IR Cut
  • 0 Lux
  • IR Range 30 m
  • Audio
  • Alarm
  • RJ-45 10/100 BaseT
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • PoE IEEE802.3af
  • Waterproof IP67 / IK10

Features

  • 4 Megapixel IP Dome Camera
  • 1/3" Progressive Scan CMOS
  • Compression H.265+ / H.265
  • 2.8~12mm motorised auto-focus lens
  • IR Matrix range 30 m
  • IP67/IK10 | WDR | Audio | Alarms

Specs

BrandSAFIRE
Image sensor1/3" Progressive Scan CMOS
Maximum resolution4 Megapixel (2560x1440)
Minimum illumination0.01 Lux / F1.2
Infrared lighting0 Lux / Matrix LED IR (30 m)
LensMotorized varifocal Autofocus 2.8 ~ 12 mm (H: 98° ~ 28°)
CompressionH.265+ / H.265 / H.264+ / H.264
Video Bit Rate32 Kbps~8Mbps
Main Stream rate4Mpx (20 FPS) / 3Mpx / 1080p / 720p (25 FPS)
Extra Stream rate640×480 / 640×360 / 320x240 (1 ~ 25 FPS)
Image improvementsWDR, BLC, 3D-DNR, MD, Privacy Mask, ROI
Day / NightAuto / Programmable / Colour / BW (Black and White)
Internal memoryMicroSD card, Max. 128 GB
Video output1 BNC output
Network interfaceEthernet 10/100 BaseT
Alarms1 in / 1 relay
Audio1 in / 1 out
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
InteroperabilityONVIF, PSIA, CGI, ISAPI
PowerDC 12 V / 800 mA, PoE IEEE802.3af
Degree of protectionWaterproof IP67 / Anti-vandal IK10
MaterialMetal and Plastic
Temp. operation-30º C ~ +50º C
Dimensions99.9 mm (h) x 141 mm (ø) mm
Base dimensions116 (Ø) mm
Weight820 g

Package content

  • Safire IP Dome Camera
  • 3 plugs and 3 screws for mounting
  • User instructions
  • Allen wrench
  • Installation template

Data sheet

Weight
820 g
820 g
Power
DC 12 V / 800 mA, PoE IEEE802.3af
Temp. operation
-30º C ~ +50º C
Degree of protection
Waterproof IP67 / Anti-vandal IK10
Weatherproof IP67
Dimensions
99.9 mm (Al) x 141 mm (Ø ) mm
99.9 mm (h) x 141 mm (ø) mm
Transfer Rate
32 Kbps ~ 16 Mbps
Power supply
DC 12 V / 800 mA, PoE IEEE802.3af
Material
Metal and Plastic
Video output
1 BNC output
Audio
1 In / 1 Out
Image sensor
1/3\" Progressive Scan CMOS
Minimum illumination
0.01 Lux / F1.2
Lens
Motorised 2.8~12 mm
Motorized varifocal Autofocus 2.8 ~ 12 mm (H: 98° ~ 28°)
Maximum resolution
4 Megapixel (2560x1440)
Infrared lighting
0 Lux / Matrix LED IR (30 m)
Image improvements
WDR, BLC, 3D-DNR, MD, Privacy Mask, ROI
WDR, BLC, 3D-NR, MD, Privacy Mask, ROI
Day / Night
Auto / Programmable / Colour / BW (Black and White)
Base dimensions
116 (Ø) mm
Alarms
1 in / 1 relay
Internal memory
MicroSD card, Max. 128 GB
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
4Mpx (20 FPS) / 3Mpx / 1080p / 720p (25 FPS)
Extra Stream rate
640×480 / 640×360 / 320x240 (1 ~ 25 FPS)
Compression
H.265+ / H.265 / H.264+ / H.264
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF, PSIA, CGI, ISAPI
Video Bit Rate
32 Kbps~8Mbps
Alimentación
DC 12 V / 525 mA, 6.3 w máx
DC 12 V / 525 mA, 6.3 w máx
DC 12 V / 525 mA, 6.3 w máx
DC 12 V / 525 mA, 6.3 w máx
DC 12 V / 525 mA, 6.3 w máx
