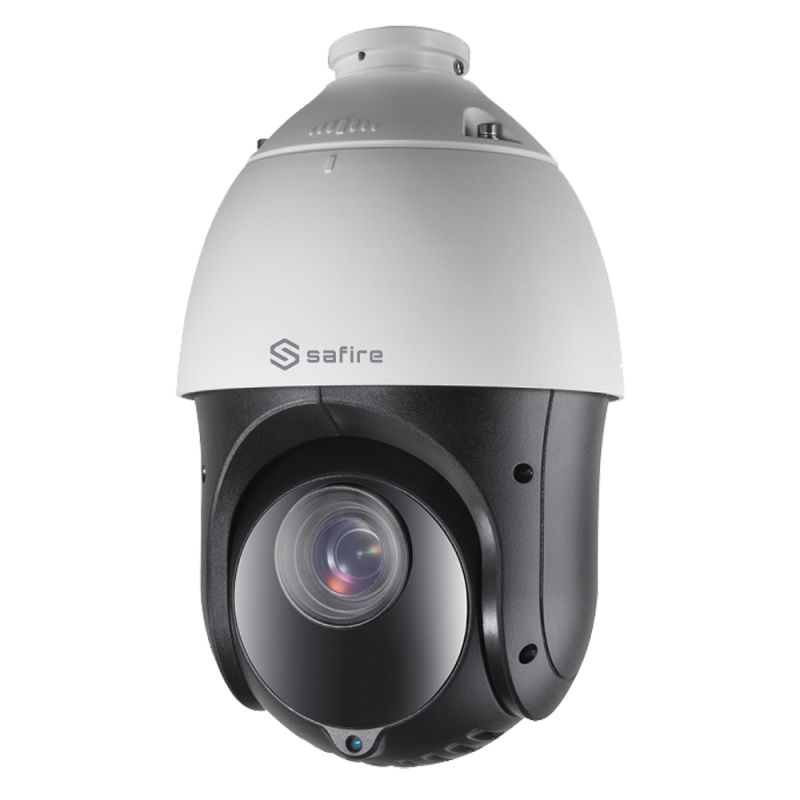

Safire SF-IPSD6025UIWH-4 -

Data sheet

Power

DC 12V / 1.5A, PoE+ IEEE802.3at

Resolution

4 Megapixel (2560x1440)

Temp. operation

-30º C ~ +65º C

Degree of protection

IP66 / Surges 4000V

Dimensions (without support)

290 mm (H) x 165 (Ø) mm

Power supply

DC 12V / 1.5A, PoE+ IEEE802.3at

Audio

1 input (Line In) / 1 output (Line Out)

Image sensor

1/2.5“ Progressive Scan CMOS

Minimum illumination

0.005 Lux (color) / 0.001 Lux (B/N)/ LEDs IR (100 m)

Lens

Varifocal 4.8~120 mm (Optical Zoom 25X)

Image improvements

BLC, HLC, DWDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI

Day / Night

Removable mechanical ICR filter

Pan/Tilt Range

Horizontal: 0°~80°, Vertical: -15°~90° auto flip

Manual speed

Horizontal: 0.1° ~ 80°/sec, Vertical: 0.1° ~80°/s

Preset positions

300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan

Alarms

No

Internal memory

MicroSD card, Max 256 GB

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Compression

H.265+/ H.265 / H.264+/ H.264

Network interface

Ethernet 10 / 100 BaseT

Video analysis

VCA: Tripwire | Area intrusion | Audio exception

Interoperability

ONVIF, PSIA, CGI

Digital zoom

16X

Electronic shutter

1/1s~1/10,000s

Speed between Presets

Horizontal: 80° /s, Vertical: 80° /s

PTZ Control

Through network access

Weight (without support)

2000 g

Dimensions (without bracket)

290 mm (H) x 165 (Ø) mm

Weight (without bracket)

2000 g
