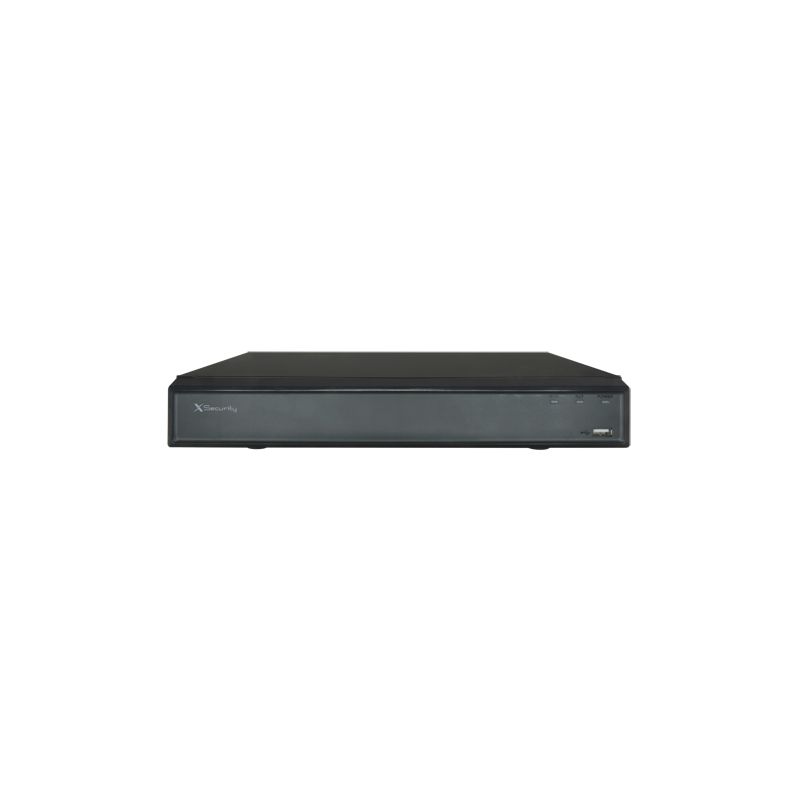

X-Security XS-XVR6116A-H -

Data sheet

Power

DC 12V / 2A

Power supply

DC 12V / 2A

Dimensions / Weight

255 (H) x 325 (W) x 55 (D) mm / 2.4 Kg

Communication

RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)

Video format

HDTVI / HDCVI / AHD / CVBS / IP

Video inputs

16 Channels BNC (HDTVI / HDCVI / AHD / CVBS)

Bidirectional audio

Reusing the audio input/output

Display resolution

1920x1080, 1280x1024, 1280x720

Total bandwidth

96 Mbps

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Recording method

Manual, programmed, motion detection, alarm

Internal memory

1 HDD SATA 3.5\" of up to 10TB (not included)

Remote access

Web browser (ActiveX), mobile phone application or PSS software

Video outputs

1 HDMI 1080p, 1 VGA

Video / audio compression

H.265+/H.265/H.264+/H.264 / G.711u

Main Stream coding

4Mpx-N/1080p(15 FPS) /720p (30 FPS)

Hybrid configuration

Up to 24 IP Channels (6Mpx), replacing all the BNC channels

Audio inputs

16 Channel RCA

Audio outputs

2 Channel RCA

Recording resolution

4 Mpx-N,1080p, 720p, 960H, D1, CIF

Extra Stream coding

D1 / CIF / QCIF (1~30 FPS)

Backup

USB (Memory, HDD, CD-RW, DVR-RW) / Network

Video analysis

IVS: Tripwire | Area intrusion | Abandoned object | Face detection

Intelligent functions

Function P2P | POS function | Alarm / audio / update by Coaxial (All-over-Coax)

Alarms IN/OUT

16/3
