Safire SF-IPDM855ZHW-4 - Safire 4 Megapixel IP Camera, 1/3" Progressive Scan…
search
  • Safire SF-IPDM855ZHW-4 - Safire 4 Megapixel IP Camera, 1/3" Progressive Scan…

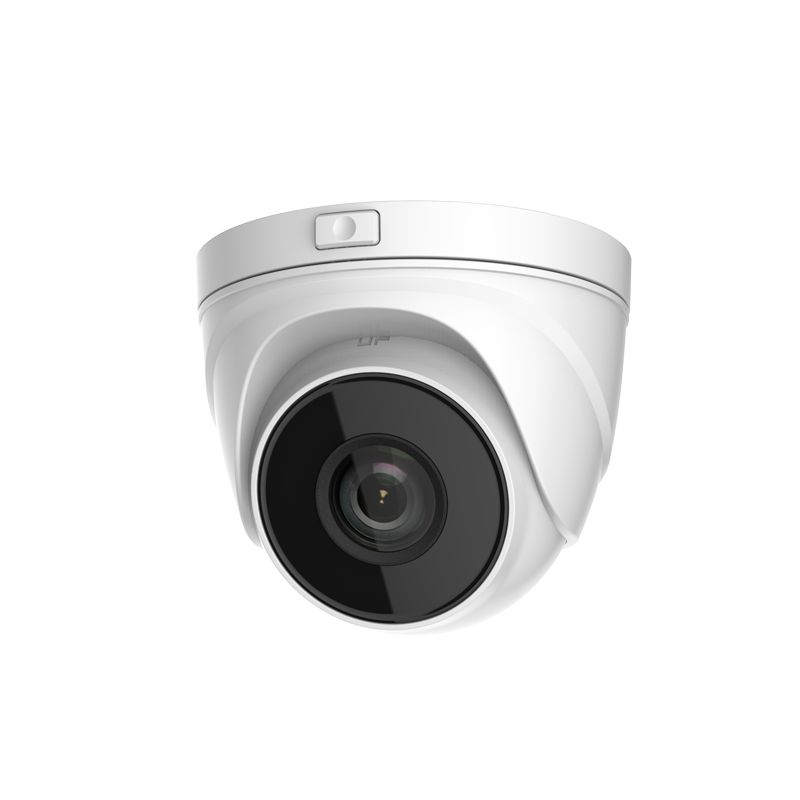

Safire SF-IPDM855ZHW-4 - 4 Megapixel IP Dome Camera, 1/3\" Progressive Scan…

4 Megapixel IP Dome Camera - 1/3" Progressive Scan CMOS - Compression H.264+ / H.264 - 2.8~12mm motorised lens - IR Matrix range 30 m - IP67 | WDR
Reference SF-IPDM855ZHW-4
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • IP Dome Camera
  • 1/3" Progressive Scan CMOS
  • 4 Megapixel (2688x1520)
  • 2.8~12mm motorised lens
  • WDR
  • Compression H.264+/H.264
  • IR Cut
  • 0 Lux
  • IR Range 30 m
  • RJ-45 10/100 BaseT
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • PoE IEEE802.3af
  • Weatherproof IP67

Features

  • 4 Megapixel IP Dome Camera
  • 1/3" Progressive Scan CMOS
  • Compression H.264+ / H.264
  • 2.8~12mm motorised lens
  • IR Matrix range 30 m
  • IP67 | WDR

Specs

BrandSAFIRE
Image sensor1/3" Progressive Scan CMOS
Maximum resolution4 Megapixel (2688x1520)
Minimum illumination0.01 Lux / F1.2
Infrared lighting0 Lux / Matrix LED IR (30 m)
LensMotorized 2.8~12 mm (H): 98°~30°)
CompressionH.264 + / H.264 / MJPEG
Video Bit Rate32 Kbps~16Mbps
Main Stream rate4Mpx / 3Mpx (20 FPS) / 1080p / 720p (25 FPS)
Extra Stream rate640×480 / 352×288 (1 ~ 25 FPS)
Image improvementsWDR, BLC, 3D-NR, MD, Privacy Mask, ROI
Day / NightAuto / Programmable / Colour / BW (Black and White)
Internal memoryMicroSD card, Max. 128 GB (Inside)
Network interfaceEthernet 10/100 BaseT
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
InteroperabilityONVIF, PSIA, CGI, ISAPI
PowerDC 12 V / 700 mA, PoE IEEE802.3af
Degree of protectionWeatherproof IP67
MaterialMetal and Plastic
Temp. operation-30º C ~ +60º C
Dimensions102.4 (h) x 130.5 (ф) mm
Base dimensions112.4 (ф) mm
Weight485 g

Package content

  • Safire IP Dome Camera
  • 4 plugs and 4 screws for mounting
  • User instructions
  • Allen wrench
  • Installation template

Data sheet

Weight
485 g
485 g
Power
DC 12 V / 700 mA, PoE IEEE802.3af
Temp. operation
-30º C ~ +50º C
-30º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
102.4 (h) x 130.5 (ф) mm
Transfer Rate
32 Kbps ~ 16 Mbps
Power supply
DC 12 V / 700 mA, PoE IEEE802.3af
Material
Metal and Plastic
Video output
1 BNC output
Audio
1 In / 1 Out
Image sensor
1/3\" Progressive Scan CMOS
Minimum illumination
0.01 Lux / F1.2
Lens
Motorised 2.8~12 mm
Motorized 2.8~12 mm (H): 98°~30°)
Maximum resolution
4 Megapixel (2688x1520)
Infrared lighting
0 Lux / Matrix LED IR (30 m)
Image improvements
WDR, BLC, 3D-NR, MD, Privacy Mask, ROI
Day / Night
Auto / Programmable / Colour / BW (Black and White)
Base dimensions
112.4 (ф) mm
Alarms
1 in / 1 relay
Internal memory
MicroSD card, Max. 128 GB
MicroSD card, Max. 128 GB (Inside)
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
4Mpx / 3Mpx (20 FPS) / 1080p / 720p (25 FPS)
Extra Stream rate
640×480 / 352×288 (1 ~ 25 FPS)
Compression
H.264 + / H.264 / MJPEG
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF, PSIA, CGI, ISAPI
Video Bit Rate
32 Kbps~16Mbps
Alimentación
DC 12 V / 360 mA, 4.3 w máx
DC 12 V / 360 mA, 4.3 w máx
DC 12 V / 360 mA, 4.3 w máx
DC 12 V / 360 mA, 4.3 w máx
