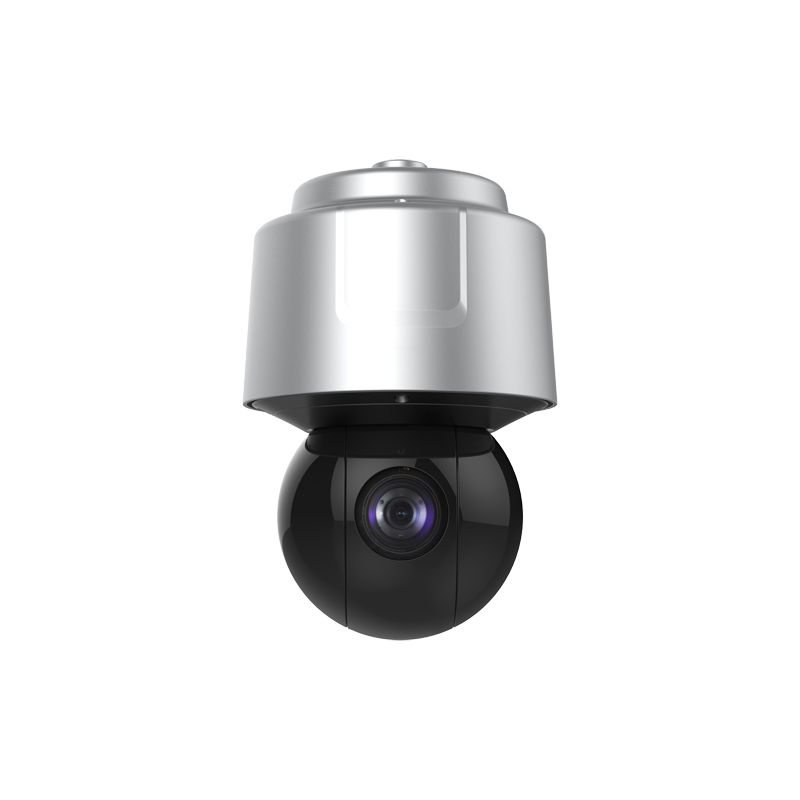

Safire SF-IPSD9136AH-4 -

Data sheet

Resolution

4 Megapixel (2688x1512)

Temp. operation

-40º C ~ +70º C

Degree of protection

IP67 / IK10 / Overvoltage 4000V

Dimensions (without support)

355.6 mm (H) x 231 (Ø) mm

Power supply

AC 24 V / 60W, Hi-PoE

Material

Aluminium alloy

Audio

1 input (Line In) / 1 output (Line Out)

Image sensor

1/1.9\" Progressive Scan CMOS

Minimum illumination

0.005 Lux (colour) / 0.0005 Lux (B/N)

Lens

Varifocal 5.7~205.2 mm (Optical Zoom 32X)

Image improvements

BLC, HLC, 120dB WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI

Day / Night

Removable mechanical ICR filter

Pan/Tilt Range

Horizontal: 0°~360°, Vertical: -25°~90° auto flip

Manual speed

Horizontal: 0.1° ~ 300°/sec, Vertical: 0.1° ~240°/s

Preset positions

300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan

Alarms

7 in / 2 out

Internal memory

MicroSD card, Max 256 GB

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Compression

H.265+/ H.265 / H.264+/ H.264

Network interface

Ethernet 10 / 100 BaseT

Video analysis

Intelligent Autotracking (People and Vehicles), VCA: Tripwire | Area intrusion | Audio exception

Interoperability

ONVIF, PSIA, CGI

Digital zoom

16X

Electronic shutter

1/1s~1/30,000s

Speed between Presets

Horizontal: 540° /s, Vertical: 400° /s

PTZ Control

RS-485 and through network access

Weight (without support)

6000 g

Dimensions (without bracket)

355.6 mm (H) x 231 (Ø) mm

Weight (without bracket)

6000 g
