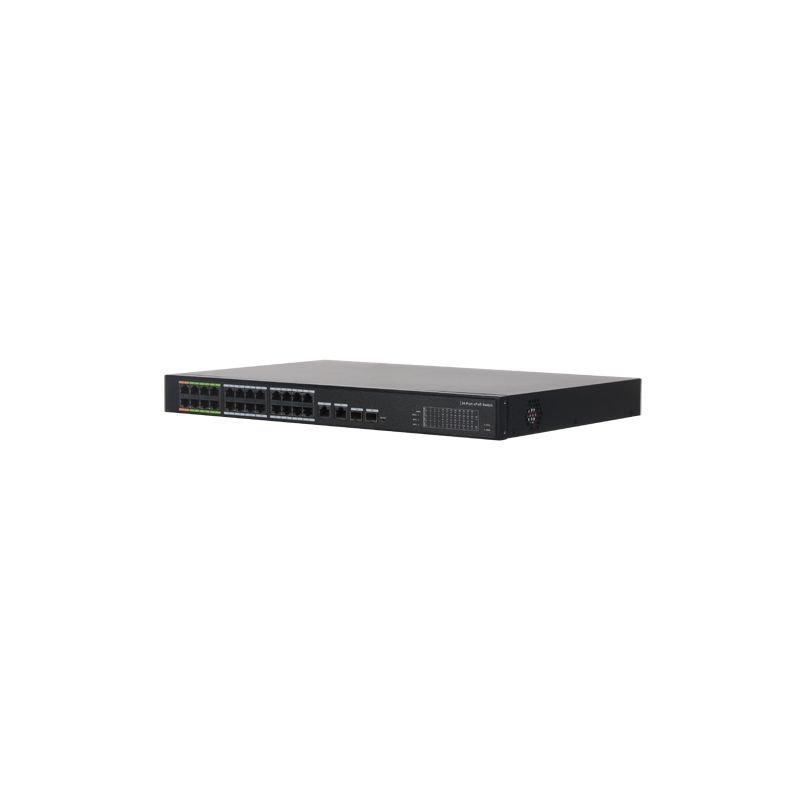

X-Security XS-SW2624EPOE-360 - X-Security ePOE Switch, 24 PoE ports + 2 Gigabit Combo…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

X-Security ePOE Switch - 24 PoE ports + 2 Gigabit Combo Port - Up to 800 meters of transmission - 60 W by port (1&2) / Maximum 360W - Rack mountable | Web Administration - Hi-PoE / IEEE802.3at (PoE) / af (PoE+)

Reference XS-SW2624EPOE-360

Brand X-Security

Description
Product Details

X-Security
Desktop Switch
24 ports RJ45 10/100 Mbps + 2 Gigabit Combo Port
8 ePoE Ports + 16 PoE Ports
Transmission distance up to 800m
Supports ePoE powering up to 360W in total for all ports
Compatible with PoE IEEE802.3af/at and Hi-PoE
Administration website
Rack mountable

Features

X-Security ePOE Switch
24 PoE ports + 2 Gigabit Combo Port
Up to 800 meters of transmission
60 W by port (1&2) / Maximum 360W
Rack mountable | Web Administration
Hi-PoE / IEEE802.3at (PoE) / af (PoE+)

Specs

Interface	24 RJ45 PoE ports + 2 Gigabit Combo Port(s)
Port speed	24x 10/100 - 2x 10/100/1000 Mbps
Power supply	Up to 30 W per port (Port 1, 2, 3) \| Up to 60 W (Port 4) (360 W in total for the complete device)
PoE features	Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
Transmission distance	Up to 800 meters
Power	AC 100 V - 240 V
Overvoltage protection	Common mode 4KV / Differential mode 2KV
Operating temperature	-30º C ~ 65º C
Dimensions	300 (D) x 44 (H) x 440 (W) mm

Package content

X-Security PoE Switch
Power supply
User instructions

Data sheet

Power: AC 100 V - 240 V
Transmission distance: Up to 800 meters
Dimensions: 300 (D) x 44 (H) x 440 (W) mm
Operating temperature: -30º C ~ 65º C
Power supply: AC 100 V - 240 V
Up to 30 W per port (Port 1, 2, 3) | Up to 60 W (Port 4) (360 W in total for the complete device)
PoE features: Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
Interface: 24 RJ45 PoE ports + 2 Gigabit Combo Port(s)
Port speed: 24x 10/100 - 2x 10/100/1000 Mbps
Overvoltage protection: Common mode 4KV / Differential mode 2KV
