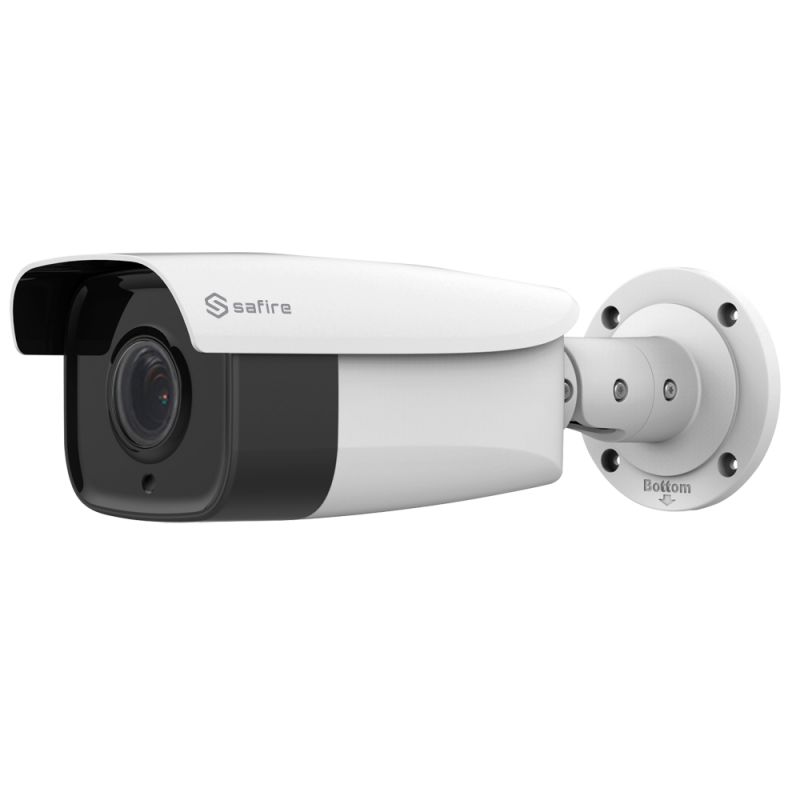

Safire SF-IPCV778LZUAWH-2 - 2 Megapixel IP Camera, 1/1.8" Progressive Scan CMOS,…
search
  • Safire SF-IPCV778LZUAWH-2 - 2 Megapixel IP Camera, 1/1.8" Progressive Scan CMOS,…

Safire SF-IPCV778LZUAWH-2 - 2MpxUltra Low Light IP Camera, 1/1.8\" Progressive Scan…

2MpxUltra Low Light IP Camera - 1/1.8" Progressive Scan CMOS - Compression H.265+/H.265/H.264+/H.264 - 8~32 mm varifocal motorised lens / WDR - IR LEDs Range 30 m | Audio and Alarms - WEB, CMS, Smartphone and NVR interface
Reference SF-IPCV778LZUAWH-2
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • Ultra Low Light IP Camera
  • 1/1.8" Progressive Scan CMOS
  • 2 Megapixel (1920x1080)
  • 8~32 mm motorised varifocal autofocus lens
  • 0 Lux
  • IR Range 30 m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • Audio
  • Alarms
  • PoE IEEE802.3at
  • Weatherproof IP67
  • IR Cut
  • WDR
  • SD card recording
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible

Features

  • 2MpxUltra Low Light IP Camera
  • 1/1.8" Progressive Scan CMOS
  • Compression H.265+/H.265/H.264+/H.264
  • 8~32 mm varifocal motorised lens / WDR
  • IR LEDs Range 30 m | Audio and Alarms
  • WEB, CMS, Smartphone and NVR interface

Specs

BrandSAFIRE
Image sensor1/1.8" Progressive Scan CMOS
Maximum resolution2 Megapixel (1920x1080)
Main Stream rate2Mpx / 1.3Mpx / 720p (1 ~ 25 FPS)
Extra Stream rate704×576 / 640×480 / 352×288 / 320×240 (1 ~ 25 FPS)
CompressionH.265+ / H.265 / H.264+ / H264 / MJPEG
Bitrate32 Kbps ~ 16 Mbps
Lens8~32mm Motorised auto-focus
Minimum illuminationColour 0.002 Lux @ F1.2 / B/W 0.0002 Lux @ F1.2
Infrared lighting0 Lux / IR LEDs (30 m)
Image improvements120dB WDR, BLC, HLC, 3D-NR, AWB, Defog, EIS, Privacy Masking, ROI
Day / NightRemovable mechanical ICR filter
Internal memoryMicroSD card, Max 128 GB
Video output1 BNC output
Alarms1 inputs / 1 relay
Audio1 IN / 1 OUT
CommunicationEthernet 10/100 BaseT, RS-485
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
InteroperabilityONVIF, PSIA, CGI
PowerDC 12 V / 11.25W, PoE IEEE802.3af / 15W
Degree of protectionWeatherproof IP67
Temp. operation-30º C ~ +60º C
Dimensions348.4 mm (D) x 114 (Ø) mm
Weight1900 g

Package content

  • SAFIRE Compact IP Camera
  • Installation material
  • User instructions

Data sheet

Weight
1900 g
1900 g
Power
DC 12 V / 11.25W, PoE IEEE802.3af / 15W
Temp. operation
-30º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
348.4 mm (D) x 114 (Ø) mm
Transfer Rate
32 Kbps ~ 16 Mbps
Power supply
DC 12 V / 11.25W, PoE IEEE802.3af / 15W
Communication
Ethernet 10/100 BaseT, RS-485
Video output
1 BNC output
Audio
1 In / 1 Out
Image sensor
1/1.8\" Progressive Scan CMOS
Minimum illumination
Colour 0.002 Lux @ F1.2 / B/W 0.0002 Lux @ F1.2
Lens
8~32mm Motorised auto-focus
Maximum resolution
2 Megapixel (1920x1080)
Infrared lighting
0 Lux / IR LEDs (30 m)
Image improvements
120dB WDR, BLC, HLC, 3D-NR, AWB, Defog, EIS, Privacy Masking, ROI
Day / Night
Removable mechanical ICR filter
Alarms
1 inputs / 1 relay
Internal memory
MicroSD card, Max 128 GB
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
2Mpx / 1.3Mpx / 720p (1 ~ 25 FPS)
Extra Stream rate
704×576 / 640×480 / 352×288 / 320×240 (1 ~ 25 FPS)
Compression
H.265+ / H.265 / H.264+ / H264 / MJPEG
Interoperability
ONVIF, PSIA, CGI
