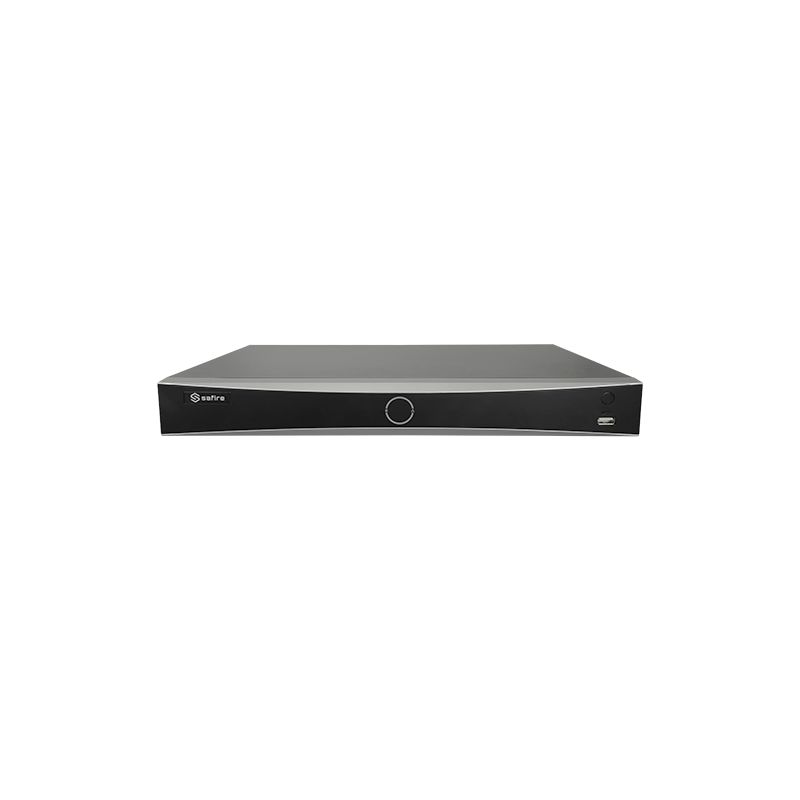

Safire SF-NVR8208A-4K-4AI -

Data sheet

Power

DC 12 V, 40 W

Operating temperature

-10° ~ +55° C

Power supply

DC 12 V, 40 W

Dimensions / Weight

51.5 (H) x 380 (W) x 315 (D) mm / 3 Kg

Communication

1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/10 Mbps (Ethernet)

Dimensiones

43,2 (Al) x 100 (Ø) mm

Inputs for IP cameras

LAN port up to 8 channels

IP compatible cameras

SAFIRE (native protocol), ONVIF

Bidirectional audio

Reusing the audio input

Video compression format

H.265+ / H.265 / H.264+ / H.264 / MPEG4

Display resolution

3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768

Total bandwidth

80 Mbps downstream / 256 Mbps upstream

Main Stream recording

12MP/8MP/6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Alarms

4 inputs / 1 relay

Recording method

Manual, programmed, motion detection, alarm

External Backup

USB memory / HDD USB / CD-RW USB / DVR-RW USB

Internal memory

2 SATA HDD 3.5\" of up to 8 TB (not included)

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Video outputs

1 HDMI 4K, 1 VGA, 1 CVBS BNC (independent)

Audio inputs

1 RCA input

Audio outputs

1 RCA output

Recording resolution

12MP/8MP/6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCI

Backup

USB memory / HDD USB / CD-RW USB / DVR-RW USB

Weight

500 g

Auxiliary display resolution

1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 (60 Hz)

Smart functions

VCA: Crossing Line | Intrusion in area

POS Function

Supports (Integration and coordination of points of sale tickets with the IP video recorder)

Rack mountable

1U

Main display resolution

3840x2160 (30 Hz), 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 (60 Hz)
