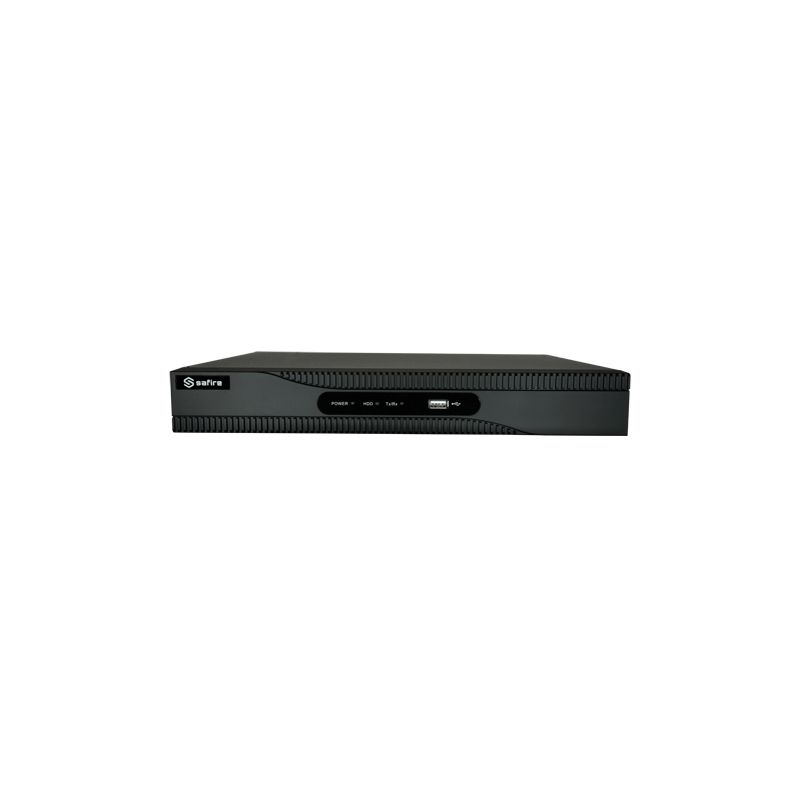

Safire SF-NVR8208A-4K8P-4AI -

Data sheet

Power

DC 12 V, 15 W (Hard disk not included)

Operating temperature

-10° ~ +55° C

Power supply

DC 12 V, 15 W (Hard disk not included)

Dimensions / Weight

51.5 (H) x 380 (W) x 315 (D) mm / 3 Kg

Communication

1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100/1000 Mbps (Ethernet)

Dimensiones

43,2 (Al) x 100 (Ø) mm
189 (Al) x 81 (An) x 76 (Fo) mm / 470g

Inputs for IP cameras

LAN port up to 8 channels

IP compatible cameras

SAFIRE (native protocol), ONVIF

Bidirectional audio

Reusing the audio input

Video compression format

H.265+ / H.265 / H.264+ / H.264 / MPEG4

Display resolution

3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768

Total bandwidth

80 Mbps downstream / 256 Mbps upstream

Main Stream recording

12MP/8MP/6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Alarms

4 inputs / 1 relay

Recording method

Manual, programmed, motion detection, alarm

External Backup

USB memory / HDD USB / CD-RW USB / DVR-RW USB

Internal memory

2 SATA HDD 3.5\" of up to 8 TB (not included)

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Video outputs

1 HDMI 4K, 1 VGA, 1 CVBS BNC (independent)

Audio inputs

1 RCA input

Audio outputs

1 RCA output

Recording resolution

12MP/8MP/6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCI

Backup

USB memory / HDD USB / CD-RW USB / DVR-RW USB

PoE power supply

Up to 8 channels 120 W

Auxiliary display resolution

1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 (60 Hz)

Smart functions

VCA: Crossing Line | Intrusion in area

POS Function

Supports (Integration and coordination of points of sale tickets with the IP video recorder)

Power over Ethernet

Up to 8 channels 120 W

Rack mountable

1U

Main display resolution

3840x2160 (30 Hz), 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 (60 Hz)

Smart Features

TrueSense: False alarm filter for vehicles and people up to 4CH (Maximum resolution allowed): IP cameras up to 4Mpx)

Weight

550 g
550 g

MTBF

1.5000.000 h

VCA Rules

VCA: Crossing Line | Intrusion in area
