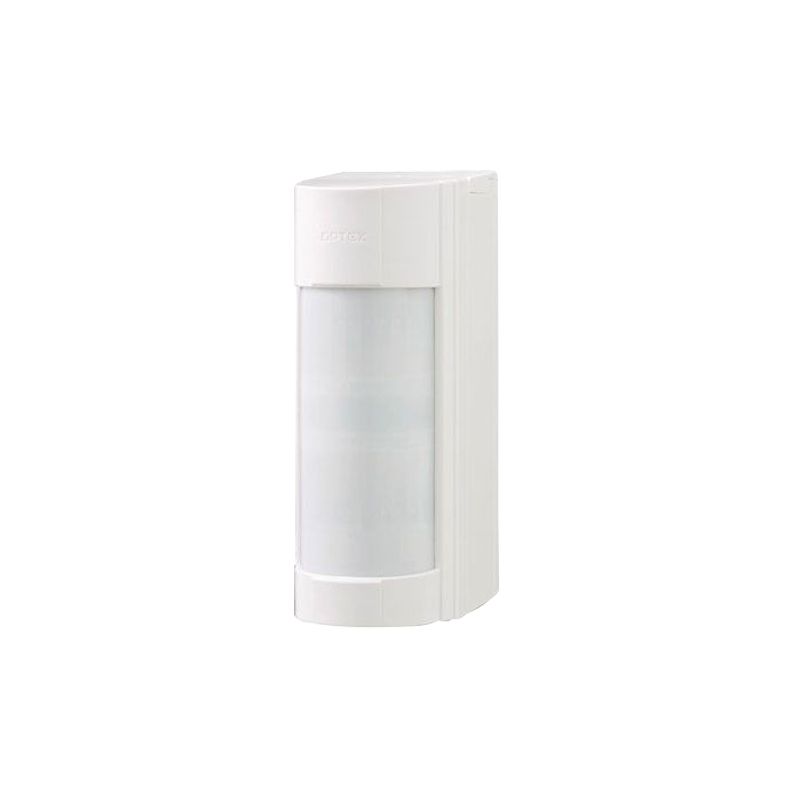

Optex VXI-RDAM - Optex Low Consumption PIR Detector, Compatible with…
Optex Low Consumption PIR Detector - Compatible with transmitter via radio - Double PIR and microwave / Detection 12 m - Antimasking / Pet immunity - Battery power 3~9 VDC - Outdoor use
Reference
VXI-RDAM
Brand
Optex
- Optex
- Outdoor detector
- Double PIR with antimasking
- Detection: Range 12 m / 90º
- Motion detection indicator
- Tamper-resistant opening
- Battery power 3~9 VDC (low consumption)
- Compatible with transmitter via radio
- Outdoor use
- Degree of protection IP55
Features
- Optex Low Consumption PIR Detector
- Compatible with transmitter via radio
- Double PIR and microwave / Detection 12 m
- Antimasking / Pet immunity
- Battery power 3~9 VDC
- Outdoor use
Specs
| Brand | Optex |
| Series | VX INFINITY |
| Technology | Double technology: Microwaves and double volumetric PIR |
| PIR lens | 16 zones |
| Detection range | 12 m / 90º / Installation 1.2 m |
| Pet immunity | Available |
| Masking | Available |
| Sensitivity | Adjustable. 3 levels (high, medium, low) |
| Tamper-resistant opening | Available |
| LEDs indication | Alarm |
| DIP switch configuration | Walk test mode led, Battery saving mode, Alarm and tamper type (NC/NO), LEDs, Antimasking and Microwave |
| Wired outputs | Alarm and Fault (tamper and antimasking) |
| Power | 3 V to 9 V DC |
| Consumption | Minimal consumption (Rest: 18 uA / Maximum: 8 mA) |
| Temp. operation | -20 ºC ~ 45 ºC |
| Degree of protection | IP55 |
| Dimensions | 186 (H) x 71.3 (W) x 105.5 (D) mm |
| Weight | 500 g |
Package content
- Optex Outdoor PIR Detector
- Instructions Manual
- Mounting material
Data sheet
- Weight
- 500 g
500 g
500 g
550 g
550 g
550 g
550 g
550 g - Power
- 3 V to 9 V DC
- Technology
- Double technology: Microwaves and double volumetric PIR
- Detection range
- 12 m / 90º / Installation 1.2 m
- Pet immunity
- Available
- Masking
- Available
- Sensitivity
- Adjustable. 3 levels (high, medium, low)
- LEDs indication
- Alarm
Alarm, tamper, signal - Temp. operation
- -20 ºC ~ 45 ºC
- Degree of protection
- IP55
- Dimensions
- 186 (H) x 71.3 (W) x 105.5 (D) mm
- PIR lens
- 16 zones
- Power supply
- 3 V to 9 V DC
- Tamper-resistant opening
- Available
- Consumption
- Minimal consumption (Rest: 18 uA / Maximum: 8 mA)
- Wired outputs
- Alarm and Fault (tamper and antimasking)
- Series
- VX INFINITY
- Dimensiones
- 186 (Al) x 71.3 (An) x 105.5 (Fo) mm
550 g
550 g
550 g
550 g - DIP switch configuration
- Walk test mode led, Battery saving mode, Alarm and tamper type (NC/NO), LEDs, Antimasking and Microwave
- VESA
- 100x100 mm
- MTBF
- 1.5000.000 h
- Batería de respaldo
- Duración hasta 16 horas
Duración hasta 16 horas
Optex Low Consumption PIR Detector - Compatible with transmitter via radio - Double PIR and microwave / Detection 12 m - Antimasking / Pet immunity - Battery power 3~9 VDC - Outdoor use
