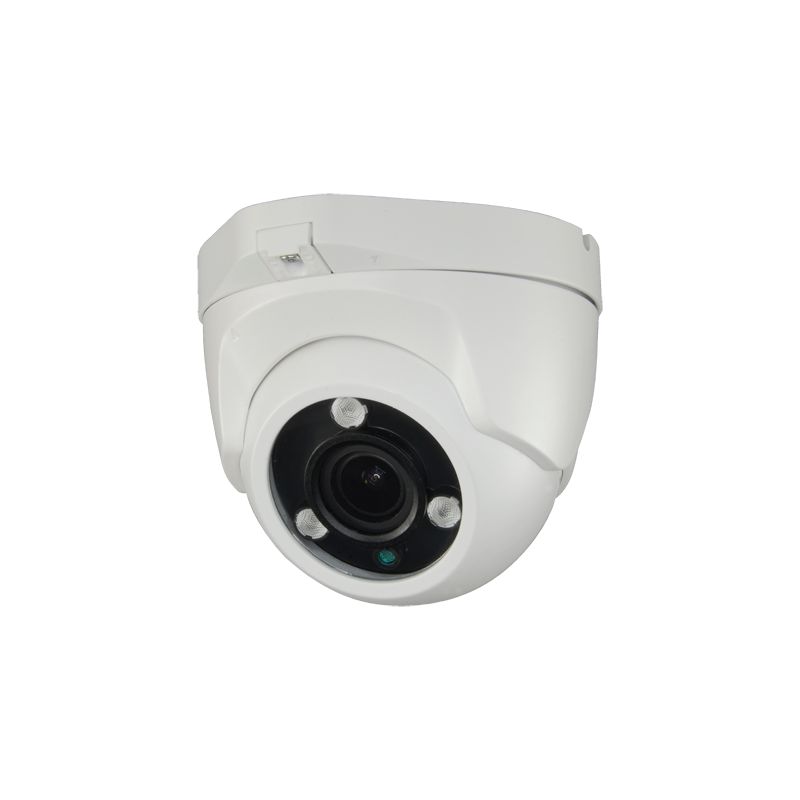

T957ZSW-2U4N1 - HDTVI, HDCVI, AHD and Analogue camera, 1080p (25 fps),…

HDTVI, HDCVI, AHD and Analogue camera - 1080p (25 fps) - 1/2.8" Sony© 2.0 Mpx Exmor IMX327 - Motorised Lens with Autofocus 2.8~12mm - 3 LEDs Array Range 40 m - OSD remote menu | WDR
Reference T957ZSW-2U4N1
Brand Branded
Quantity

Free shipping

You might also like

  • HDTVI, HDCVI, AHD and Analogue dome camera
  • ULTRA Range
  • 1/2.8" Sony© 2.16 Megapixel Starvis
  • IMX327+EN771C
  • HD 1080P (1920x1080)
  • Output 4in1
  • 2.8~12 mm Motorised Autofocus Lens
  • High sensitivity Starlight
  • 0 Lux - IR Array Range 40 m
  • WDR (12FPS)
  • 3DNR
  • IR Cut
  • Screw for easy orientation
  • White colour
  • Weatherproof IP66

Features

  • HDTVI, HDCVI, AHD and Analogue camera
  • 1080p (25 fps)
  • 1/2.8" Sony© 2.0 Mpx Exmor IMX327
  • Motorised Lens with Autofocus 2.8~12mm
  • 3 LEDs Array Range 40 m
  • OSD remote menu | WDR

Specs

Range1080p ULTRA
Image sensor1/2.8" Sony© 2 Megapixel Exmor (model IMX327)
DSPEN771C
ResolutionHD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Video output1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Minimum illumination0 Lux / 3 IR LEDs Array (40 m)
Basic functionsOSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functionsWDR, SC, SenseUp, ACE, AE, 2D&3D-NR, AWB, AGC, Mask, MD, Defog
Lens2.8 ~ 12mm Motorised vari-focal with autofocus
PowerDC 12 V / 1A max.
Degree of protectionWeatherproof IP66
Temp. operation-10º C ~ +60º C
Dimensions95 (D) x 130 (Ø) mm
Weight500 g

Package content

  • 4 in 1 Vari-focal dome camera
  • Installation material

Data sheet

Weight
500 g
500 g
Power
DC 12 V / 1A max.
Resolution
HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Temp. operation
-10º C ~ +60º C
Degree of protection
Weatherproof IP66
Dimensions
95 (D) x 130 (Ø) mm
Power supply
DC 12 V / 1A max.
Range
1080p ULTRA
Video output
1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Image sensor
1/2.8\" Sony© 2 Megapixel Exmor (model IMX327)
DSP
EN771C
Minimum illumination
0 Lux / 3 IR LEDs Array (40 m)
Basic functions
OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions
WDR, SC, SenseUp, ACE, AE, 2D&3D-NR, AWB, AGC, Mask, MD, Defog
Lens
2.8 ~ 12mm Motorised vari-focal with autofocus
