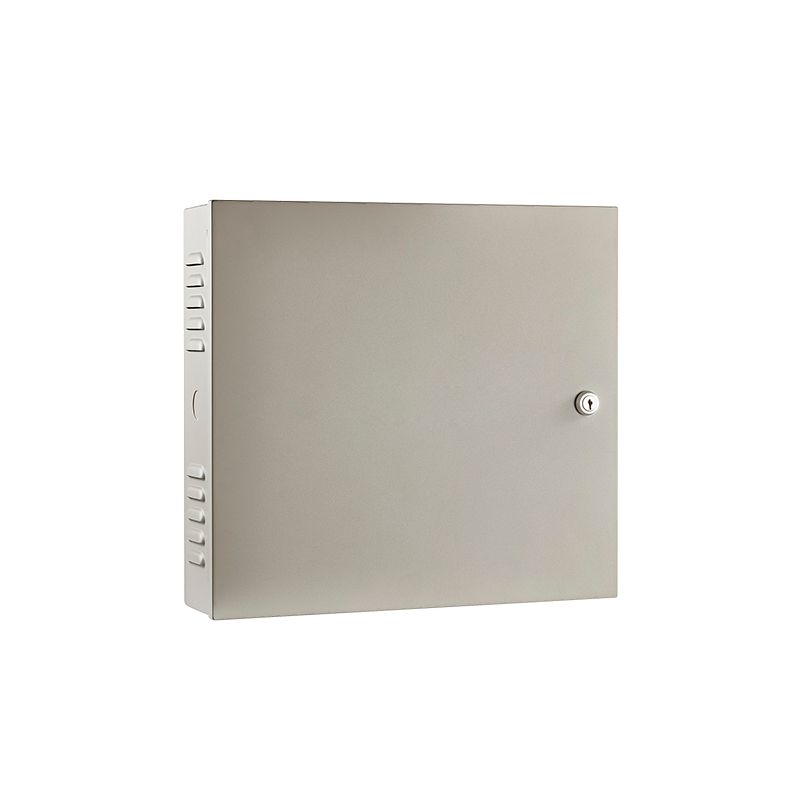

Safire SF-AC2403-WRIP - Biometric access controller, Access by fingerprint,…
search
  • Safire SF-AC2403-WRIP - Biometric access controller, Access by fingerprint,…

Safire SF-AC2403-WRIP - Biometric access controller, Access by fingerprint,…

Biometric access controller - Access by fingerprint, card or password - TCP/IP communication | RS485 - 4 Wiegand inputs 26 y 8 RS485 - Relay output for four doors - Safire Control Center-software
Reference SF-AC2403-WRIP
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • Biometric Access Controller
  • Management of 4 doors
  • Capacity 3.000 users, 100.000 cards and 300.000 registrations
  • Supports up to 4 Wiegand readers and 8 per RS485
  • TCP/IP communication and RS485
  • Inputs for 4 push buttons, 4 door sensors, 8 auxiliary inputs and 4 alarm inputs
  • 4 relay outputs and 4 alarm outputs
  • Relay configuration NO/NC
  • Compatible with Safire Control Center-software

Features

  • Biometric access controller
  • Access by fingerprint, card or password
  • TCP/IP communication | RS485
  • 4 Wiegand inputs 26 y 8 RS485
  • Relay output for four doors
  • Safire Control Center-software

Specs

BrandSafire
ModelSF-AC2403-WRIP
Hardware CPU32bit MIPS CPU
CapacityUp to 100.000 users
Records300.000 registers
Identification modesFingerprints, Card and/or passwords
Proximity cardEM RFID (125 KHz) or MF (13,56MHz)
CommunicationTCP/IP | RS485
Outputs4xSalida relay, 4xSalidas alarm
Inputs4xWiegand 26 IN, 4xSensor port, 4xBotón opening, RS485, 8xAUX, 4x alarm, 1xTamper
SoftwareSafire Control Center
FunctionsMulti-door locks, anti-passback, multi-card, first opening card
PowerPower supply included (DC 12 V / 1A max.) connected to 220V AC
Temp. operation-20º C ~ +65º C
Dimensions370 (W) x 345 (H) x 90 (D) mm
Weight3000 g

Package content

  • Safire access controller
  • Mounting material
  • User instructions

Data sheet

Weight
3000 g
3000 g
Power
DC 12 V / 1A max.
Power supply included (DC 12 V / 1A max.) connected to 220V AC
Temp. operation
-20º C ~ +65º C
Dimensions
370 (W) x 345 (H) x 90 (D) mm
Capacity
Up to 100.000 users
Records
300.000 registers
Identification modes
Fingerprints, Card and/or passwords
Proximity card
EM RFID (125 KHz) or MF (13,56MHz)
EM RFID (125 KHz) or Mifare (13,56MHz)
Inputs
4xWiegand 26 IN, 4xSensor port, 4xBotón opening, RS485, 8xAUX, 4x alarm, 1xTamper
Outputs
4xSalida relay, 4xSalidas alarm
Power supply
DC 12 V / 1A max.
Communication
TCP/IP | RS485
Functions
Multi-door locks, anti-passback, multi-card, first opening card
Software
Safire Control Center
Hardware CPU
32bit MIPS CPU
