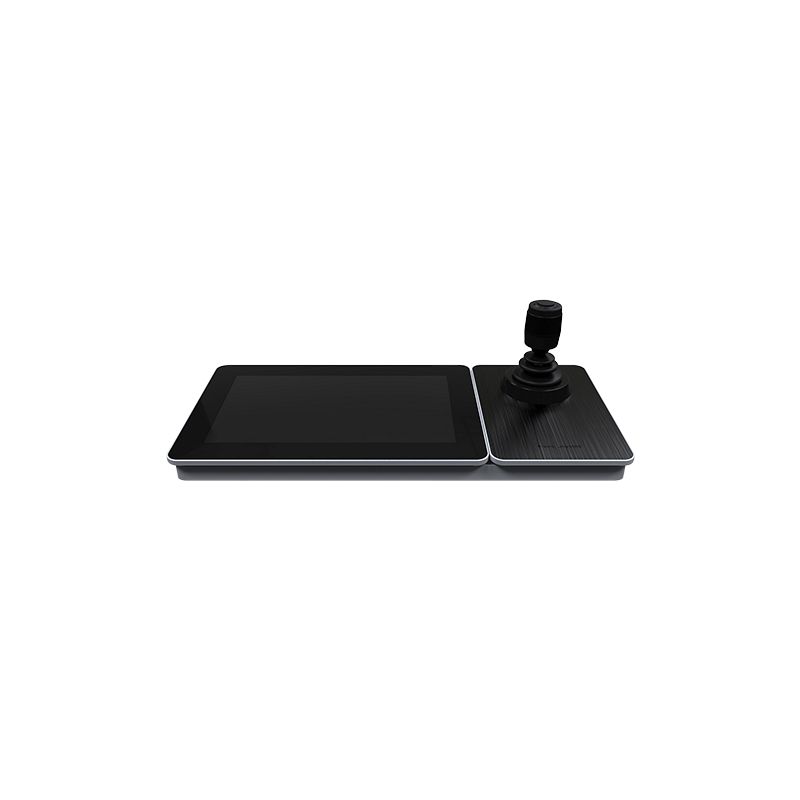

SF-KB1600NT - Safire network connected control keyboard, Double…

Safire SF-KB1600NT - Safire IP Keyboard, Double interface: direct or…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

Safire IP Keyboard - Double interface: direct or network - 10.1" TFT LCD Screen - IP network with connector RJ45 - Joystick 4 axis - Save images locally via USB

Reference SF-KB1600NT

Brand Safire

Description
Product Details

Safire
IP Keyboard
To control Safire DVRs, NVRs and Motorised Domes and video wall
USB and Network Connections
4 Axis joystick
10.1" (1024x600) TFT screen
Bidirectional audio
Web browser configuration

Features

Safire IP Keyboard
Double interface: direct or network
10.1" TFT LCD Screen
IP network with connector RJ45
Joystick 4 axis
Save images locally via USB

Specs

Brand	Safire
Control modes	DVR, Analogue Dome, VMS and Analogue Matrix
Communication mode	RJ45, USB
Supported protocols	Pelco P/D, Safire and others
Display	LCD 10.1" TFT 1024x600 /
Display Resolution	1080P / 720P / HD1 / BCIF / CIF / QCIF
Grid on local screen	Up to 16
Video interface	HDMI / DVI
Other ports	2 x USB / 1 x Audio (Jack 3.5 mm)
Other ports	Two-way Audio
Axis	4 Axis
Network interface	RJ45 10/100/1000 Mbps / WiFi
Users	16 Users (1 Administrator, 15 Operators)
Power	DC 12V / 15 W / PoE
Temperature	-10ºC ~ +55ºC
Dimensions	163 (H) x 404 (W) x 180 (D) mm
Weight	1700 g

Package content

Control keyboard
Power supply

Data sheet

Weight: 1700 g
Power: DC 12V / 4.5W / PoE
DC 12V / 15 W / PoE
Dimensions: 163 (H) x 404 (W) x 180 (D) mm
Temperature: -10ºC ~ +55ºC
Display resolution: 1080P / 720P / HD1 / BCIF / CIF / QCIF
Network interface: RJ45 10/100/1000 Mbps / WiFi
Communication mode: RJ45, USB
Display: LCD 10.1\" TFT 1024x600 /
Control modes: DVR, Analogue Dome, VMS and Analogue Matrix
Supported protocols: Pelco P/D, Safire and others
Users: 16 Users (1 Administrator, 15 Operators)
Grid on local screen: Up to 16
Video interface: HDMI / DVI
Other ports: 2 x USB / 1 x Audio (Jack 3.5 mm)
Two-way Audio
Axis: 4 Axis
