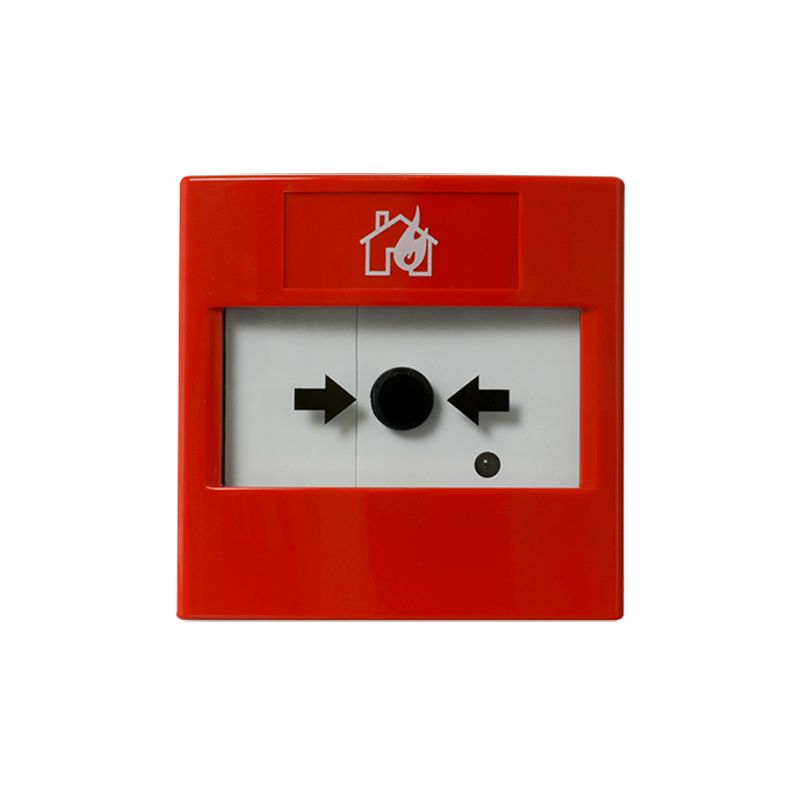

Advanced ADV-20-VCP100 -

Data sheet

Dimensions

85 x 85 x 54 mm (H x W x D)

IP protection

IP21

Certification

EN 54-11

Voltaje DC

Nominal 24V (15~40V)

Voltage DC

Nominal Relay Switching current 24V (15~40V)

Rango de temperatura de funcionamiento

-30ºC ~ +70ºC

Humedad (sin condensación)

95% RH

Consumo medio

70μA

Consumo de LED

6mA@24VDC

Operating temperature range

-30ºC ~ +70ºC

Humidity (non condensing)

95% RH

Average consumption

70μA

LED Current Consumption

6mA@24VDC
