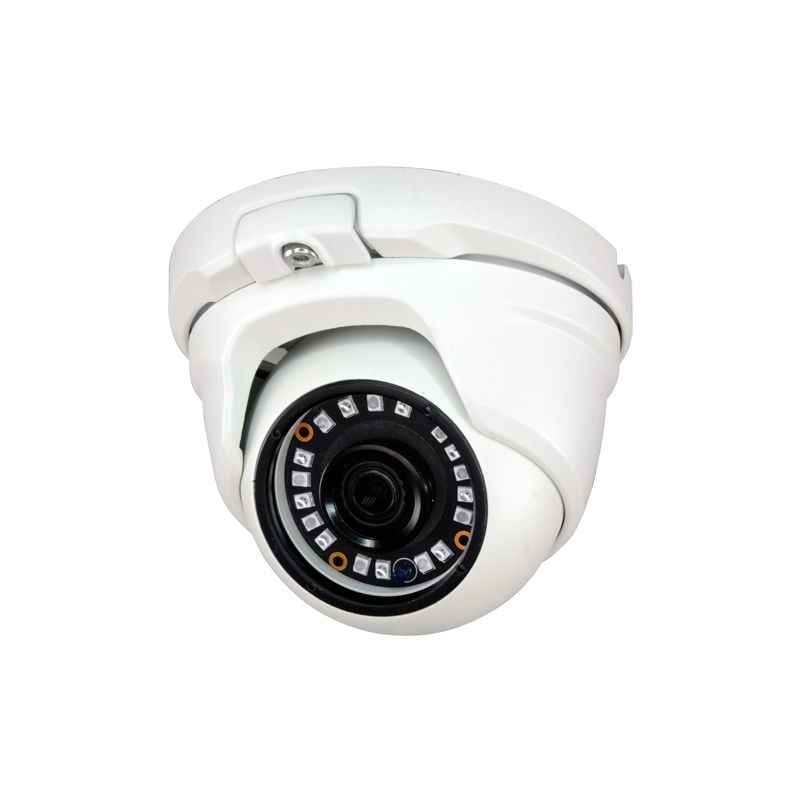

Dome camera Range 1080p PRO - 4 in 1 (HDTVI / HDCVI / AHD / CVBS) - 1/2.8" Sony Starvis IMX307+8550 - 3.6 mm Lens - IR LEDs Range 20 m - WDR
Reference T941SW-2P4N1
Brand Branded
Quantity

Free shipping

You might also like

  • HDTVI, HDCVI, AHD and Analogue dome camera
  • PRO Range
  • 2 Megapixel (1920x1080)
  • 1/2.8" 2.16Mp SONY STARVIS CMOS
  • IMX307+FH8550M
  • High sensitivity Starlight
  • Output 4in1
  • 3.6 mm Lens
  • 0 Lux - IR range 20m
  • WDR
  • IP66

Features

  • Dome camera Range 1080p PRO
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.8" Sony Starvis IMX307+8550
  • 3.6 mm Lens
  • IR LEDs Range 20 m
  • WDR

Specs

Range1080p PRO
Image sensor1/2.8" 2.16Mp SONY STARVIS CMOSIMX307
DSPFH8550M
ResolutionHD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Video output1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Minimum illumination0 Lux / IR LEDs Array (20 m)
Basic functionsOSD menu (remote), Day/Night with IR-CUT (ICR), ATR
Configurable OSD functionsWDR, 3D-NR, AE, AWB, AGC
Lens3.6 mm
PowerDC 12 V / 300 mA
Degree of protectionWeatherproof IP66
Temp. operation-10º C ~ +50º C
Dimensions68 (H) x 97 (Ø) mm
Weight310 g

Package content

  • Dome camera
  • Installation material

Data sheet

Weight
310 g
310 g
Power
DC 12 V / 300 mA
Grado de protección
Impermeable IP66
Resolution
HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
Temp. operation
-10º C ~ +50º C
Degree of protection
Weatherproof IP66
Dimensions
68 (H) x 97 (Ø) mm
Power supply
DC 12 V / 300 mA
Range
1080p PRO
Video output
1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Image sensor
1/2.8\" 2.16Mp SONY STARVIS CMOSIMX307
DSP
FH8550M
Minimum illumination
0 Lux / IR LEDs Array (20 m)
Basic functions
OSD menu (remote), Day/Night with IR-CUT (ICR), ATR
Configurable OSD functions
WDR, 3D-NR, AE, AWB, AGC
Lens
3.6 mm
