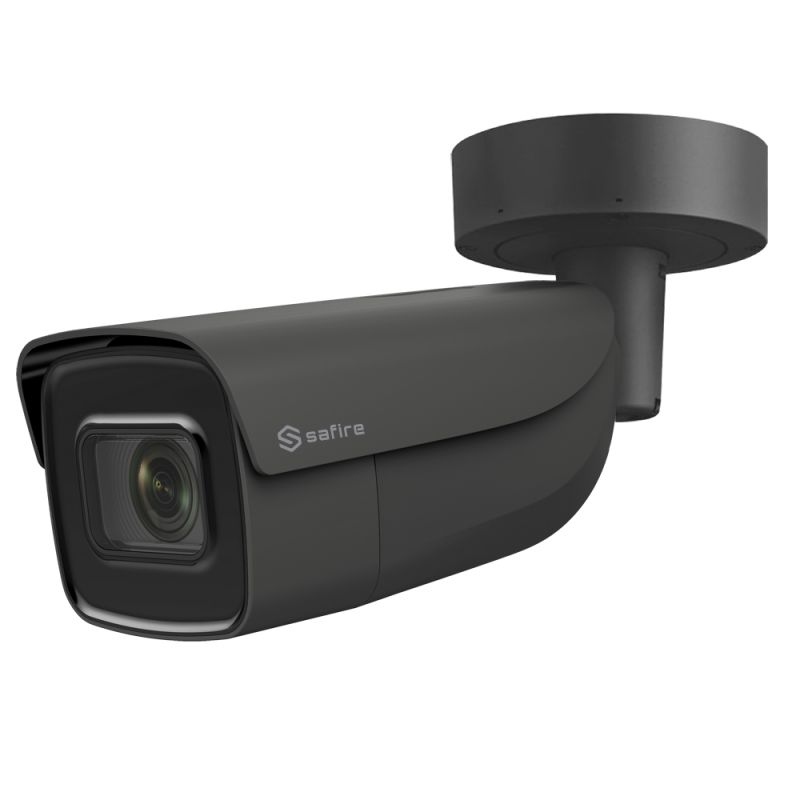

Safire SF-IPB798ZWHAG-8U - 8 Megapixel IP Bullet Camera, 1/2.5\" Progressive Scan…

8 Megapixel IP Bullet Camera - 1/2.5" Progressive Scan CMOS - Compression H.265+ / H.265 - 2.8~12 mm Motorised Autofocus Lens - IR Matrix range 50 m - IP67 | WDR | Micro SD card
Reference SF-IPB798ZWHAG-8U
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • Bullet IP camera
  • 1/2.5" Progressive Scan CMOS
  • 8 Megapixel (3840x2160)
  • 2.8~12 mm motorised varifocal autofocus lens
  • WDR
  • Compression H.265+/H.265/H.264+/H.264
  • IR Cut
  • 0 Lux
  • SD card recording
  • IR Range 50 m
  • RJ-45 10/100 BaseT
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • PoE IEEE802.3af
  • Weatherproof IP67

Features

  • 8 Megapixel IP Bullet Camera
  • 1/2.5" Progressive Scan CMOS
  • Compression H.265+ / H.265
  • 2.8~12 mm Motorised Autofocus Lens
  • IR Matrix range 50 m
  • IP67 | WDR | Micro SD card

Specs

BrandSAFIRE
Image sensor1/2.5" Progressive Scan CMOS
Maximum resolution8 Megapixel (3840x2160)
Minimum illumination0.01 Lux / F1.2
Infrared lighting0 Lux / Matrix LED IR (50 m)
LensMotorized varifocal 2.8~12 mm (H: 105°~34.5, V: 55~19°)
CompressionH.265+/H.265/H.264+/H.264
Video Bit Rate32 Kbps~16Mbps
Main Stream rate8 Mpx (12.5 FPS)/ 5 Mpx (20 FPS) / 3 Mpx / 2 Mpx / 1080p (25FPS)
Extra Stream rate640x480 / 640x360 / 320×240 (1 ~ 25 FPS)
Image improvementsWDR, BLC, 3D-NR, MD, Privacy Mask, ROI, HLC
Day / NightAuto / Programmable / Colour / BW (Black and White)
Internal memoryMicro SD card up to 128GB
Network interfaceEthernet 10/100 BaseT
Alarms1 Input / 1 Relay
Audio1 Input / 1 Relay
Video analysis VCA: Line Crossing | Area Intrusion | Facial Detection
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
InteroperabilityONVIF and ISAPI
PowerDC 12 V / 1200 mA, PoE IEEE802.3af
Degree of protectionWaterproof IP67 / Anti-vandal IK10
MaterialMetallic
Temp. operation-30º C ~ +60º C
Dimensions332.7 mm (d) x 83.35 mm (w) x 46 mm (h)
Base dimensions144.1 (Ø) mm
Weight1893 g

Package content

  • Safire IP Bullet Camera
  • 3 plugs and 3 screws for mounting
  • User instructions
  • Allen wrench
  • Installation template

Data sheet

Weight
1893 g
1893 g
Power
DC 12 V / 1200 mA, PoE IEEE802.3af
Temp. operation
-30º C ~ +60º C
Degree of protection
Waterproof IP67 / Anti-vandal IK10
Dimensions
332.7 mm (d) x 83.35 mm (w) x 46 mm (h)
Power supply
DC 12 V / 1200 mA, PoE IEEE802.3af
Material
Metallic
Audio
1 Input / 1 Relay
Image sensor
1/2.5\" Progressive Scan CMOS
Minimum illumination
0.01 Lux / F1.2
Lens
2.8~12mm Motorised varifocal with auto-focus
Motorized varifocal 2.8~12 mm (H: 105°~34.5, V: 55~19°)
Maximum resolution
8 Megapixel (3840x2160)
Infrared lighting
0 Lux / Matrix LED IR (50 m)
Image improvements
WDR, BLC, 3D-NR, MD, Privacy Mask, ROI, HCL
WDR, BLC, 3D-NR, MD, Privacy Mask, ROI, HLC
Day / Night
Auto / Programmable / Colour / BW (Black and White)
Base dimensions
144.1 (Ø) mm
Alarms
1 Input / 1 Relay
Internal memory
Micro SD card up to 128GB
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
8 Mpx (12.5 FPS)/ 5 Mpx (20 FPS) / 3 Mpx / 2 Mpx / 1080p (25FPS)
8 Mpx (12.5 FPS)/ 5 Mpx (20 FPS) Mpx / 3 2 Mpx / 1080p (25 ≥[%VAR%] FPS)
Extra Stream rate
640x480 / 640x360 / 320×240 (1 ~ 25 FPS)
Compression
H.265+/H.265/H.264+/H.264
Network interface
Ethernet 10/100 BaseT
Video analysis
VCA: Line Crossing | Area Intrusion | Facial Detection
Interoperability
ONVIF and ISAPI
Video Bit Rate
32 Kbps~16Mbps
