SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 104SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 9155 AND id_lang = 1 Safire SF-AC1102MFD-R - Access reader, Access by fingerprint and/or MF card,…

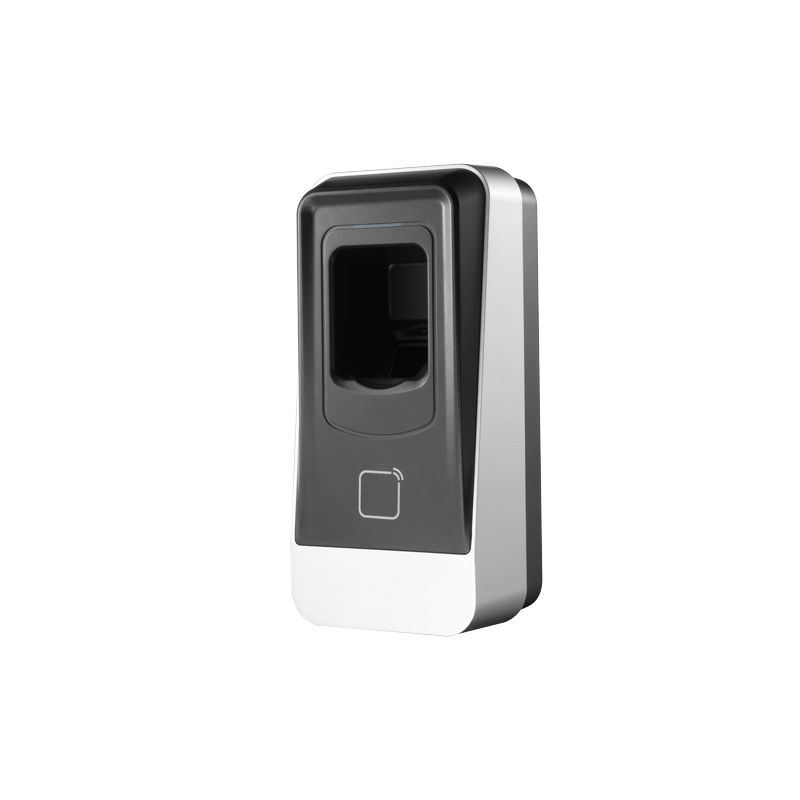

Safire SF-AC1102MFD-R - Access reader, Access with fingerprint and/or Mifare…
search
  • Safire SF-AC1102MFD-R - Access reader, Access with fingerprint and/or Mifare…

Safire SF-AC1102MFD-R - Access reader, Access by fingerprint and/or MF card,…

Access reader - Access by fingerprint and/or MF card - LED and acoustic indicator - RS485 Communication - Compatible with SF-AC2(x)03-WRIP - Suitable for exterior IP65
Reference SF-AC1102MFD-R
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • Access reader for controller
  • Access by fingerprint and/or MF card
  • Optical sensor, LED indicator for signage and acoustic
  • RS485 Communication
  • Suitable for exterior IP65
  • Compatible with Safire controller SF-AC2203-WRIP

Features

  • Access reader
  • Access by fingerprint and/or MF card
  • LED and acoustic indicator
  • RS485 Communication
  • Compatible with SF-AC2(x)03-WRIP
  • Suitable for exterior IP65

Specs

BrandSafire
ModelSF-AC1102MFD-R
SensorOptical CMOS fingerprint module
Capacity5.000 fingerprints
Activation sensorInfrared auto-activation
Read time< 1 Sec.
Card reading distance3cm ~ 10cm
Identification modesFootprint and/or MF Card 13.56 MHz
OutputsRS485, Buzzer for status indication, Tamper
CompatibilitySF-AC2(x)03-WRIP controllers
PowerDC 12 V / 70 mA max.
Degree of protectionSuitable for exterior IP65
Temp. operation-40º C ~ +75º C
Dimensions62 (W) x 132 (H) x 44 (D) mm
Weight190 g

Package content

  • Safire biometric device
  • Mounting material

Data sheet

Weight
190 g
190 g
Power
DC 12 V / 70 mA max.
Temp. operation
-40º C ~ +75º C
Degree of protection
Suitable for exterior IP65
Dimensions
62 (W) x 132 (H) x 44 (D) mm
Capacity
5.000 fingerprints
Identification modes
Fingerprint and/or 13.56 MHz Mifare Card
Footprint and/or MF Card 13.56 MHz
Outputs
RS485, Buzzer for status indication, Tamper
Power supply
DC 12 V / 70 mA max.
Compatibility
SF-AC2(x)03-WRIP controllers
Activation sensor
Infrared auto-activation
Sensor
Optical CMOS fingerprint module
Read time
≤ 1 Sec.
Card reading distance
3cm ~ 10cm
