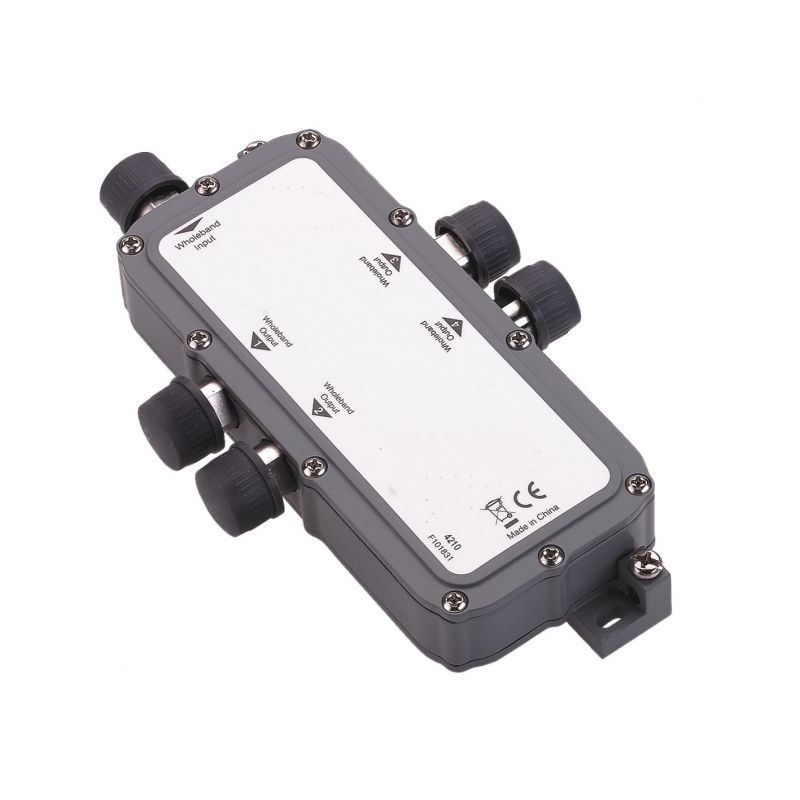

Distributor with 4 outputs with N 50 ohm connectors Triax

It allows connecting 1 LNB TWL 01 to 4 transmitters TOU 232 SA or TDOU 216 SA

€261.97
Tax included
Reference triax-307616
Brand Triax
Quantity
Available in 4/5 days

Free shipping

Distributor with 4 outputs with N 50 ohm connectors Triax

€261.97
Active 4-way COAX splitter with N connector.

TAS 04 is an active coaxial splitter to drive up to 4 optical transmitters TOU 232 SA connected by the N-cable TUC 002

Features

  • Active splitter without insertion loss
  • The optional splitting of an IRS 1 system can be increased to 4x (2x32) = 264 by using the TAS 04 connected to 4x optional transmitters TOU 232 SA
  • Fit RF cable with N connectors TUC 0xx

Specifications

ORDER INFORMATION
EAN Number 5702663076167
CHARACTERISTICS
Coupling Ratio 25/25/25/25 %
Type COAX splitter
FREQUENCY
Frequency range 0.95 - 5.45 GHz
GAIN
Gain 4 dB
ELECTRICAL
Number of RF outputs 4
OPERATIONAL
Temperature - operating -10 to +50 °C
Temperature - storage -30 to +60 °C
CONNECTORS
Number of outputs 4
Number of inputs 1
Connector N-connector 50 Ohm
Connector power supply N, through SAT-IF output
MECHANICAL
Dimensions product (H x D x W) 110 x 188 x 38 mm
Packing QTY 1
Packaging Height 0.038 m
Packaging Width 0.110 m
Packaging Depth 0.188 m
Packaging Volume 0.001 m3
Net Weight 0.616 kg
Tara Weight 0.068 kg
Total Weight 0.684 kg
