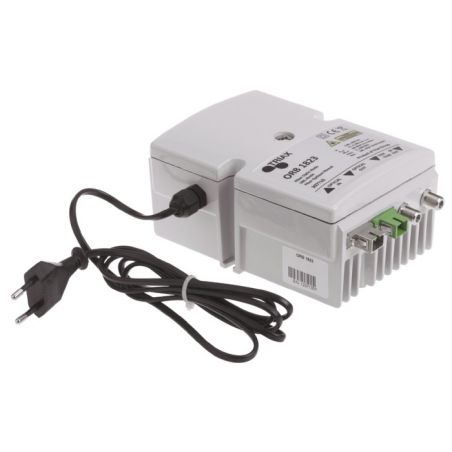

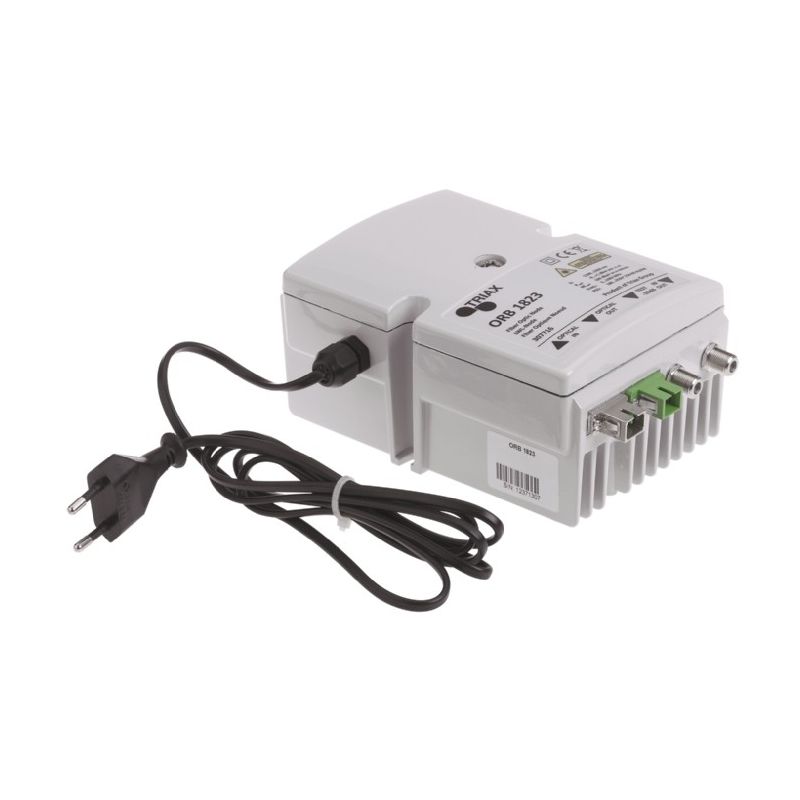

The Triax ORB 1823/1923 Optical Receiver Node provides an excellent and cost optimized two-way HFC/FTTx solution.

It uses pluggable OTBM modules offering a wide range of return-path realizations (1310nm FP/DFB, 1550nm DFB/CWDM)
The ORB 1823 comes with potentiometer adjustments while ORB 1923 uses JXP plug-in modules for output parameter configuration adjustments (gain and equalization).
Both products features an switchable AGC function.

The Triax ORB 1823/1923 provides a built-in multi-colour LED diode for easy input power level identification. It has an optical SC/APC connector input and return-path output, and an RF-output and test point via F-connectors.

Simple construction and easy configuration provides significant cost reduction and simplified maintenance in modern HFC distribution networks.

Features

• Optical frequency: 87 to 862 MHz
• Optical input level: -9 to +1 dBm
• Integrated optical AGC: regulation range from -7 to 0 dBm
• Wavelength: 1100 to 1650 nm
• Output level: 123 dBμV (DIN 45004B)
• Output level: 109 dBμV for 42 channels (CENELEC)
• Output frequency: 47 to 862 MHz
• Adjustable attenuation regulation from 0 to 20 dB
• Equalization regulation through injectable modules not included: JPX 0 dB ... JPX 20 dB.
• Optical level control by LED: 3 colors (red, orange and green)
• IP 40 aluminum compact housing
• Optical connectors: SC / APC
• RF connector: type F
• Optional return channel through OTBM injectable modules not included, frequency from 5 to 65 MHz, gain 20 dB
