ORB optical receiver with optional return channel Triax

Optical frequency: 87 to 862 MHz. Optical input level: -9 to +1 dBm. Integrated optical AGC: regulation range from -7 to 0 dBm. Wavelength: 1100 to 1650 nm

€667.01
Tax included
Reference triax-307717
Brand Triax
Quantity
Available in 4/5 days

Free shipping

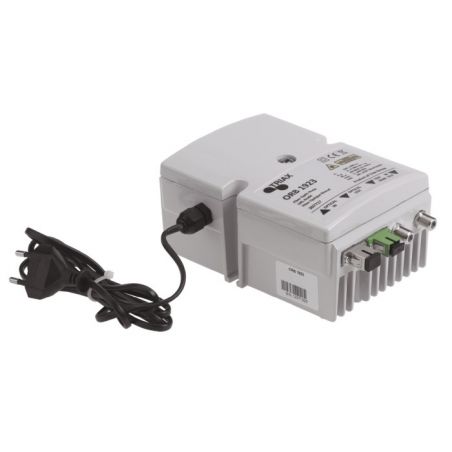

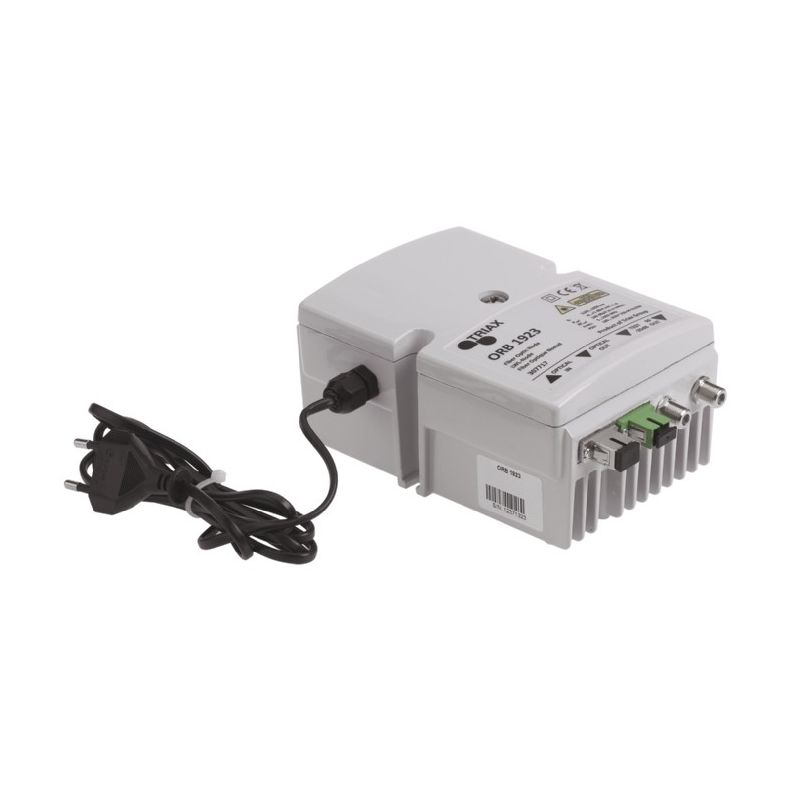

ORB optical receiver with optional return channel Triax

€667.01

The Triax ORB 1923 Optical Fibre Node provides an excellent and cost optimized two-way FTTB or HFC solution.

It uses pluggable OTBM modules offering a wide range of return-path realizations (1310nm FP/DFB, 1550nm DFB/CWDM)
The ORB 1923 uses JXP plug-in modules for adjustments of the output parameter (gain and equalization).
Both products features an switchable AGC function.

The Triax ORB 1823/1923 provides a built-in multi-colour LED diode for easy input power level identification. It has an optical SC/APC connector input and return-path output, and a RF-output and test point via F-connectors.

Simple construction and easy configuration provides significant cost reduction and simplified maintenance in modern HFC distribution networks.

Features

  • Optical frequency: 87 to 862 MHz
  • Optical input level: -9 to +1 dBm
  • Integrated optical AGC: regulation range from -7 to 0 dBm
  • Wavelength: 1100 to 1650 nm
  • Output level: 123 dBμV (DIN 45004B)
  • Output level: 109 dBμV for 42 channels (CENELEC)
  • Output frequency: 47 to 862 MHz
  • Adjustable attenuation regulation from 0 to 20 dB
  • Equalization regulation through injectable modules not included: JPX 0 dB ... JPX 20 dB.
  • Optical level control by LED: 3 colors (red, orange and green)
  • IP 40 aluminum compact housing
  • Optical connectors: SC / APC
  • RF connector: type F
  • Optional return channel through OTBM injectable modules not included, frequency from 5 to 65 MHz, gain 20 dB

Specifications

ORDER INFORMATION
EAN Number 5702663077171
OPTICAL CHARACTERISTICS
Optical input power -9.0 ... +1.0 / max. +3.0 dBm
Optical Return Loss >40.0 dB
Eq. Input Noise Current <8.0 pA/√Hz
Reception wavelength 1100...1650 nm
CHARACTERISTICS
AGC (Automatic Gain Control) -6.0...0 dB
Output level CTB @ 60 dB IMD (42 ch) flat 123 dBµV
Output level CSO @ 60 dB IMD (42 ch) flat 109 dBµV
Output level stability ± 1.0 dB
Test point -20 dB
FREQUENCY
Frequency response ± 1.0 dB
Frequency range 47...862 MHz
Frequency range return path (depending on modules) 5...65 MHz
GAIN
Gain flatness ± 0.75 dB
LOSS
Equalization JXP plug-in 0...20
RETURN LOSS
Return Loss > 18 dB
ELECTRICAL
Number of receivers 1
OPERATIONAL
AC Supply voltage 180...253 VAC
Power Consumption (typ.) 9 W
Operating temperature range -29 ... +60 °C
IP Housing protection class IP 64
CONNECTORS
Connector Type F-female
Output connectors (for RF) F-female type
Connector Optical Optical - SC/APC
MECHANICAL
Product Height 155 mm
Product Depth 75 mm
Product Width 107 mm
Remarks Optical power indicator: Orange: Pin <-7.0 Green : -7.0 0
Packing QTY 1
Packaging Height 0.155 m
Packaging Width 0.107 m
Packaging Depth 0.075 m
Packaging Volume 0.001 m3
Net Weight 1.02 kg
Tara Weight 0.095 kg
Total Weight 1.12 kg
