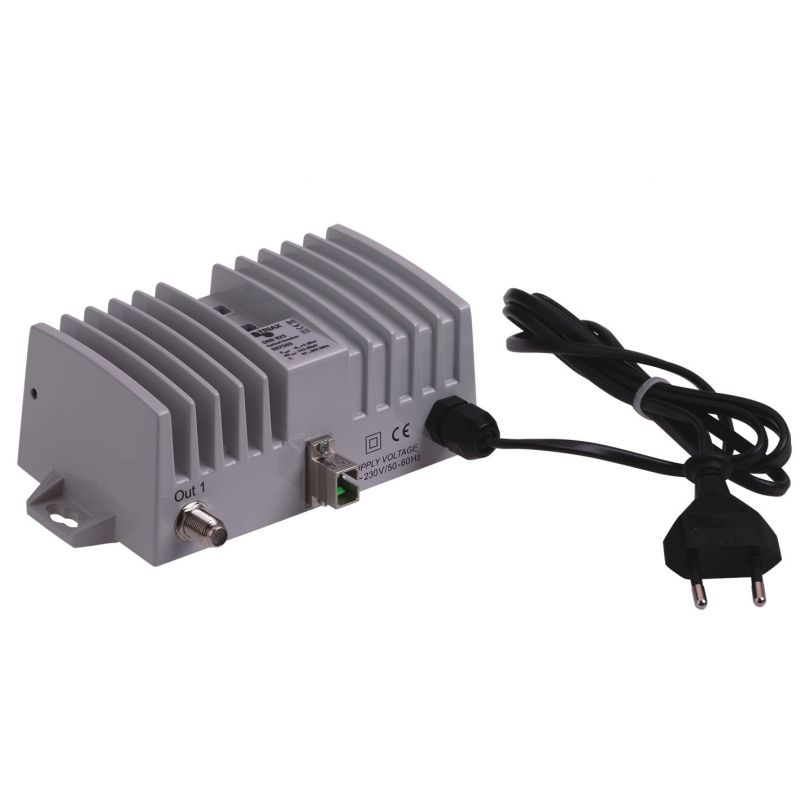

Optical receiver 47 to 862 MHz Triax ORB
Easy configuration - potentiometer (823), or universal JXP modules (823/923), built-in CAG, indication of optical input power through 3 levels of LED. High output level (110 dBμV - 42 CENELEC channels), very low power consumption & lt; 5.5W, 3 types of surge protection, Switching power supply (180-253 VAC), cast iron housing.
€374.80
Tax included
Reference
triax-307563
Brand
Triax
Optical receiver 47 to 862 MHz Triax ORB
€374.80
Optical Receiver
Features
- Optical frequency: 87 to 862 MHz
- Optical input level: -8 to +1 dBm
- Integrated optical AGC: regulation range from -6 to 0 dBm
- Wavelength: 1100 to 1650 nm
- Output level: 123 dBμV (DIN 45004B)
- Output level: 110 dBμV for 42 channels (CENELEC)
- Output frequency: 47 to 862 MHz
- Regulation of attenuation and equalization through injectable modules not included: JPX 0 dB ... JPX 20 dB.
- Optical level control by LED: 3 colors (red, orange and green)
- IP 40 aluminum compact housing
- Optical connectors: SC / APC
- RF connector: type F
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663075634 |
| OPTICAL CHARACTERISTICS | |
| Optical input power | -8.0 ... +1.0 dBm |
| Reception wavelength | 1100...1650 nm |
| Optical Return Loss | >40.0 dB |
| CHARACTERISTICS | |
| AGC (Automatic Gain Control) | -6.0...0 dB |
| Max. output level | 123 dBµV |
| Output level CSO @ 60 dB IMD (42 ch) flat | 110 dBµV |
| Output level CTB @ 60 dB IMD (42 ch) flat | 110 dBµV |
| Output level stability | ± 1.0 dB |
| FREQUENCY | |
| Frequency range | 47...862 MHz |
| GAIN | |
| Gain flatness | ± 0.75 dB |
| LOSS | |
| Equalization | JXP plug-in 0...20 |
| RETURN LOSS | |
| Return Loss | > 18 dB |
| ELECTRICAL | |
| Number of receivers | 1 |
| OPERATIONAL | |
| Operating temperature range | -20 ... +55 °C |
| AC Supply voltage | 180...253 / 50...60Hz VAC |
| Power Consumption (typ.) | 5.5 W |
| IP Housing protection class | IP 40 |
| CONNECTORS | |
| Connector Optical | Optical - SC/APC |
| Connector Type | F-female |
| Output connectors (for RF) | F-female type |
| MECHANICAL | |
| Product Depth | 56 mm |
| Packaging Depth | 0,080 m |
| Packaging Height | 0,160 m |
| Total Weight | 0,560 kg |
| Packaging Width | 0,100 m |
| Net Weight | 0,515 kg |
| Packing QTY | 1 |
| Remarks | Optical power indicator: Orange: Pin <-6.0 Green : -6.0 0 |
| Tara Weight | 0,045 kg |
| Packaging Volume | 0,001 m3 |
| Product Width | 96 mm |
| Product Height | 155 mm |
Easy configuration - potentiometer (823), or universal JXP modules (823/923), built-in CAG, indication of optical input power through 3 levels of LED. High output level (110 dBμV - 42 CENELEC channels), very low power consumption & lt; 5.5W, 3 types of surge protection, Switching power supply (180-253 VAC), cast iron housing.
