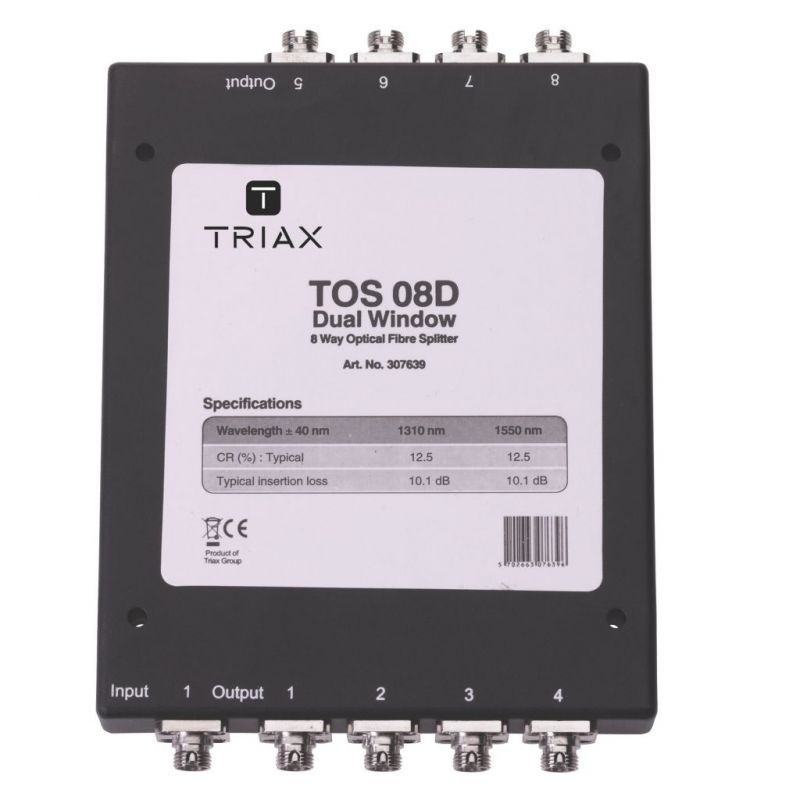

Optical distributor 1 input, 8 metal outputs, FC/PC connectors, distribution attenuation 10.1 dB Triax
The TOS 2D is a symmetrical passive optical distributor (8x12.5) of 8 directions and with FC / PC conecotrores that allows to build passive optical networks (PON).
€273.16
Tax included
Reference
triax-307639
Brand
Triax
Optical distributor 1 input, 8 metal outputs, FC/PC connectors, distribution attenuation 10.1 dB Triax
€273.16
Triax TOS 08D Dual window fibre optical passive splitter/coupler
The Triax fibre optical TOS passive splitter/coupler units let you build passive optical networks (PON) in virtually any size and split ratio
The Triax fibre optical TOS passive splitter/coupler units let you build passive optical networks (PON) in virtually any size and split ratio
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663076396 |
| CHARACTERISTICS | |
| Coupling Ratio | 12.5/12.5/12.5/12.5/12.5/12.5/12.5/12.5 % |
| Wavelength | 1310/1550 nm |
| Wavelength bandwidth | ± 40 MHz |
| LOSS | |
| Insertion loss (typ.) | 10.2 dB |
| CONNECTORS | |
| Connector Optical | Optical - FC/PC |
| Number of inputs | 1 |
| Number of outputs | 8 |
| MECHANICAL | |
| Product Height | 100 mm |
| Product Depth | 25 mm |
| Product Width | 100 mm |
| Packaging Height | 0.043 m |
| Packaging Width | 0.155 m |
| Packaging Depth | 0.2015 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.286 kg |
| Tara Weight | 0.066 kg |
| Total Weight | 0.352 kg |
The TOS 2D is a symmetrical passive optical distributor (8x12.5) of 8 directions and with FC / PC conecotrores that allows to build passive optical networks (PON).
