Optical distributor 1 input, 4 metal outputs, FC / PC connectors, attenuation in distribution 7 dB Triax
The TOS 4D is a symmetrical passive optical distributor (25/25/25/25) of 4 directions and with FC / PC conecotrores that allows to build passive optical networks (PON). Insertion losses: 7 dB
€128.87
Tax included
Reference
triax-307635
Brand
Triax
Optical distributor 1 input, 4 metal outputs, FC / PC connectors, attenuation in distribution 7 dB Triax
€128.87

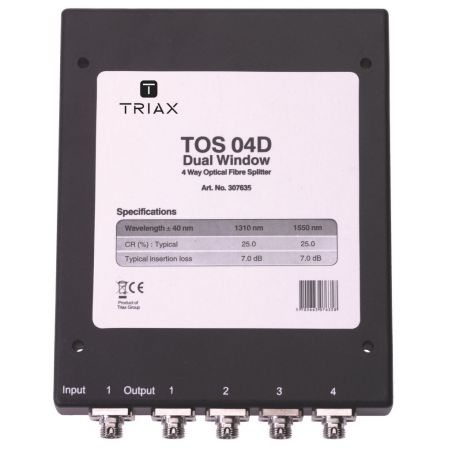

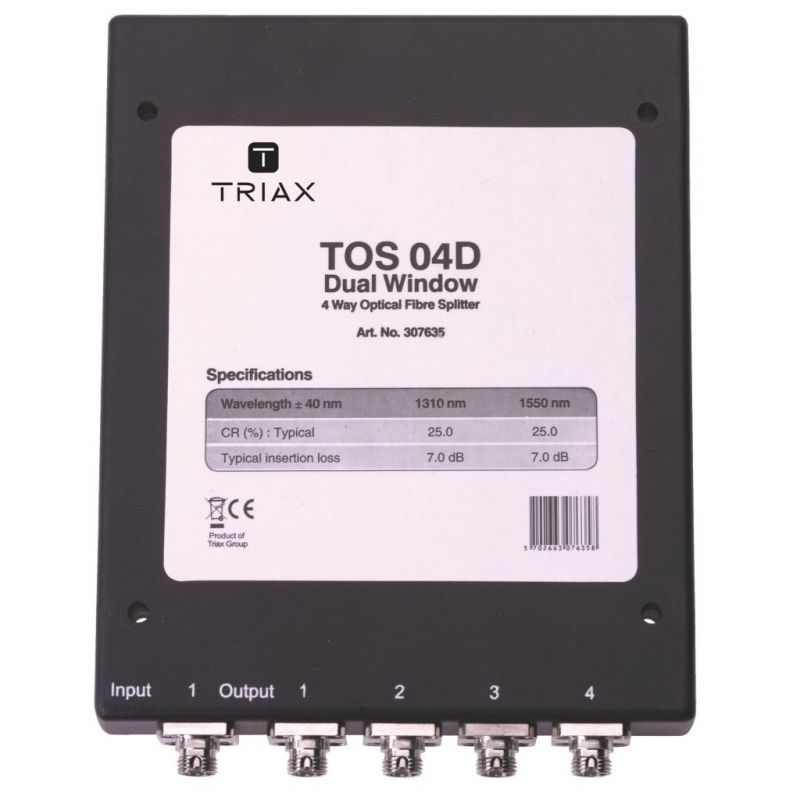

Triax TOS 04D Dual window fibre optical passive splitter/coupler
The Triax fibre optical TOS passive splitter/coupler units let you build passive optical networks (PON) in virtually any size and split ratio.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663076358 |
| CHARACTERISTICS | |
| Coupling Ratio | 25/25/25/25 % |
| Wavelength | 1310/1550 nm |
| Wavelength bandwidth | ± 40 MHz |
| LOSS | |
| Insertion loss (typ.) | 6.9 dB |
| CONNECTORS | |
| Connector Optical | Optical - FC/PC |
| Number of inputs | 1 |
| Number of outputs | 4 |
| MECHANICAL | |
| Product Height | 100 mm |
| Product Depth | 25 mm |
| Product Width | 100 mm |
| Packaging Height | 0,043 m |
| Packaging Width | 0,155 m |
| Packaging Depth | 0,210 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,238 kg |
| Tara Weight | 0,072 kg |
| Total Weight | 0,310 kg |
The TOS 4D is a symmetrical passive optical distributor (25/25/25/25) of 4 directions and with FC / PC conecotrores that allows to build passive optical networks (PON). Insertion losses: 7 dB
