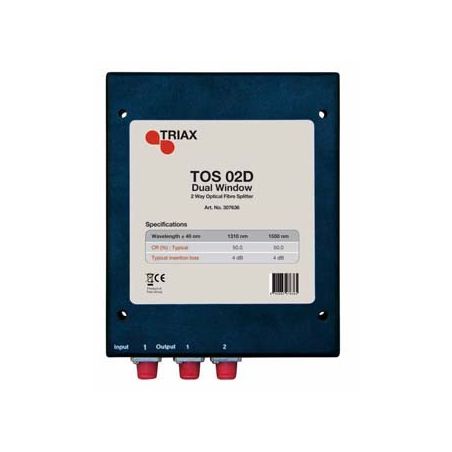

Optical distributor 1 input, 2 metal outputs, FC / PC connectors, distribution attenuation 4 dB Triax
The TOS 2D is a passive optical distributor (50/50) of 2 directions and with FC / PC connectors that allows to build passive optical networks (PON). Insertion losses: 4 dB.
€54.75
Tax included
Reference
triax-307636
Brand
Triax
Optical distributor 1 input, 2 metal outputs, FC / PC connectors, distribution attenuation 4 dB Triax
€54.75
The Triax fibre optical TOS passive splitter/coupler units. Build passive optical networks (PON) in virtually any size and split ratio.
TOS 02 D are balanced FTB couplers with FC/PC connectors in a valid metal sheet housing.
Specifications
| INFORMATION | |
|---|---|
| EAN Number | 5702663076365 |
| CHARACTERISTICS | |
| Type | OPTO balanced FBT |
| Coupling Ratio | 50/50 % |
| Wavelength | 1310/1550 nm |
| Wavelength bandwidth | ± 40 MHz |
| LOSS | |
| Insertion loss (typ.) | 3.6 dB |
| CONNECTORS | |
| Connector | Optical - FC/PC |
| Number of inputs | 1 |
| Number of outputs | 2 |
| MECHANICAL | |
| Dimensions product (H x D x W) | 150x20x114 mm |
| Packing QTY | 1 |
| Packaging Height | 0.43 m |
| Packaging Width | 0.155 m |
| Packaging Depth | 0.215 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.216 kg |
| Tara Weight | 0.072 kg |
| Total Weight | 0.288 kg |
The TOS 2D is a passive optical distributor (50/50) of 2 directions and with FC / PC connectors that allows to build passive optical networks (PON). Insertion losses: 4 dB.
