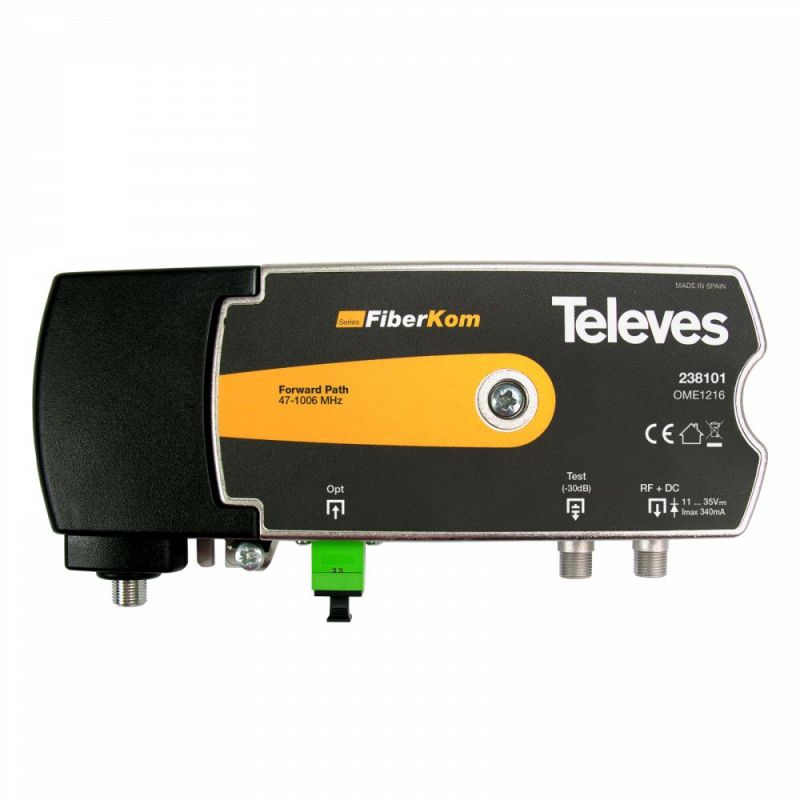

FiberKom optical mini-receiver equipped with OLC technology 1200-1600nm Local powering Televes
Optical mini-receiver for small MDU (Multi Dwelling Unit); receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-1006 MHz) with amplification. Equipped with OLC technology. Perfect for RF Overlay, FTTB, and FTTH applications. Local powering
€194.50
Tax included
Reference
televes-238079
Brand
Televes
FiberKom optical mini-receiver equipped with OLC technology 1200-1600nm Local powering Televes
€194.50
Optical mini-receiver for small MDU (Multi Dwelling Unit); receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-1006 MHz) with amplification.
Equipped with OLC technology.
Perfect for RF Overlay, FTTB, and FTTH applications.
Local powering
Highlights
- The OLC (Optical Level Control) technology automatically adjusts the parameters to achieve a constant output level, irrespective of the channel load
- Equipped with pre-equalization, attenuation, and equalization controls to adapt the output signal to the coaxial network characteristics
- High output voltage (RF amplification) and enhanced C/N
- Wide reception optical range
- Low power consumption
Features
- SC/APC optical connectors, and F-type connectors for RF
Specifications
| Forward path | ||
| Frequency range | MHz | 47 ... 1006 |
| Output impedance | Ohm | 75 |
| Optical input level for OLC | dBm | -8 ... +1dBm |
| Flatness | dB | ± 1 |
| Number of outputs | no. | 1 |
| Typical output level in OLC range | dBμV / dBmV | 100 / 40 |
| CNR | dB | >51 |
| CSO | dB | >60 |
| CTB | dB | >60 |
| Equivalent noise current density at input | pA/ Hz | < 6 |
| Gain control (2dB steps) | dB | 0... 18 |
| Pre-emphasis | dB | 3, 7, 9 |
| Wavelength | nm | 1200 - 1600 |
| Optical return loss | dB | >40 |
| Optical connector | type | SC/APC |
| Max. optical input power before damage | dBm | 2 |
| Optical device | type | InGaAs pin photodiode |
| General | ||
| Power voltage / Max. consumption | V=/mA |
11 / 340.... 35 / 140
|
| Test point | dB | -30 ±1 |
| RF connectors | type | F |
| Housing material | Zamak/ABS | |
| Operating temperature | ºC / ºF | -5...+45 / +23....+113 |
| Index operation | IP | 30 |
| EMC compatibility | EN 50083-2 | |
| Safety | EN 60825-1 | |
Optical mini-receiver for small MDU (Multi Dwelling Unit); receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-1006 MHz) with amplification. Equipped with OLC technology. Perfect for RF Overlay, FTTB, and FTTH applications. Local powering
