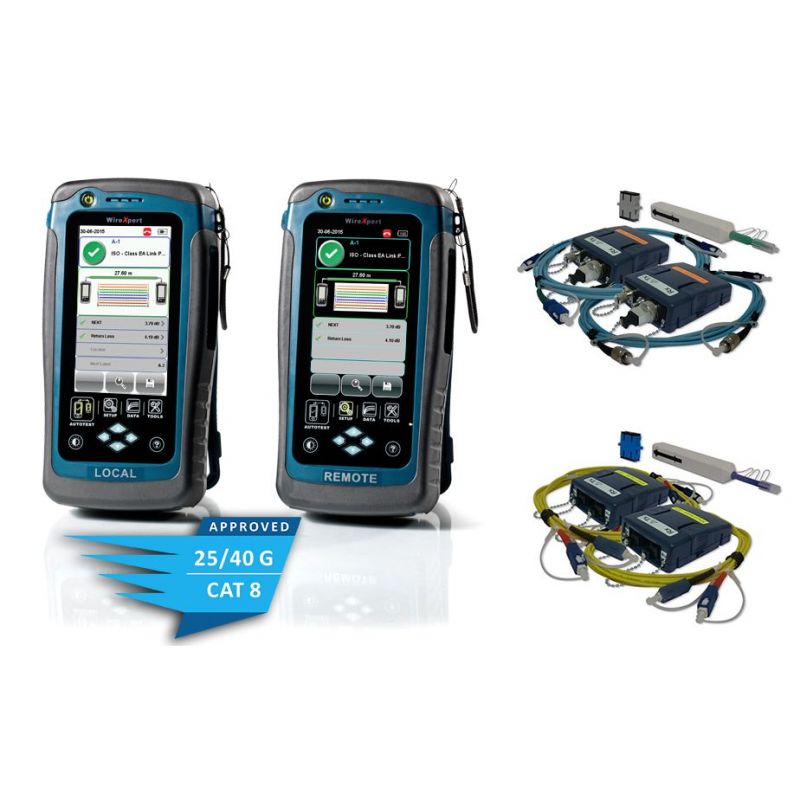

Pack consisting of WIREXPERT 4500-FA, Multimode Encircled Flux Adapters and Singlemode Adapters.

Features WX4500

• The first certifier up to 2500 MHz that supports the new CAT 8 TIA standard and Class I and II of the ISO / IEC draft.
• The most advanced cable certification for all standards: Class D / E / EA / F / FA, CAT 5 / 5e / 6 / 6A / 7 / 7A and the new CAT 8 Class I and II standard from the ISO / IEC draft.
• CAT6A self test in less than 9 seconds.
• Accuracy independently verified by ETL.
• Exceeds ISO level VI (draft) V and IV, IIIe and 2G TIA level IIIe accuracy requirements.
• Endorsed by more than 20 cable manufacturers worldwide.
• Expandable with many options for patch cord testing, Industrial Ethernet, Coax, Fiber, MPO ...
• Allows expanded certifications for 850/1300 nm Multimode and 1310/1550 nm Singlemode fiber optics.
• First MPO fiber certifier for Data Center.
• Generation of reports and documentation of the wiring.
• Label generation on PC using the LBT system (50% time saving).
• The only certifier that meets the necessary requirements to certify Data Centers, buildings and industrial Ethernet.

DataSheet

Multimode Encircled Flux Adapters

New generation multimode fiber adapters and fully compliant fiber certification

A light source and power meter are used to measure the power loss and length of optical cables at 850 and 1300 nm. Multimode fiber certification has often been a controversial topic due to the uncertainty inherent in the measurement process. ISO / IEC and TIA have recently adopted an Encircled Flux (EF) standard that normalizes the launch condition of light sources used in multimode test equipment. The new WireXpert EF-compliant test network adapters ensure compliance with the EF IEC 61280-4-1 EF standard.

• Complies with EF standards IEC- 61280-4-1 and IEC-14763-3
• Provides validation for different modal behaviors from various fiber optic manufacturers
• Interchangeable solid SC, LC and ST adapters
• Allows you to troubleshoot problems with integrated Visual Fault Locator (VFL)
• Improved repeatability of measurements
• Reduction of insertion loss variation between laboratory and field instruments

DATASHEET MULTIMODE ADAPTERS ENCIRCLED FLUX

Single-mode adapters

Fast and intuitive fiber certification with the WireXpert Optical Loss Check Kit

WireXpert's single-mode fiber adapters offer unmatched performance in fiber optic cabling certification tests. In addition to evidence of

6-second dual wavelength and double ended certification, WireXpert provides an intuitive graphical workflow for two-way testing.

WireXpert makes it easy to select the fit reference method and test setup with the benefit of making it easier to track graphical steps.

• 6-second rapid auto test performs dual wavelength certification checks
• Intuitive selection of test setup and reference setting
• 1, 2 or 3 bridge reference
• Impeccable reporting in eXport software with copper test results
• Automated standards-based label creation
• Light source and power meter functions make WireXpert two independent instruments
• Certification single fiber links, plus duplex links
• Independent loopback checks using WireXpert local or remote drives, doubling test capacit

Content

• LOCAL and REMOTE unit
• 2x Li-Ion batteries
• 2x Lanyard touch screen marker pen
• 2x display covers with magnet fixing
• 2x Permanent Link adapters up to CAT 6A
• 2x Permanent Link test hoses up to CAT 6A
• 2x Channel adapters up to CAT 6A
• 1 x USB Pen Drive with manual and eXport Software
• 2x intercom headset
• 2x AC power adapters
• 2x power cords
• Calibration certificates
• Quick Start Guide
• Carry bag
• Multimode Encircled Flux Adapters:
• WX_AD_EF_MM2
• Set of multimode fiber adapters compatible with Encircled Flux (850nm and 1300nm). Includes one pair of FC-SC transparent mode test leads, one pair of SC-SC patch cords, and a cleaning kit
• WX_AC_LC_EF_MM_CORDKIT
• LC Test Lead Kit for Encircled Flux Compatible Multimode Adapter. Includes one pair of transparent mode FC-LC test leads, one pair of LC-LC simplex patch cords, one pair of interchangeable LC adapters, and one pair of duplex LC-LCs adapters
• WX_AC_EF_MM_REFCORD_SC2
• Pair of transparent mode FC-SC test reference leads and one pair of SC-SC patch cords
• Single-mode adapters:
• WX_AD_SM2
• 1 x Pair of Adapters
