SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 19353 AND id_lang = 1 ONT Room module 4x GbE Ethernet/PoE (25.5W) + 2x FXS + 2x USB + RF Overlay Televes
search

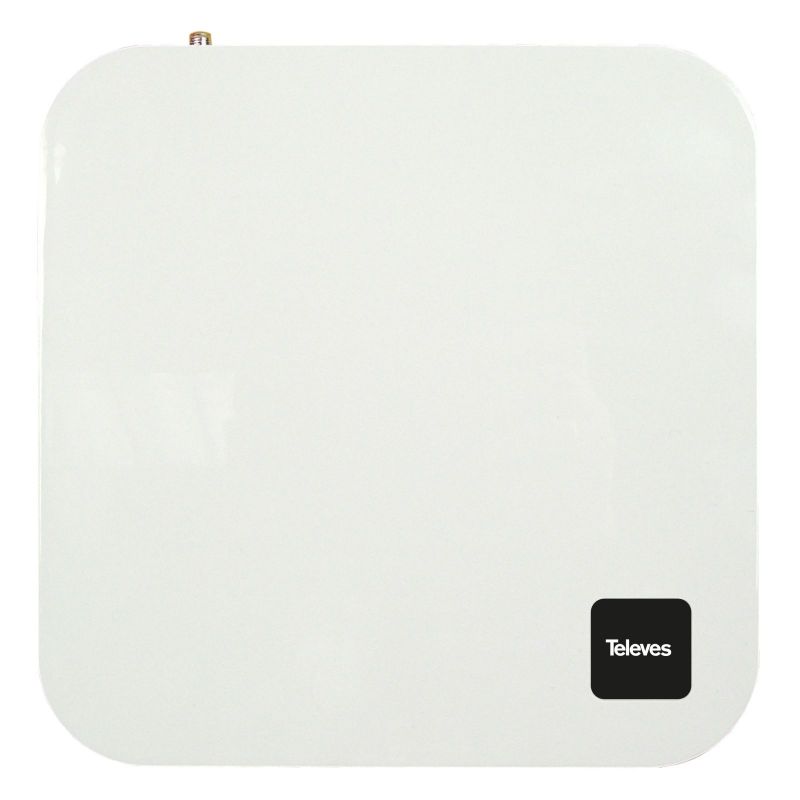

ONT Room module 4x GbE Ethernet/PoE (25.5W) + 2x FXS + 2x USB + RF Overlay Televes

The Optical Network Terminal (ONT) is a customer premises equipment (CPE) in charge of delivering the services at the subscriber's room. The Room type provides 4 GbE Ethernet/PoE ports, 2 FXS ports, 2 USB ports and RF Overlay.

€508.20
Tax included
Reference televes-769509
Brand Televes
Quantity
Available in 24/48h

Free shipping

ONT Room module 4x GbE Ethernet/PoE (25.5W) + 2x FXS + 2x USB + RF Overlay Televes

€508.20

The Optical Network Terminal (ONT) is a customer premises equipment (CPE) in charge of delivering the services at the subscriber's room.

The Room type provides 4 GbE Ethernet/PoE ports, 2 FXS ports, 2 USB ports and RF Overlay.

Stands out for

  • Remote configuration without subscriber intervention
  • Multiple configuration and assembly options

Features

  • Multiple-play signals such as high-speed Internet, VoIP, WiFi, TV (IPTV and/or RF Overlay) are available in their connectors.

What is an ONT/UN?

The Optical Network Terminal ONT (Optical Network Terminal), or Optical Network Unit UN (Optical Network Unit), is the device that is responsible for delivering the services contracted to the operator by the user. The range of terminals obeys the installation criteria and the type of services implemented; thus, Televés has up to 4 ranges of ONT (Basic, Standard, Office and Home).
The network topologies where ONTs are applicable are the so-called FTTx: Fiber-to-the-Home (FTTH), Fiber-to-the-Room (FTTR), Fiberto-the-Building (FTTB), Fiber-to-the -Business (FTTb), Fiber-to-the-Curb (FTTC), etc.
In their connectors are available multiple-play signals provisioned in the header FibreData such as Internet in high speed (HSI: High Speed ​​Internet), VoIP, WiFi, IPTV and/or RF Overlay, etc.

How to choose an ONT/UN?

Within the complete range of optical network equipment, several possibilities are offered depending on the specific connection interface for which it is intended. Below is a comparison of the options offered by each one.

Reference 769501 769502 769509 769514 769507
 Models  ONT  ONU
OFFICE HOME ROOM HOME BASIC
 RF-Overlay  -  ✔  ✔  ✔  -
 WiFi (802.11 b/g/n) (2x2) 2.4  ✔  ✔  -  ✔  -
 WiFi (802.11 b/g/n/ac) (2x2) 2.4/5  -  -  -  ✔  -
 USB 2 2 2 1 -
 FXS  Ports 2 2 2 2 -
 ETH 10/100/1000BASE-T Ports 4 4 4 (PoE - 25.5W) 4 1
 NAT/NAPT  ✔  ✔  ✔  ✔  -
 Firewall  ✔  ✔  ✔  ✔  -
 VPN pass-through  ✔  ✔  ✔  ✔  -
 PPPoE terminal  ✔  ✔  ✔  ✔  -
 OMCI  ✔  ✔  ✔  ✔  -
 TR-069  ✔  ✔  ✔  ✔  -
 CLI  ✔  ✔  ✔  ✔  -
 WebGUI  ✔  ✔  ✔  ✔  -

Specifications

 Reference 769509
 Models  ONT
ROOM
 RF-Overlay  ✔
 WiFi (802.11 b/g/n) (2x2) 2.4  -
 WiFi (802.11 b/g/n/ac) (2x2) 2.4/5  -
 USB 2
 FXS ports 2
 ETH 10/100/1000BASE-T ports 4
 PoE  ✔
 NAT/NAPT  ✔
 Firewall  ✔
 VPN pass-through  ✔
 PPPoE terminal  ✔
 OMCI  ✔
 TR-069  ✔
 CLI  ✔
 WebGUI  ✔
 General
 Powering Vdc  56
 Temperature conditions ºC -5... 45
ºF  23...113
 Relative humidity % 0...95
