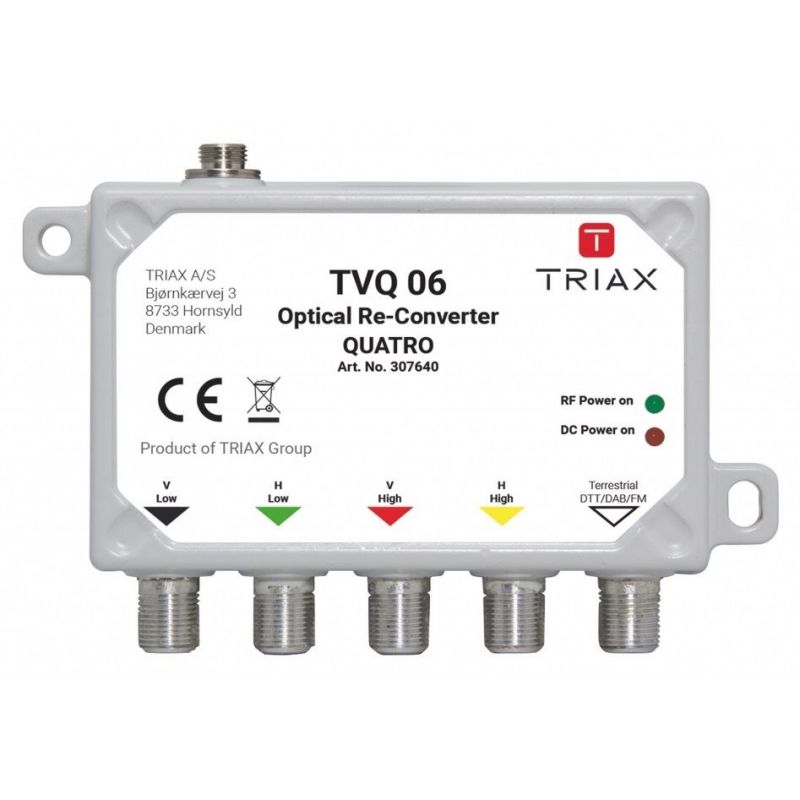

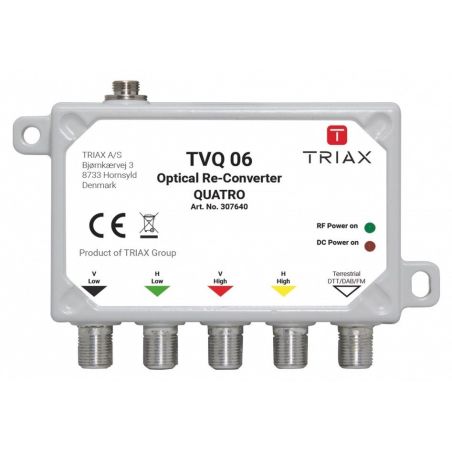

Triax TVC 06 Mini optic converter QUATTRO IF+TERR
Optical converter 1 optical input FC/PC , 1 RF output and four fixed IF outputs, QUATTRO. Optical CAG for constant output level
€311.02
Tax included
Reference
triax-307640
Brand
Triax
Triax TVC 06 Mini optic converter QUATTRO IF+TERR
€311.02
Delivery in 7 days, please contact us to confirm availability.
TVQ 06 is a mini optical-to-coax converter which convert frequency stacked optical signals provided from an Opto-LNB TOL or TOU 232-Kit (IRS 1) sidecar unit into four legacy universal single coax signals like a Quatro LNB. The converter also provide a coax DTT/DAB/FM signal diplexed onto a separate output if it is inserted into the optical transmitter TOU 232 SA.
- Built in AGC which allows a wide dynamic range of the optical signals on Fibre input with less deviation of the RF output level and signal quality.
- Two LED indicators display operational status.
- Easy mounting via a wall baseplate.
- Power supply via RF outputs from multiswitch unit
- Optional external power supply for continuous operation available.
Specs
| TVQ 06 | |
| OPTICAL CHARACTERISTICS | |
| Optical budget for PON (max.) | 19.0(@TOL 32, TOU 232) - 22.0(@TOL 64) dB |
| Optical input power | -12.0(@TOL32,TOU232) -13.5...0(@TOL 64) dBm |
| Optical splitting in PON (max.) | 32(@TOL 32, TOU 232) - 64(@TOL 64) |
| CHARACTERISTICS | |
| AGC (Automatic Gain Control) | 30 dB |
| Output level SAT | 79/74/69 dBµV |
| Output level TER | 75 dBµV |
| Vertical High band (1.95 to 3.0 GHz) | fix, 1100 - 2150 MHz |
| Vertical Low band (0.95 to 1.95 GHz) | fix, 950 - 1950 MHz |
| Wavelength | 1310/1550 nm |
| FREQUENCY | |
| RF frequency range, horizontal polarities | 3.4...5.45 GHz |
| RF frequency range, vertical polarities | 0.95...3.0 GHz |
| TER frequency range DAB | 174...240 MHz |
| TER frequency range DTT | 470...854 MHz |
| TER frequency range FM | 87...108 MHz |
| RETURN LOSS | |
| Return Loss | 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 10...20 VDC |
| External PSU item ID | 307657 (TPS323-20Vdc/1.2A) |
| External PSU | Optional |
| Temperature - operating | -15...+60 °C |
| DC Current consumption (TYP) | <400 mA |
| CONNECTORS | |
| Connector | Optical - FC/PC |
| Connector Optical | Optical - FC/PC |
| Connector Type | Optical - FC/PC |
| Connector IN | Optical - FC/PC |
| Connector OUT | F-female (4xSAT+TER) |
| Output connectors | 5xF (4 x SAT/1 x TER) |
| MECHANICAL | |
| Dimensions product (H x D x W) | 97x61x26 mm |
| Packaging Depth | 0,120 m |
| Packaging Height | 0,030 m |
| Total Weight | 0,400 kg |
| Packaging Width | 0,145 m |
| Net Weight | 0,370 kg |
| Remarks | External power supply TPS 323 (100-240Vac +20Vcd/1,2A) - part No. 307657 - order seperately |
| Tara Weight | 0,030 kg |
| Packaging Volume | 0,001 m3 |
Optical converter 1 optical input FC/PC , 1 RF output and four fixed IF outputs, QUATTRO. Optical CAG for constant output level
