The Optical Network Terminal or ONT is the device in charge of delivering the operator services subscribed by the user. The terminal range conforms to installation and implemented services criteria; Televes has up to 4 ONT ranges of products (Basic, Standard, Office and Home).

ONT can be used on FTTx network topologies: Fiber-to-the-Home (FTTH), Fiber-to-the-Room (FTTR), Fiber-to-the-Building (FTTB), Fiber-to-the-Business (FTTb), Fiber-to-the-Curb (FTTC), etc.

ITUG.984.x-compliant, multiple-play signals provided at the FibreData headend are available at its connectors; signals such as high-speed Internet (High Speed Internet - HSI), VoIP , WiFi, IPTV and/or RF Overlay, etc.

MAIN FEATURES

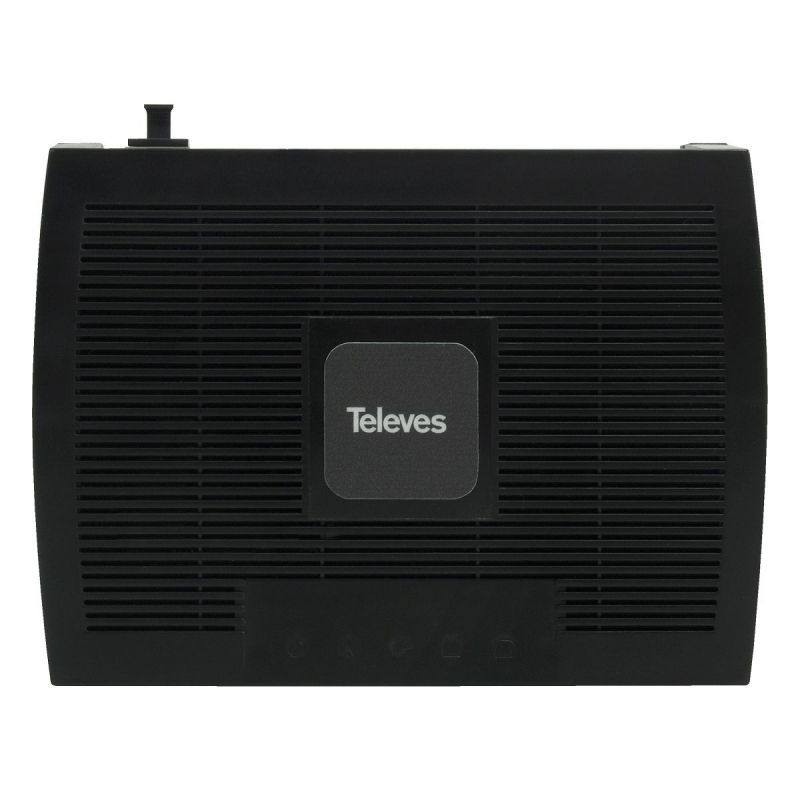

• ONT BASIC: it consists in a bridge-type device that carries out a simple media conversion. It is the perfect solution for environments where there is a LAN network management.
• ONT OFFICE: it provides GbE ports and a WiFi interface. It is therefore a device that allows to directly service several users. One of the references in this range of products includes 802.11ac.
• ONT STANDARD: includes RF Overlay reception on top of ONT BASIC features. With this solution, the device delivers the services to a sub-headend (FTTC/ FTTB / FTTR).
• ONT HOME: it provides TV signal on top of the ONT OFFICE features. One of the references in this range of products includes 802.11ac.

HIGHLIGHTS

• Taking the optical fibre to the user allows for the provision of rates and features difficult to achieve by any other means (2.5Gbps downstream / 1.25Gbps upstream total).
• The network administrator has a series of tools (OMCI, TR-069, etc.) that allow remote management and avoid the need for physical access to the subscriber's equipment.
• Adapting to user requirements, thanks to both network management (VAP, Hotspot, PPPoE, etc.) on the one hand, and service segmentation (VLAN) on the other.
• Multiple-play services over fibre: HSI (High Speed Internet), VoIP (voice) and IPTV/VOD (IPTV and RF Overlay).
• Network equipment belongs to the operator, and allows for service feature management with different ISP.
• Perfect system for special facilities (hotels, housing developments, etc.).
