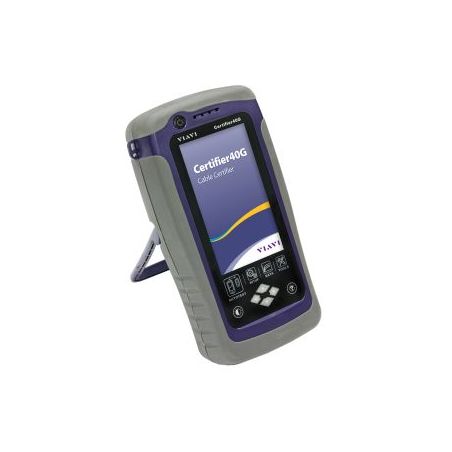

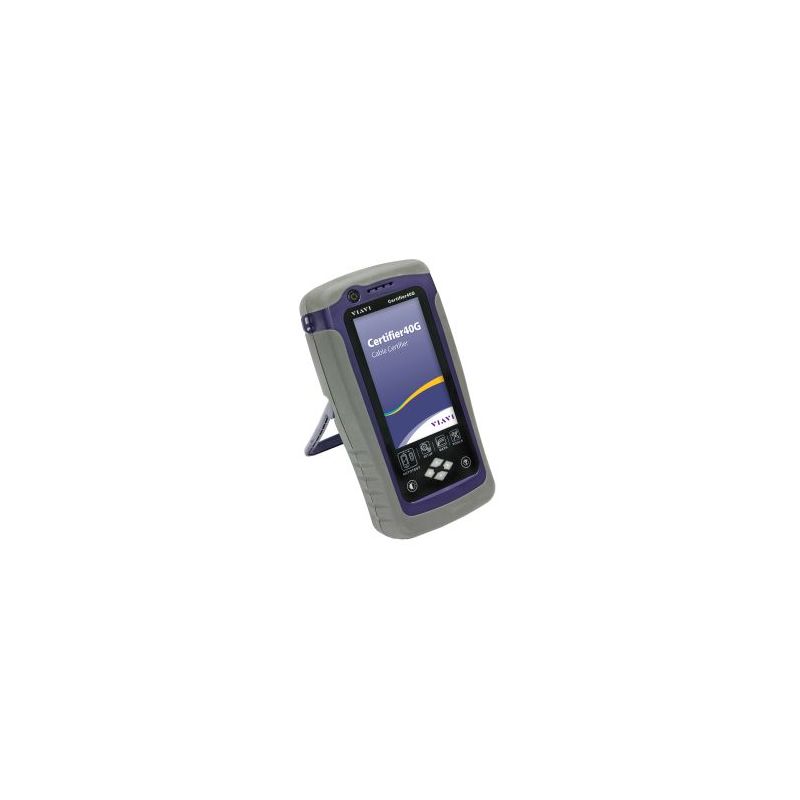

The fastest structured wiring certifier on the market, CERTIFIER 40G according to TIA568 and ISO 11801, the CERTIFICIER 40G is not only a copper certifier for categories 5e, 6 and, 6A has optical modules for multimode and single mode fiber (TIER1 certification) as well as fiber module for certification of MPO / MTP links increasingly common in Data Centers, Possibility of extension to cat 7 / 7A, with Modules GG45 or Tera, certification in Channel and Permanent Link.

The 40G certifier supports up to 2000Mhz frequencies, so this platform is valid for the future Cat-8 (in development) with the expansion of the corresponding modules.

Certifier equipment can run the test both from the local computer and the remote, which represents a significant cost savings when the certification is performed by a single operator,

• Touch screen in color.
• Integrated software for customer report management
• Internal memory of 500Mb, possibility of storing 2098 results in Cat-6 a (for measurements in Cat-6 and Cat-5e plus storage capacity)
• Battery charge duration 8 hours
• External memory of 1Gb

Test MPO with the most advanced cable certifier in the world!

• Adapters for MPO 40/100 G link tests with its 40 G-Ready cable tester
• Save time on output cables with native MPO self-test
• Allows certification test of MPO / MTP links to LC
• Industry-leading 5 second MPO self-test
• Active fiber configuration allows testing with eight MPO fiber configurations
• Quickly and easily identify the type of connection: A, B, C or customized
• Thoroughly manages cable labeling and test results.

Key features

• Testing of certification and resolution of multimode MPO links.
• Aggregation link tests from LC to End of MPO.
• Verification of connectivity from MPO to individual fiber.
• Absolute power and relative level screens.
