SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5328 AND id_lang = 1 Televes FIBERKOM Optical fiber transmitter TX.FO 1310nm SC/APC 3dBm W/RET
Televes FIBERKOM Optical fiber transmitter TX.FO 1310nm SC/APC 3dBm W/RET
search
  • Televes FIBERKOM Optical fiber transmitter TX.FO 1310nm SC/APC 3dBm W/RET

Televes FIBERKOM Optical fiber transmitter TX.FO 1310nm SC/APC 3dBm W/RET

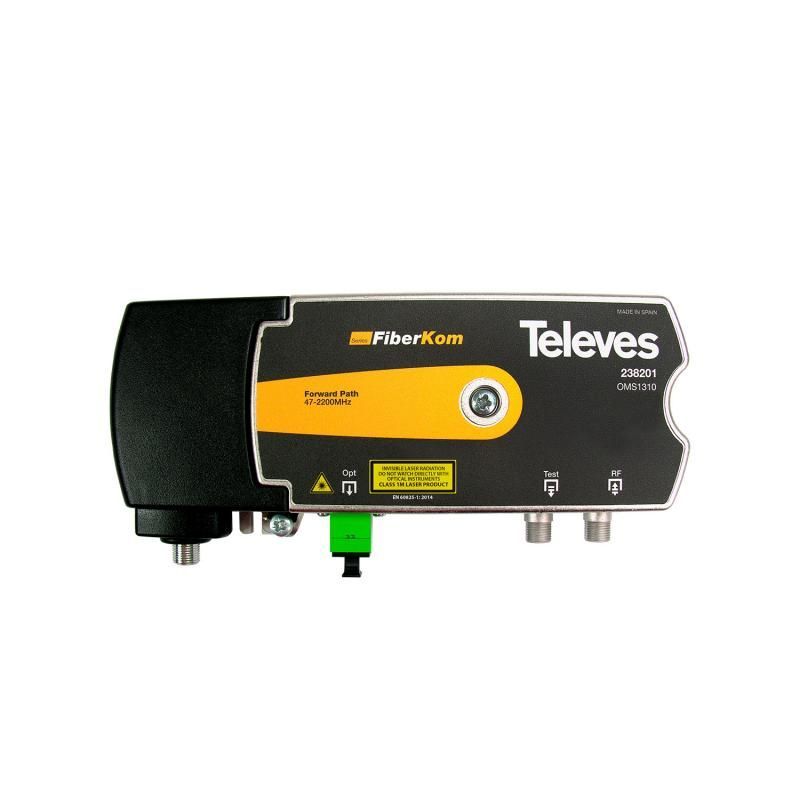

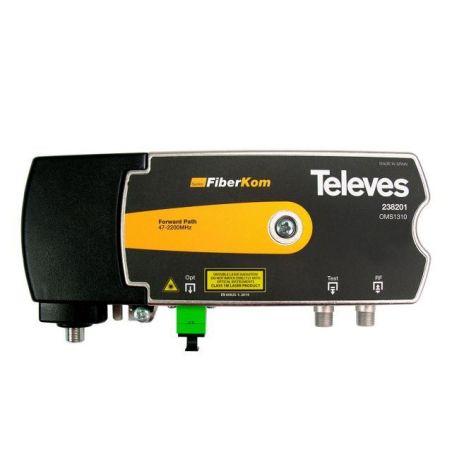

Optical fiber transmitter, which generates an optical output signal of 1310nm of wavelenght with an RF input. It is possible to obtain an optimal output signal working with low input levels (79 & 95 dBµV / 19 & 35 dBmV). The FiberKom design, which is made of Zamak, provide great robustness and shielding. This desing offers a wall assembly for separately installation also.

€466.81
Tax included
Reference televes-238201
Brand Televes
Quantity
Available in 24/48h

Free shipping
Televes FIBERKOM Optical fiber transmitter TX.FO 1310nm SC/APC 3dBm W/RET

Televes FIBERKOM Optical fiber transmitter TX.FO 1310nm SC/APC 3dBm W/RET

€466.81

Optical fiber transmitter, which generates an optical output signal of 1310nm of wavelenght with an RF input. It is possible to obtain an optimal output signal working with low input levels (79 & 95 dBµV / 19 & 35 dBmV). The FiberKom design, which is made of Zamak, provide great robustness and shielding. This desing offers a wall assembly for separately installation also.

Features

  • Frequency range between 47 - 2200MHz, making possible the use for SMATV.
  • Plug-and-play installation.
  • OMI Test point.
  • Optical level indicator with green LED.
  • Coaxial power supply connector, with a maximum voltage of 35V.
 RF  Frequency range MHz 47 ... 2200
 Flatness (47 ... 1200MHz) dB ± 0,75
 Flatness (950 ... 2200MHz) dB ± 2,5
 Input level (47 ... 1200MHz) dBmV / dBµV 19 / 79
 Input level (950 ... 2200MHz) dBmV / dBµV 35 / 95
 CNR/CSO/CTB dB >51/>60/>65
 OMI Test point dBmV / dBµV 4 / 64
 OPTICAL  Optical connector type SP / APC
 Láser type MQW-DFB
 Wavelength nm 1310
 Output power dBm +3
 GENERAL  RF connector type F-female
 Power supply connector type F-female
 Power supply voltage V / mA 11-35 / 120-40
 Operating temperature ºC / ºF -5 ... +45 / +23 ... +113
 Index operation IP 30
 Weight g 400
 Dimensions (xyz) mm 185x80x35

Specifications
