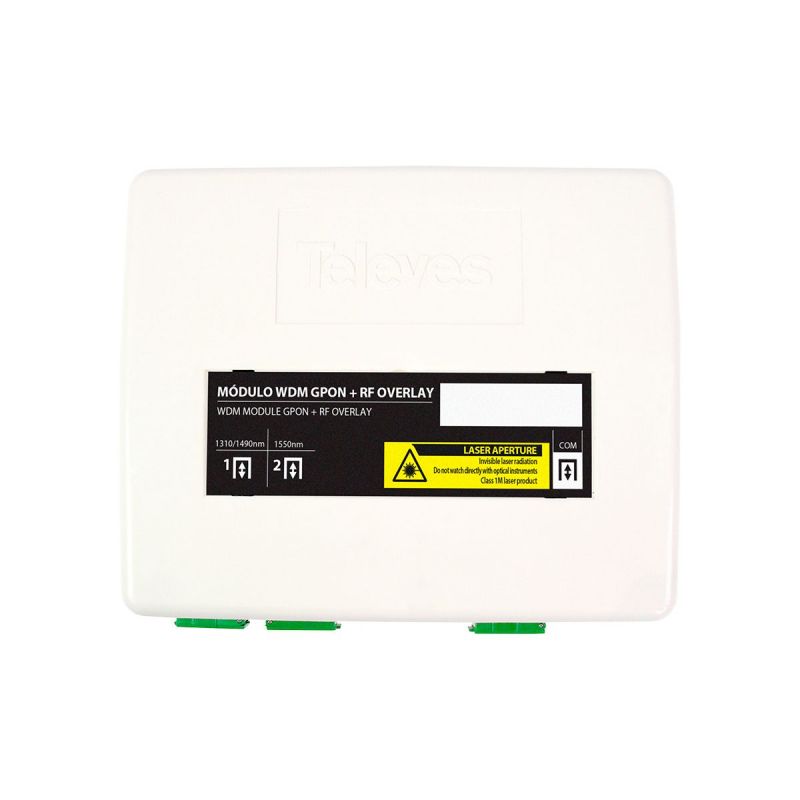

WDM Module GPON+RF(1310/1490nm)-(1550nm) Televes
search
  • WDM Module GPON+RF(1310/1490nm)-(1550nm) Televes

WDM Module GPON+RF(1310/1490nm)-(1550nm) Televes

This module allows multiplexing/demultiplexing of the different wavelengths: (Data 1310/1490nm & RF Overlay 1550nm), so its main function is to separate the lambdas before the ONT/ONU (Optical Network Terminal/Unit). It also allows to mix the Data signal and the RF Overlay signal and deliver the two lambdas through a single fibre.

€70.71
Tax included
Reference televes-234740
Brand Televes
Quantity
Available in 24/48h

Free shipping
WDM Module GPON+RF(1310/1490nm)-(1550nm) Televes

WDM Module GPON+RF(1310/1490nm)-(1550nm) Televes

€70.71

This module allows multiplexing/demultiplexing of the different wavelengths: (Data 1310/1490nm & RF Overlay 1550nm), so its main function is to separate the lambdas before the ONT/ONU (Optical Network Terminal/Unit).
It also allows to mix the Data signal and the RF Overlay signal and deliver the two lambdas through a single fibre.

Features

  • Low return loss thanks to APC polishing.
  • Easy installation thanks to the SC-connector.
  • Compact and resistant case (ABS plastic) white colour (RAL 9003).
  • Wall or DIN-rail mounting.

Specifications

Reference    234740
 Wavelenghts Operating  nm  1260...1620
Transmission  nm 1540...1565
Reflection  nm 1270...1350 & 1475...1505
 Fibre type  Single-Mode  (9/125)
 Connector type & fibre colour COM SC/APC (Black)
Trans. / Reflec. SC/APC (White)
 Insertion loss Trans. / Reflec.  dB <0.5
 Return loss  dB >50
 Max. Power supported dBm +25
 Working temperature ºC -5...+45
