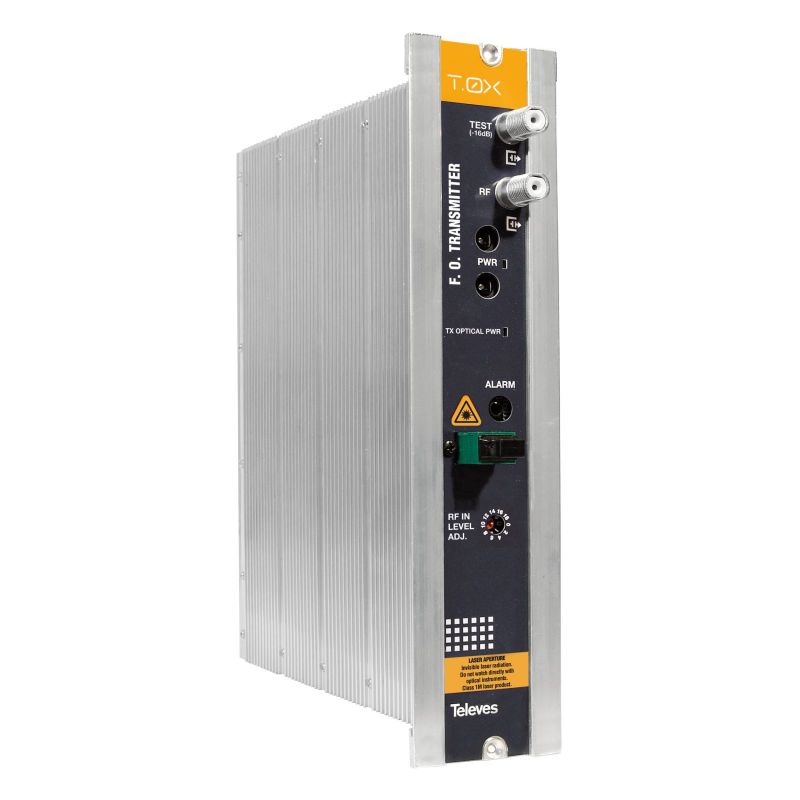

SMATV optical transmitter (without Return Path) 1550nm Televes

Produces an optical signal in the 1550nm-window modulated by the input RF SMATV signal (54 MHz- 2150 MHz). The optical output power is 4dBm. Perfect for RFoG / RF Overlay solutions. Televes 234305

€997.04
Tax included
Reference televes-234305
Brand Televes
Quantity
Available in 24/48h

Free shipping
SMATV optical transmitter (without Return Path) 1550nm Televes

SMATV optical transmitter (without Return Path) 1550nm Televes

€997.04

Produces an optical signal in the 1550 nm-window modulated by the input RF SMATV signal (54 MHz- 2150 MHz). The optical output power is 4dBm.
Perfect for RFoG / RF Overlay solutions.

Highlights

  • SMATV-compatible: up to 2150 MHz input bandwidth
  • RF input level control: optimization of the optical conversion quality parameters
  • Optical power drop alarm

Features

  • Very low equivalent noise conversion
  • Easy to install and use
  • High energy efficiency
  • SC/APC optical connectors, and F-type connectors for RF

Specifications

Reference 234305
RF Input/Output Frequency Range Forward channel MHz 54...2150
Maximum input level for
CSO & CTB >=60 dB		 54 - 870 MHz

dBmV /

dBμV

 25 / 85
950 - 2150 MHz  20 / 80
Input level regulation margin (in 2dB steps) dB 0 - 18
Equivalent input noise EIN 850 MHz dBm/Hz -150
2000 MHz  -146
Return losses dB >= 10
Impedance Ohm 75
Test port attenuation dB 16



Optical output

 Laser tipo MQW-DFB
Wavelength nm 1310 ±20
Output optical power mW/dBm 2.5/4



General

 Powering / Consuption 12Vdc mA 265
24Vdc 140
RF connectors type F female
Optical connectors type SC / APC
Operating temperature

ºC

ºF

-5 ... +45

+23 ... +113
