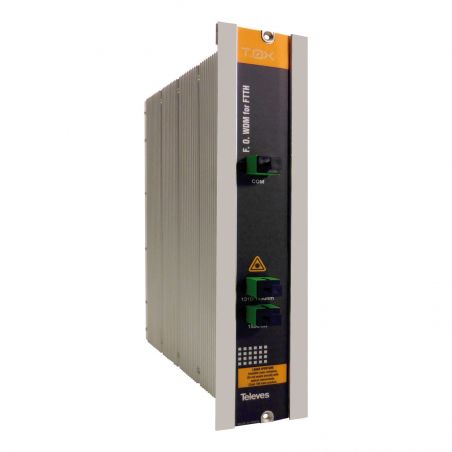

T.0X (WDM) optical multiplexer 1310/1490 - 1550nm Televes
Passive device that multiplexes/demultiplexes two optical inputs: 1310 nm/1490 nm (GPON), and 1550 nm (RF overlay). For application on G/EPON networks. The T.0X format frame allows rack installation for optical fibre headends. Televes 234701
€355.24
Tax included
Reference
televes-234701
Brand
Televes
T.0X (WDM) optical multiplexer 1310/1490 - 1550nm Televes
€355.24
Passive device that multiplexes/demultiplexes two optical inputs: 1310 nm/1490 nm (GPON), and 1550 nm (RF overlay). For application on G/EPON networks.
The T.0X format frame allows rack installation for optical fibre headends.
Features
- Low insertion loss
- SC/APC connectors
Specifications
| Optical Channel Performance | ||||
| Reference | 234701 | |||
| Working wavelength | nm | 1270…1350 1475…1505 |
1540…1565 | |
| Insertion losses (λ) | 1310/1490 nm | dB | 0.5 | > 25 |
| 1610 nm | dB | --- | --- | |
| 1550 nm | dB | > 15 | 0.7 | |
| Potencia óptica máx. | dBm | +17 | +22 | |
| General Optical Performance | ||||
| Return losses | dB | > 50 | ||
| Directivity | dB | > 50 | ||
| PDL | dB | < 0.1 | ||
| PMD | ps | < 0.1 | ||
| Optical conectors | Type | SC / APC | ||
| General Performance | ||||
| Operating Temp |
ºC ºF |
-5 ... +45 +23 ... +113 |
||
| Protection index | IP | 20 | ||
