Coaxdata Optical adapter SFP 1000 Base-X 2 F.O. Televes
search
  • Coaxdata Optical adapter SFP 1000 Base-X 2 F.O. Televes

Coaxdata Optical adapter SFP 1000 Base-X 2 F.O. Televes

Media adapter that allows it to be connected to the Ethernet input of a CoaxData device so that it has access to an ethernet signal via fiber optics. Televes 769210

€99.22
Tax included
Reference televes-769210
Brand Televes
Quantity
Available in 24/48h

Free shipping
Coaxdata Optical adapter SFP 1000 Base-X 2 F.O. Televes

Coaxdata Optical adapter SFP 1000 Base-X 2 F.O. Televes

€99.22

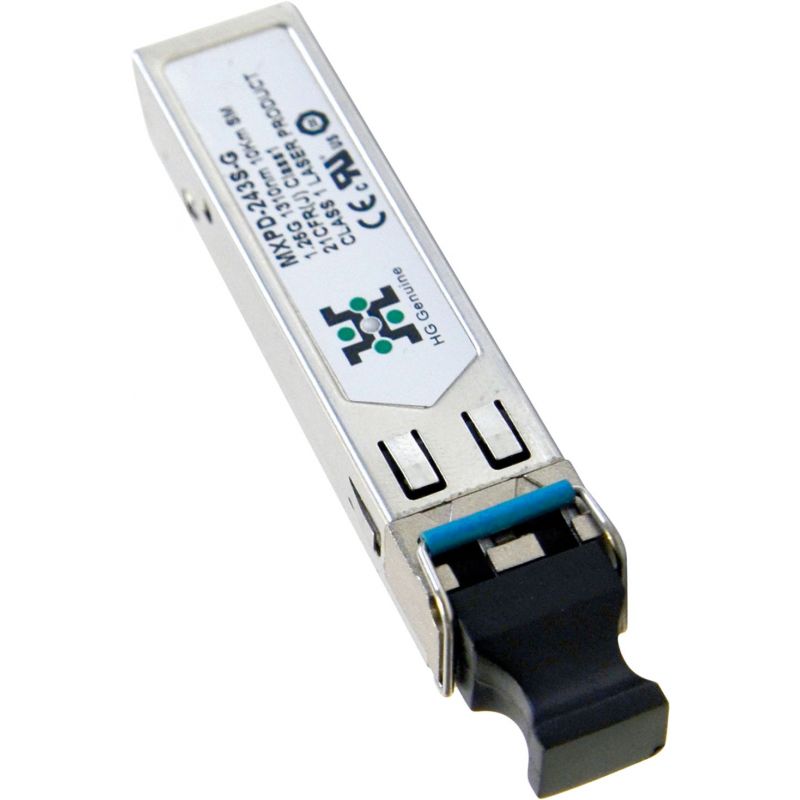

The Ref. 769210 series transceiver is high performance, cost effective module that supports data-rate of 1250Mbps and transmission distance to 10Km. The transceiver meets the Small Form Pluggable (SFP) industry standard package utilizing an integral LCDuplex optical interface connector. The hot pluggable capability of the SFP package allo Opzione Filtro Ottico esterno per i misuratori di campo H45, modello COMPACT & ADVANCE ws the module to be installed at any time with Ref. 769202.

Features

  • Operating data rate 1250Mbps
  • Industry standard Small Form Pluggable (SFP) package
  • Duplex LC connector
  • Single +3.3V power supply
  • Differential LVPECL inputs and outputs
  • TTL signal detect indicator
  • Hot-pluggable capability

Typical Applications

  • Expand Coaxial or PLC interfaces with SFP module 1000 BASE-X through Ref. 769202.
  • Switch to Switch interface.
  • Switched backplane applications.
  • Router/Server interface.
  • Other optical transmission systems.

Specifications

Operating values Units Min. Typ. Max.
Maximum power voltage V 3.13 - 3.46
Operating temperature °C -20 - +60
Data speed Mbps - - 1250
Maximum distance Km - - 10
Optical transmitter Units Min. Typ. Max.
Wavelength Value nm 1260 1310 1360
Bandwidth nm - - 4
Differential input voltage mV 500 - 2400
Optical output power dBm -9 -5 -3
Rise / fall time ps - - 260
Voltage TX Disable V 2.0 - Vcc
TX Fault voltage V 2.0 - Vcc
Optical receiver Units Min. Typ. Max.
Differential output voltage mV 400 - 1600
Optical sensitivity of the receiver dBm - - -19
Maximum optical input power dBm -3 - -
"Loss of signal" voltage V 2 - -
Signal detection range dBm -35 - -20
Signal detection hysteresis dB 0.5 - 6
