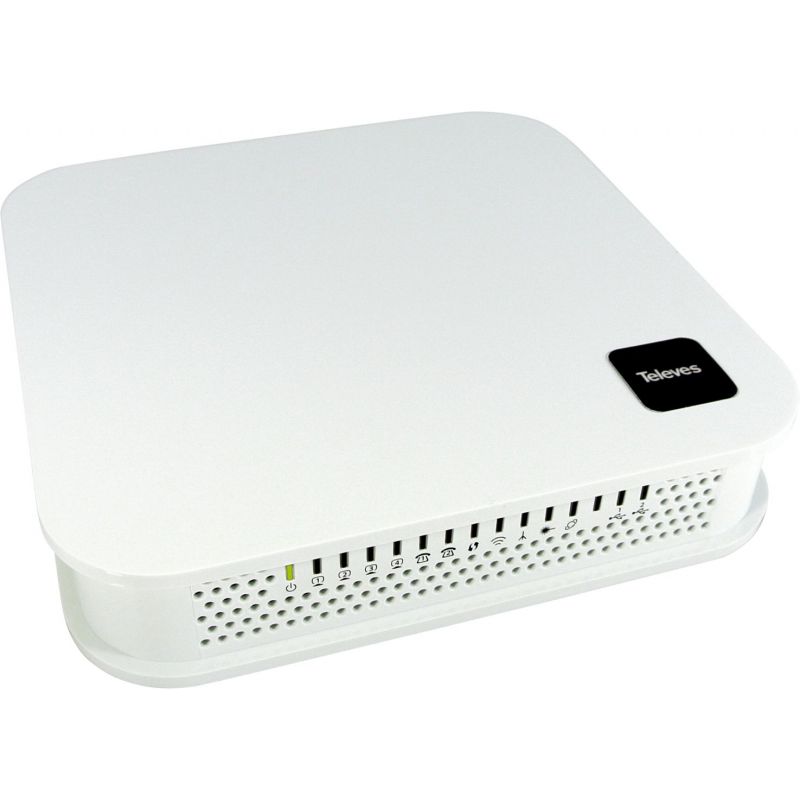

ONT Office Module 4xGbE, 2xFXS, 2xUSB, WLAN Televes
search
  • ONT Office Module 4xGbE, 2xFXS, 2xUSB, WLAN Televes

ONT Office Module 4xGbE+2xFXS+2xUSB+WLAN Televes

The ONT, Optical Network Unit, is a subscriber equipment (CPE), since it is responsible for delivering the contracted services in the subscriber's home. It is of type "Office" so it offers 4 ports GB Ethernet, 2 ports FXS, 2 USB ports, and WiFi (WLAN 802.11 b/g/n, 2.4GHz). Televes 769501

€229.90
Tax included
Reference televes-769501
Brand Televes
Quantity
Available in 24/48h

Free shipping
ONT Office Module 4xGbE, 2xFXS, 2xUSB, WLAN Televes

ONT Office Module 4xGbE+2xFXS+2xUSB+WLAN Televes

€229.90

The ONT, Optical Network Unit, is a subscriber equipment (CPE), since it is responsible for delivering the contracted services in the subscriber's home.
It is of type "Office" so it offers 4 ports GB Ethernet, 2 ports FXS, 2 USB ports, and WiFi (WLAN 802.11 b/g/n, 2.4GHz).

Stands out for

  • Remote configuration without subscriber intervention
  • Multiple configuration and assembly options

Features

  • Multiple-play signals such as high-speed Internet, VoIP, WiFi, TV (IPTV and/or RF Overlay) are available in their connectors.

What is an ONT/UN?

The Optical Network Terminal ONT (Optical Network Terminal), or Optical Network Unit UN (Optical Network Unit), is the device that is responsible for delivering the services contracted to the operator by the user. The range of terminals obeys the installation criteria and the type of services implemented; thus, Televés has up to 4 ranges of ONT (Basic, Standard, Office and Home).
The network topologies where ONTs are applicable are the so-called FTTx: Fiber-to-the-Home (FTTH), Fiber-to-the-Room (FTTR), Fiberto-the-Building (FTTB), Fiber-to-the -Business (FTTb), Fiber-to-the-Curb (FTTC), etc.
In their connectors are available multiple-play signals provisioned in the header FibreData such as Internet in high speed (HSI: High Speed ​​Internet), VoIP, WiFi, IPTV and/or RF Overlay, etc.

How to choose an ONT/UN?

Within the complete range of optical network equipment, several possibilities are offered depending on the specific connection interface for which it is intended. Below is a comparison of the options offered by each one.

Reference 769501 769502 769509 769514 769507
 Models  ONT  ONU
OFFICE HOME ROOM HOME BASIC
 RF-Overlay  -  ✔  ✔  ✔  -
 WiFi (802.11 b/g/n) (2x2) 2.4  ✔  ✔  -  ✔  -
 WiFi (802.11 b/g/n/ac) (2x2) 2.4/5  -  -  -  ✔  -
 USB 2 2 2 1 -
 FXS  Ports 2 2 2 2 -
 ETH 10/100/1000BASE-T Ports 4 4 4 (PoE - 25.5W) 4 1
 NAT/NAPT  ✔  ✔  ✔  ✔  -
 Firewall  ✔  ✔  ✔  ✔  -
 VPN pass-through  ✔  ✔  ✔  ✔  -
 PPPoE terminal  ✔  ✔  ✔  ✔  -
 OMCI  ✔  ✔  ✔  ✔  -
 TR-069  ✔  ✔  ✔  ✔  -
 CLI  ✔  ✔  ✔  ✔  -
 WebGUI  ✔  ✔  ✔  ✔  -

Specifications

Reference  769501
 Model  ONT
OFFICE
 RF-Overlay -
 WiFi (802.11 b/g/n) (2x2) 2.4 ✔
 WiFi (802.11 b/g/n/ac) (2x2) 2.4/5 -
 USB 2
 Puertos FXS 2
 Puertos ETH 10/100/1000BASE-T 4
 NAT/NAPT ✔
 Firewall ✔
 VPN pass-through ✔
 Terminal PPPoE ✔
 OMCI ✔
 TR-069 ✔
 CLI ✔
 WebGUI ✔
 General
Temperature conditions ºC -5... 65
ºF  23...149
RH % 0...95
Consumption W 19
