  • Mini Receptor optico ORH 100 Triax

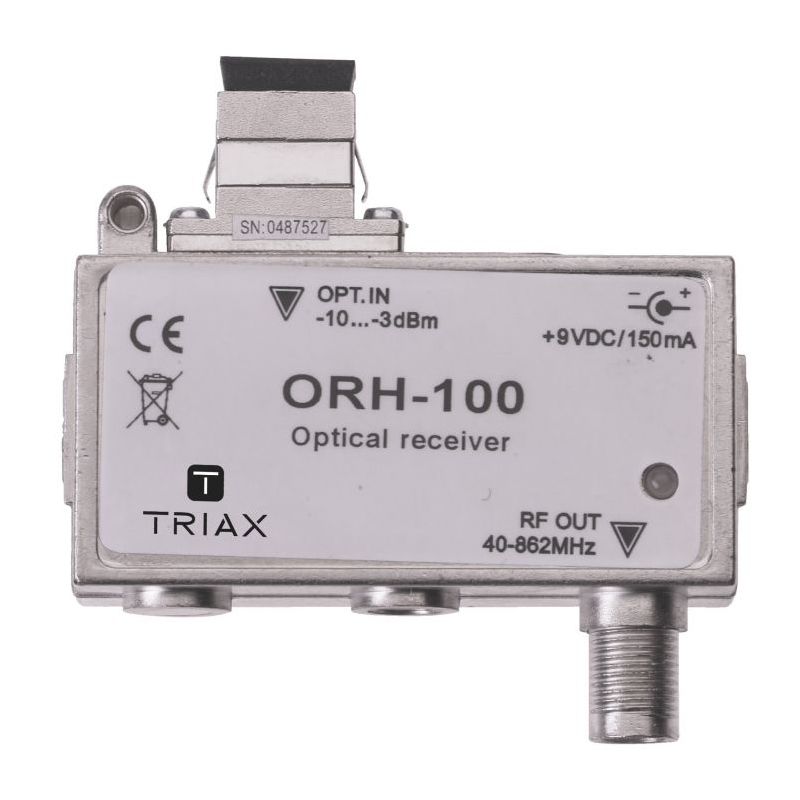

Mini Optical Receiver ORH 100 Triax

The ORH 100 from Triax, is a modern mini optical receiver dedicated for use in FTTH (Fiber To The Home) applications.It is made in a small housing that mounts directly in a simple way. It has no adjustments and is easy to handle and assemble

€139.15
Tax included
Reference triax-307565
Brand Triax
Quantity
Out-of-Stock

Free shipping

ORH 100. Optical micro receiver 5 - 862 MHz FTTH networks.

Features

  • It is made in a small housing that mounts directly in a simple way.
  • It has no adjustments and is easy to handle and assemble.
  • It has a built-in CAG and a 3 LED indication of the optical input level, making it very easy to install correctly.
  • The optical connection is made through the SC / APC connector, and the RF output through an F connector.

Specifications

INFORMATION
EAN Number 5702663075658
OPTICAL CHARACTERISTICS
Optical input power -10.0 ... +1.0 dBm
Optical Return Loss >40.0 dB
Eq. Input Noise Current 6.5 pA/√Hz
Reception wavelength 1100...1650 nm
CHARACTERISTICS
AGC (Automatic Gain Control) -6.0...0 dB
Output level CTB @ 60 dB IMD (42 ch) flat 80 dBµV
Output level CSO @ 60 dB IMD (42 ch) flat 80 dBµV
Output level stability ± 1.0 dB
FREQUENCY
Frequency range 47...862 MHz
GAIN
Gain flatness ± 1.0 dB
RETURN LOSS
Return Loss > 18 dB
ELECTRICAL
Number of receivers 1
OPERATIONAL
DC Operating voltage 9 VDC
DC Current consumption 150 mA
Power Consumption (typ.) < 1.0 W
External PSU Included
Operating temperature range -20 ... +55 °C
IP Housing protection class IP 40
CONNECTORS
Connector Type F-female
Output connectors (for RF) F-female type
Connector Optical Optical - SC/APC
MECHANICAL
Product Height 50 mm
Product Depth 20 mm
Product Width 60 mm
Remarks Optical power indicator: Orange: Pin <-6.0 Green : -6.0 0
Packing QTY 1
Packaging Height 0.050 m
Packaging Width 0.060 m
Packaging Depth 0.020 m
Net Weight 0.100 kg
Tara Weight 0.020 kg
Total Weight 0.120 kg
