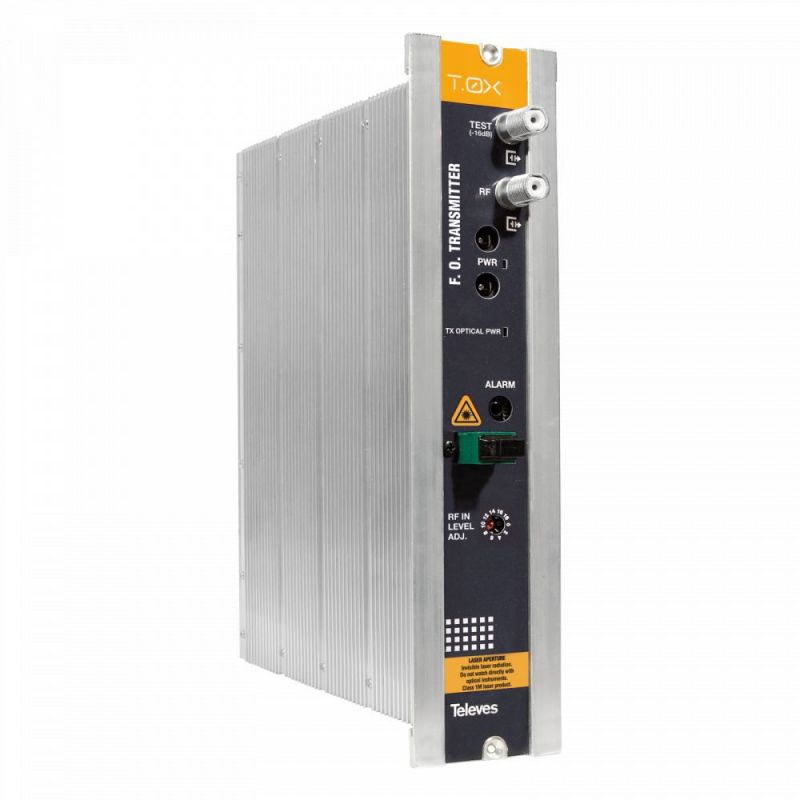

T.0X Optical Transmitter SMATV 1310nm "SC/APC" Po 6dBm without C.Retorno Televes
Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2200 MHz). The optical output power is 6 dBm.
Perfect for RFoG / RF Overlay solutions. Televes 233306
Perfect for RFoG / RF Overlay solutions. Televes 233306
€1,185.92
Tax included
Reference
televes-233306
Brand
Televes
T.0X Optical Transmitter SMATV 1310nm "SC/APC" Po 6dBm without C.Retorno Televes
€1,185.92
Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2200 MHz). The optical output power is 6 dBm.
Perfect for RFoG / RF Overlay solutions.
Perfect for RFoG / RF Overlay solutions.
Highlights
- SMATV-compatible: up to 2200 MHz input bandwidth
- RF input level control: optimization of the optical conversion quality parameters
- Optical power drop alarm
Features
- Very low equivalent noise conversion
- Easy to install and use
- High energy efficiency
- SC/APC optical connectors, and F-type connectors for RF
Specifications
| RF parameters | Frequency range | MHz | 47 - 2200 | |
| Flatness | 47-1200 MHz | dB | ±0.5 | |
| 950-2200 MHz | ±2 | |||
| Impedance | Ohm | 75 | ||
| Input level | RF | dBμV | 73 - 93 | |
| SAT | 63 - 83 | |||
| Manual gain adjustment | dB | 0 ... 14 (2dB steps) | ||
| C/N | dB | >51 | ||
| CSO | dB | >60 | ||
| CTB | dB | >60 | ||
| Optical | Laser | type | MQW - DFB | |
| Wavelength | nm | 1310 ± 10 | ||
| Output optical power | dBm | 6 | ||
| General | RF connectors | type | “F” female | |
| Optical connector | SC/APC | |||
| Consumption | 12 Vdc | mA | 260 | |
| 24 Vdc | 155 | |||
| Operating temperature | ºC | -5 ... +45 | ||
