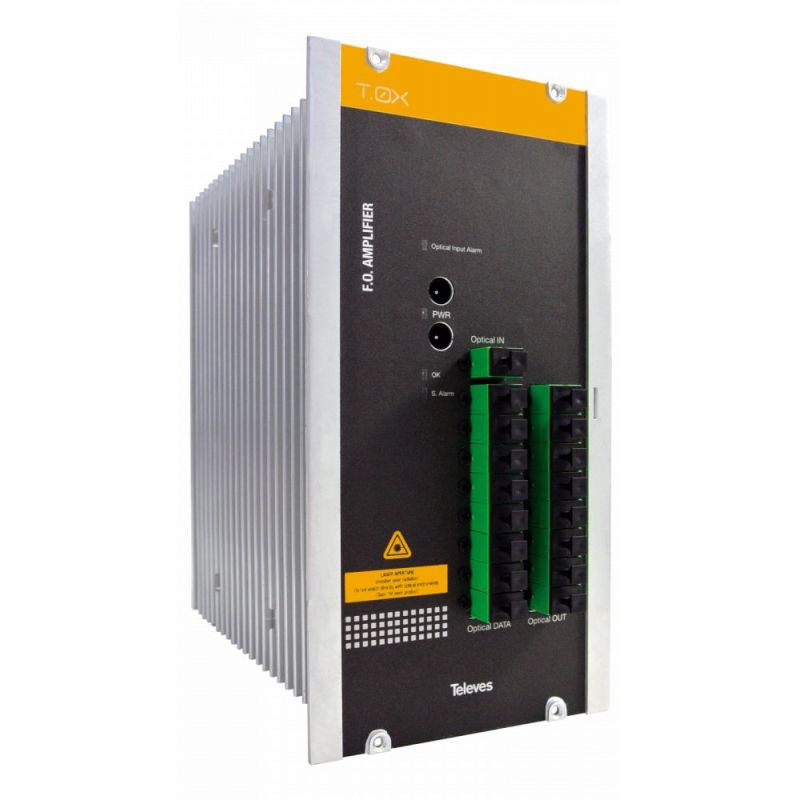

T.0X Amplifier/Optical Multiplexer 1550nm 8S "SC/APC" 20dBm Televes
search
  • T.0X Amplifier/Optical Multiplexer 1550nm 8S "SC/APC" 20dBm Televes

T.0X Amplifier/Optical Multiplexer 1550nm 8S "SC/APC" 20dBm Televes

The module amplifies the 1550 nm optical signal producing an output power of 20 dBm. Equipped with WDM, it provides 8 1310 nm/1490 nm-inputs that multiplex the amplified 1550 nm-signal, providing 8 1310 nm/1490 nm/1550 nm-outputs to be used in a GPON headend (usually OLT512).  Televes 234228

€11,654.72
Tax included
Reference televes-234228
Brand Televes
Quantity
Available in 24/48h

Free shipping
T.0X Amplifier/Optical Multiplexer 1550nm 8S "SC/APC" 20dBm Televes

T.0X Amplifier/Optical Multiplexer 1550nm 8S "SC/APC" 20dBm Televes

€11,654.72
The module amplifies the 1550 nm optical signal producing an output power of 20 dBm. Equipped with WDM, it provides 8 1310 nm/1490 nm-inputs that multiplex the amplified 1550 nm-signal, providing 8 1310 nm/1490 nm/1550 nm-outputs to be used in a GPON headend (usually OLT512).
Based on YEDFA (Erbium and ytterbium doped fibre) technology, it provides a high gain, a higher optical power, and a low noise factor.

Highlights

  • Outstanding optical output power of 20 dBm
  • Equipped with WDM for the multiplexing of RF Overlay with GPON signals
  • -10 dBm to +10 dBm input range
  • Status LED indicators

Features

  • Optical amplification for the RF service over fibre (RF Overlay) on GPON networks
  • Suitable for long distances
  • SC/APC connectors

Specifications

OPTICAL

Vídeo Overlay

INPUT

 Input optical power range dBm -10...+10
Input connector tipo 1x SC / APC
Operating wavelenght nm 1548...1565

OPTICAL

GPON

INPUT

 Insertion loss(1310nm & 1490 nm) dB <1
Input connector tipo 8 x SC/APC
Operating GPON wavelenght nm 1310±20 - 1490±20
OPTICAL OUTPUT Output optical power per port (1550nm) dBm 20 ± 0.5
Output connector tipo 8 x SC/APC
Noise figure dB Tip. 5 (Pin=0 dBm 1550nm). Máx 7.
Optical return losses dB ≥ 40
GENERAL Powering Vdc 24
Máx. Consumption @ 24 Vdc mA 700
Ingress protection level IP 20
