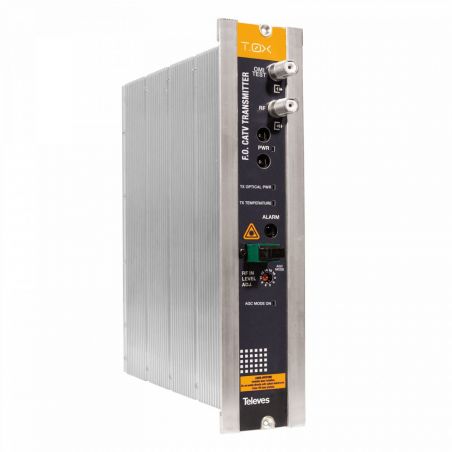

CATV optical transmitter with CAG without C.Retorno 1310nm Po 10dBm Televes
search
  • CATV optical transmitter with CAG without C.Retorno 1310nm Po 10dBm Televes

CATV optical transmitter with CAG without C.Retorno 1310nm Po 10dBm Televes

Produces an optical signal in the 1310 nm-window modulated by the input RF CATV signal (47 MHz - 1100 MHz). The optical output power is 10 dBm. Equipped with automatic gain control (AGC). Stable in terms of temperature, thanks to the laser temperature control circuit. Perfect for RFoG / RF Overlay solutions. Televes 234801

€2,226.02
Tax included
Reference televes-234801
Brand Televes
Quantity
Available in 24/48h

Free shipping
CATV optical transmitter with CAG without C.Retorno 1310nm Po 10dBm Televes

CATV optical transmitter with CAG without C.Retorno 1310nm Po 10dBm Televes

€2,226.02
Produces an optical signal in the 1310 nm-window modulated by the input RF CATV signal (47 MHz - 1100 MHz). The optical output power is 10 dBm.
Equipped with automatic gain control (AGC).
Stable in terms of temperature, thanks to the laser temperature control circuit.
Perfect for RFoG / RF Overlay solutions.

Highlights

  • MATV-compatible: up to 1100 MHz bandwidth
  • OMI (Optical Modulation Index) test point
  • Optical power and laser temperature LED indicators
  • MQW-DFB refrigerated laser
  • AGC with operation LED indicator
  • Wide range of input power values
  • Optical power drop alarm

Features

  • Very low equivalent noise conversion
  • Easy to install and use
  • High energy efficiency
  • SC/APC optical connectors, and F-type connectors for RF

Specifications

Optical transmitter
RF parameters RF frequency range MHz 47-1100
RF input level dBμV/dBmV 75-90 / 15-30
RF manual gain adjust dB 0 ... 14 (steps 2 dB)
CAG control dB 15
Flatness dB ±1
Return losses dB ≥ 15 (typ)
Impedance Ohm 75
CSO (CENELEC 42) note 1 dB 60
CTB (CENELEC 42) note 1 dB 60
C/N note 1 dB >52
Optical Laser type MQW-DFB cooled
Wavelength nm 1310+/-10
Optical power dBm 10
Optical return losses dB 50
General RF connectors type F female
Optical connectors SC/APC
Supply voltage Vdc 12-24
Power consumption mA 360-220
Operation temperature ºC / ºF -5…….45 / 32…….113
