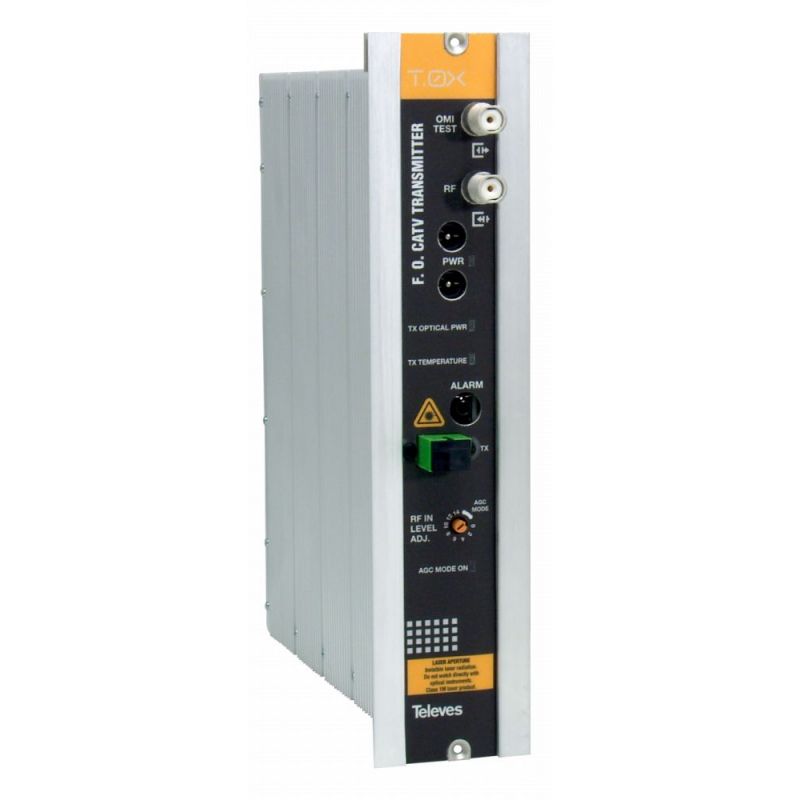

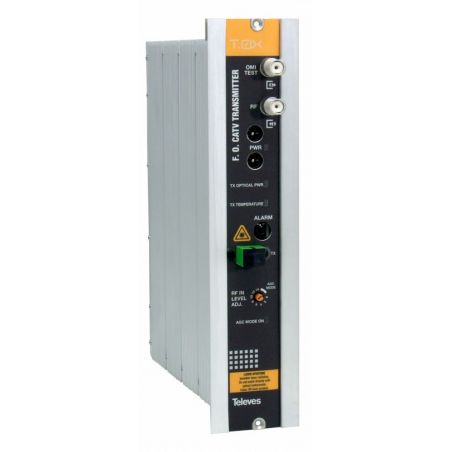

CATV optical transmitter with CAG without C.R 1550nm Po 10dBm Televes
Produces an optical signal in the 1550 nm-window modulated by the RF input signal (47 MHz - 1100 MHz). The optical output power is 10 dBm. Equipped with automatic gain control (AGC). Furthermore, it is stable in terms of temperature, thanks to the laser temperature control circuit. Perfect for RFoG solutions, and as RF Overlay transmitter on GPON networks. Televes 234811
€2,356.89
Tax included
Reference
televes-234811
Brand
Televes
CATV optical transmitter with CAG without C.R 1550nm Po 10dBm Televes
€2,356.89
Produces an optical signal in the 1550 nm-window modulated by the RF input signal (47 MHz - 1100 MHz). The optical output power is 10 dBm.
Equipped with automatic gain control (AGC).
Furthermore, it is stable in terms of temperature, thanks to the laser temperature control circuit.
Perfect for RFoG solutions, and as RF Overlay transmitter on GPON networks.
Equipped with automatic gain control (AGC).
Furthermore, it is stable in terms of temperature, thanks to the laser temperature control circuit.
Perfect for RFoG solutions, and as RF Overlay transmitter on GPON networks.
Highlights
- MATV-compatible: up to 1100 MHz bandwidth
- OMI (Optical Modulation Index) test point
- Optical power and laser temperature LED indicators
- MQW-DFB refrigerated laser
- AGC with operation LED indicator
- Wide range of input power values
- Optical power drop alarm
Features
- Very low equivalent noise conversion
- Easy to install and use
- High energy efficiency
- SC/APC optical connectors, and F-type connectors for RF
Specifications
| Optical transmitter | |||
| RF parameters | RF frequency range | MHz | 47-1100 |
| RF input level | dBμV/dBmV | 90 / 30 | |
| RF manual gain adjust | dB | 0 ... 14 (steps 2 dB) | |
| CAG control | dB | 15 | |
| Flatness | dB | ±1 | |
| CSO (CENELEC 42) note 1 | dB | 60 | |
| CTB (CENELEC 42) note 1 | dB | 60 | |
| Optical | Laser | type | MQW-DFB cooled |
| Wavelength | nm | 1550 ±20 | |
| Optical power | dBm | 10 | |
| General | RF connectors | tipo | F female |
| Optical connectors | SC/APC | ||
| Supply voltage | Vdc | 12-24 | |
| Power consumption | mA | 360-220 | |
| Operation temperature |
ºC ºF |
-5 … +45 23 ... 113 |
|
Produces an optical signal in the 1550 nm-window modulated by the RF input signal (47 MHz - 1100 MHz). The optical output power is 10 dBm. Equipped with automatic gain control (AGC). Furthermore, it is stable in terms of temperature, thanks to the laser temperature control circuit. Perfect for RFoG solutions, and as RF Overlay transmitter on GPON networks. Televes 234811
