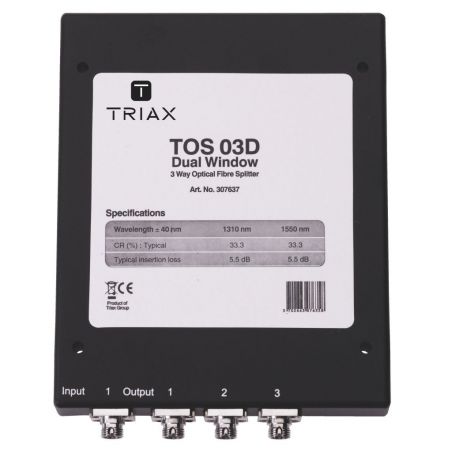

Optical distributor 1 input, 3 metal outputs, FC/PC connectors, distribution attenuation 5.6 dB Triax
The TRIAX fibre optical TOS passive splitter/coupler units. Build passive optical networks (PON) in virtually any size and split ratio. TOS 03 D are 3 way balanced FBT couplers with FC/PC connectors in a valid metal sheet housing. Insertion losses: 5.6dB.
€107.99
Tax included
Reference
triax-307637
Brand
Triax
Optical distributor 1 input, 3 metal outputs, FC/PC connectors, distribution attenuation 5.6 dB Triax
€107.99
The TRIAX fibre optical TOS passive splitter/coupler units. Build passive optical networks (PON) in virtually any size and split ratio.
TOS 03 D are 3 way balanced FBT couplers with FC/PC connectors in a valid metal sheet housing.
Specifications
| INFORMATION | |
|---|---|
| EAN Number | 5702663076372 |
| CHARACTERISTICS | |
| Type | OPTO Coupler balanced |
| Coupling Ratio | 3x 33.3 % |
| Wavelength | 1310/1550 nm |
| Wavelength bandwidth | ± 40 MHz |
| LOSS | |
| Insertion loss (typ.) | 5.6 dB |
| CONNECTORS | |
| Connector | Optical - FC/PC |
| Number of inputs | 1 |
| Number of outputs | 3 |
| MECHANICAL | |
| Dimensions product (H x D x W) | 150x20x114 mm |
| Packing QTY | 1 |
| Packaging Height | 0.43 m |
| Packaging Width | 0.155 m |
| Packaging Depth | 0.210 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.228 kg |
| Tara Weight | 0.072 kg |
| Total Weight | 0.300 kg |
The TRIAX fibre optical TOS passive splitter/coupler units. Build passive optical networks (PON) in virtually any size and split ratio. TOS 03 D are 3 way balanced FBT couplers with FC/PC connectors in a valid metal sheet housing. Insertion losses: 5.6dB.
