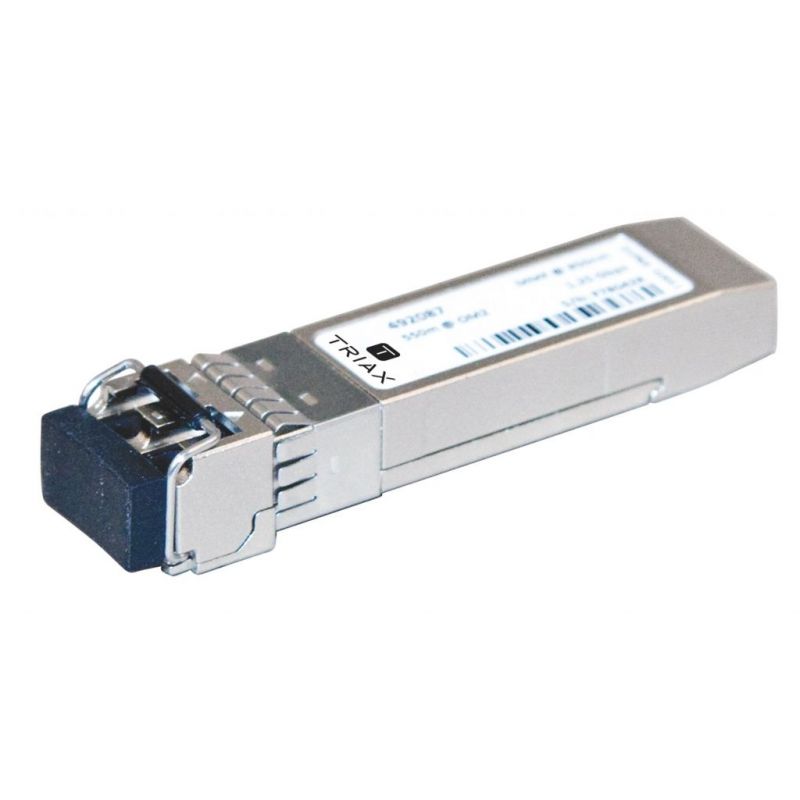

Triax TDX Plug-in SFP Module Fiber LC 850nm
IP output via fibre. It is possible to create your own bouquets of services/TV programs, available in the TDX Pool, and put them together in an IP data stream. You can use fibre cable to transmit your IP stream. Fibre LC - 850 nm. Gigabit Ethernet.
€95.35
Tax included
Reference
triax-492087
Brand
Triax
Triax TDX Plug-in SFP Module Fiber LC 850nm
€95.35
IP output via fibre. It is possible to create your own bouquets of services/TV programs, available in the TDX Pool, and put them together in an IP data stream. You can use fibre cable to transmit your IP stream. Fibre LC - 850 nm. Gigabit Ethernet.
Features
- Operating data rate up to 1.25Gbps
- 850nm VCSEL Laser Transmitter
- 550m with 50/125 μm MMF, 300m on 62.5/125 μm MMF
- Single 3. 3V Power supply and TTL Logic Interface
- Duplex LC Connector Interface
- Hot Pluggable
- Operating Case Temperature
- Standard: 0 +70
- Industrial: -40 +85
- Compliant with MSA SFP Specification
- Digital diagnostic monitor interface
- Compatible with SFF-8472
Applications
- Gigabit Ethernet
- Fiber channel
- Switch to switch interface
- High speed I/O for file servers
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702664920872 |
| OPERATIONAL | |
| Data rate | 1000 |
| Reaching area | 550 m |
| MECHANICAL | |
| Packing QTY | 1 |
| Packaging Height | 0.012 m |
| Packaging Width | 0.015 m |
| Packaging Depth | 0.062 m |
| Net Weight | 0.018 kg |
| Tara Weight | 0.008 kg |
| Total Weight | 0.026 kg |
| Remarks | Fibre LC - 850 nm Gigabit Ethernet over fibre |
IP output via fibre. It is possible to create your own bouquets of services/TV programs, available in the TDX Pool, and put them together in an IP data stream. You can use fibre cable to transmit your IP stream. Fibre LC - 850 nm. Gigabit Ethernet.
