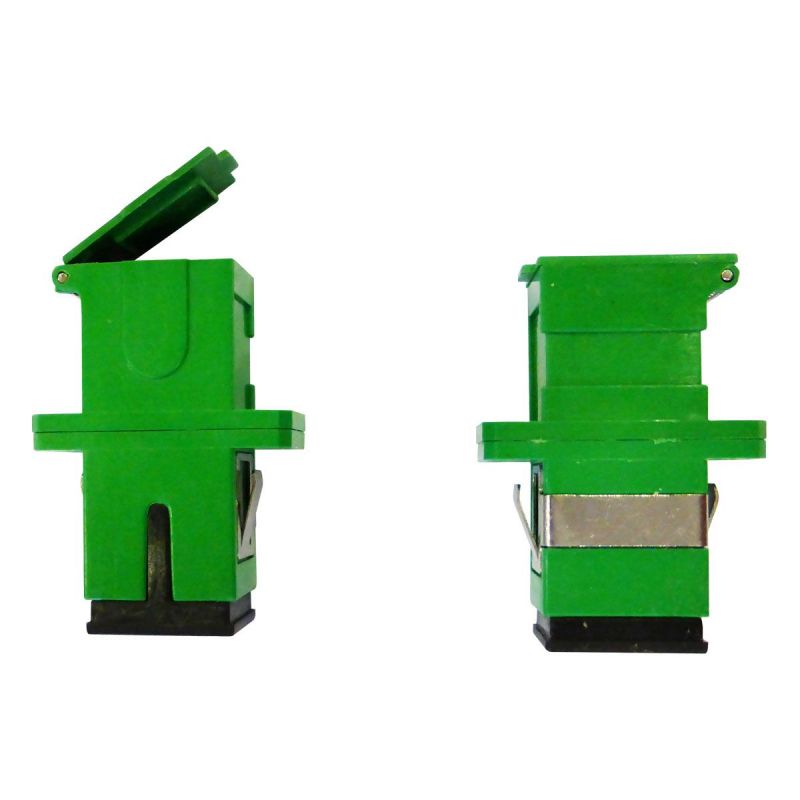

Adapter SC / APC Female-Female

Fiber optic distribution accessory that allows the interconnection of different fiber optic networks. It incorporates a self-locking cover as a protection and greater flexibility of use (more than 1000). High reliability Low return losses thanks to the polished APC. Easy installation thanks to the SC type connector. Effective data transmission

€2.71

Tax included

Reference televes-233203

Brand Televes

Adapter SC / APC Female-Female

€2.71

Description
Product Details

FO distribution attachment that allows the connection from different optical networks. This adapter adds a new auto-blocking cap as protection and higher versatility of use (more than 1,000). Its aplication is extended to a huge range of equipment: main enclosures, split enclosures, user access points, etc.

Features

High reliability.
Low return losses due to the APC polish.
Easy installation due to the SC connector.
Effective data transmission.
Auto-blocking cap to protect the interior of the connector.
Small size.
Conform to standard EN-50173, EIA-50173-A y IEC-61754.

Specifications

Reference / Art. Nr.		233203 / OASCAPCN
Insert losses	dB	≤ 0,15
Return losses	dB	≥ 60
Operating temperature	ºC	-40 ... +120
